Introduction
Measurement Modules
E5281B Precision MPSMU
This section describes typical specification of the medium power source/monitor
unit (MPSMU) for the Keysight E5270B. The E5281B cannot be used with the
E5260A.
• Maximum voltage, current, output power: ± 100 V, ± 100 mA, 2 W
• Minimum range: 0.5 V, 1 nA
• Output/measurement value and resolution: see Table 2-5 to Table 2-8.

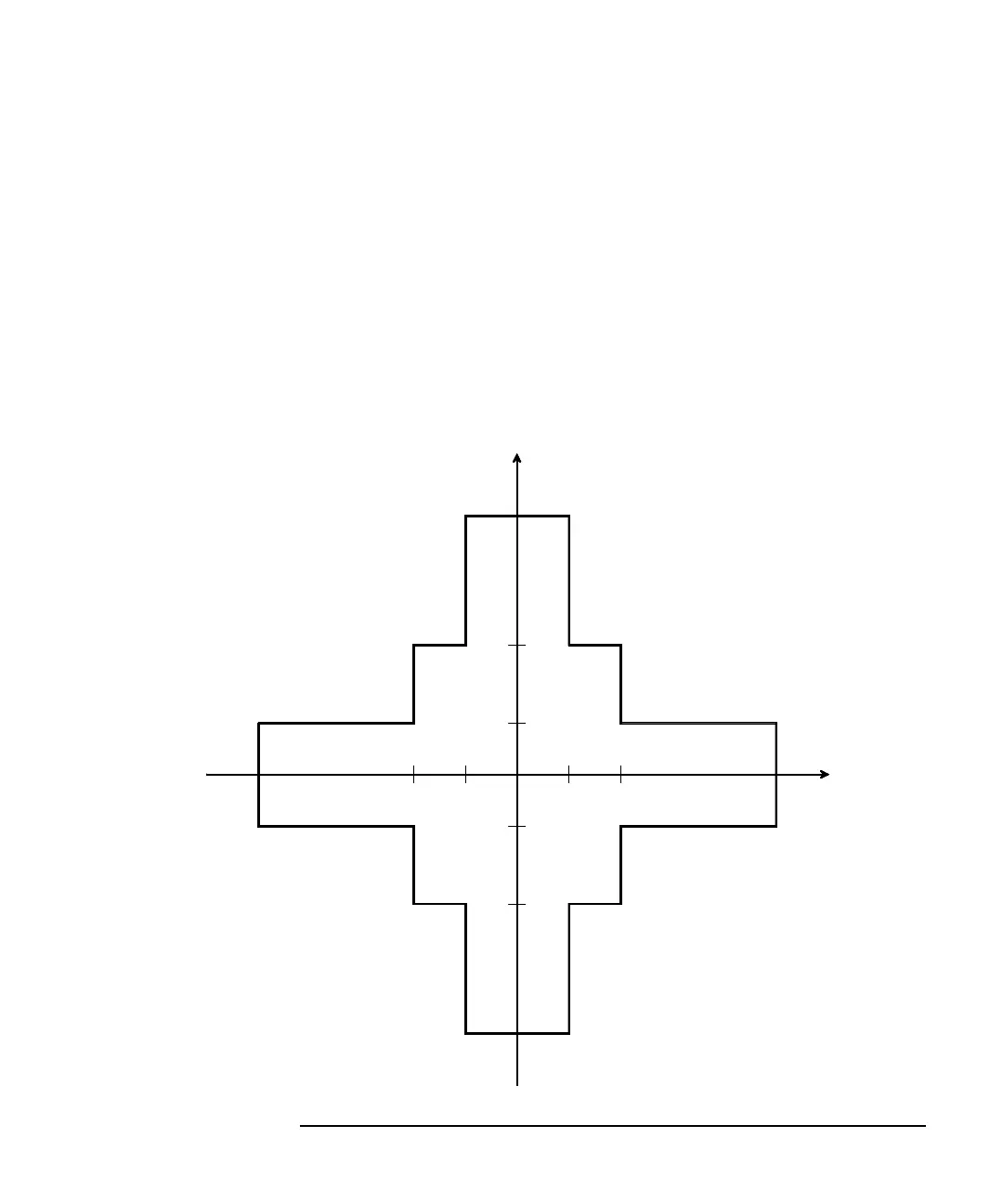

Figure 2-4 MPSMU Output and Measurement Ranges
100 -100
40-40 20-20
100
50
20
-50
-20
-100
Voltage (V)
Current (mA)
