Keysight Technologies E5260 Series User Manual

2-16 Keysight E5260/E5270 User’s Guide, Edition 6
Introduction
Measurement Modules
E5287A Atto Level HRSMU
This section describes typical specification of the high resolution source/monitor
unit (HRSMU) for the Keysight E5270B. The E5287A and the E5288A Atto Sense
and Switch Unit (ASU) cannot be used with the E5260A.
• Maximum voltage, current, output power: ± 100 V, ± 100 mA, 2 W
• Minimum range: 0.5 V, 10 pA (1 pA when the E5288A ASU is used)
• Output/measurement value and resolution: see Table 2-5 to Table 2-8.

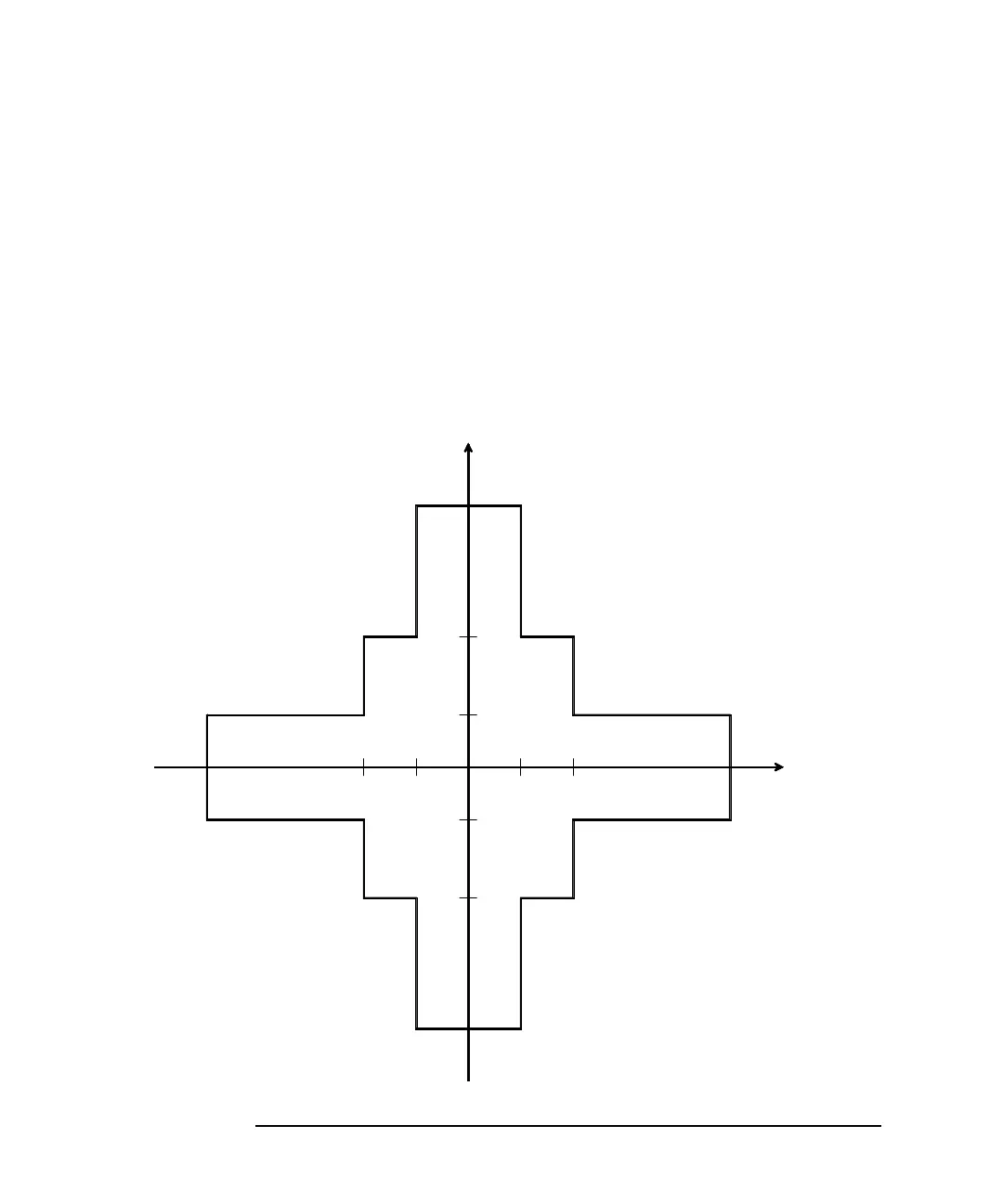

Figure 2-5 HRSMU Output and Measurement Ranges
100 -100
40-40 20-20
100
50
20
-50
-20
-100
Voltage (V)
Current (mA)
