2-6 Keysight E5260/E5270 User’s Guide, Edition 6
Introduction
Front View
• SMU terminals
The source/monitor unit (SMU) has two triaxial connectors, force and sense, for
the Kelvin connections. When you use the 16442B test fixture and Kelvin
connections, up to 3 SMUs can be connected to the 16442B test fixture.
The medium power source/monitor unit (MPSMU) and the high resolution
source/monitor unit (HRSMU) occupy one slot. Hence, the MPSMU and
HRSMU can be installed in any slot. Also, the channel number is same as the
slot number.
The high power source/monitor unit (HPSMU) occupies two slots. Thus, the
HPSMU can be installed in slots 1 to 2, 2 to 3, 3 to 4, 5 to 6, 6 to 7, or 7 to 8.
The channel number is the larger slot number for the slots the HPSMU occupies.
For example, if a HPSMU occupies slots 5 and 6, the channel number for the
module must be 6. Channel numbers 1 and 5 are not available for the HPSMU.

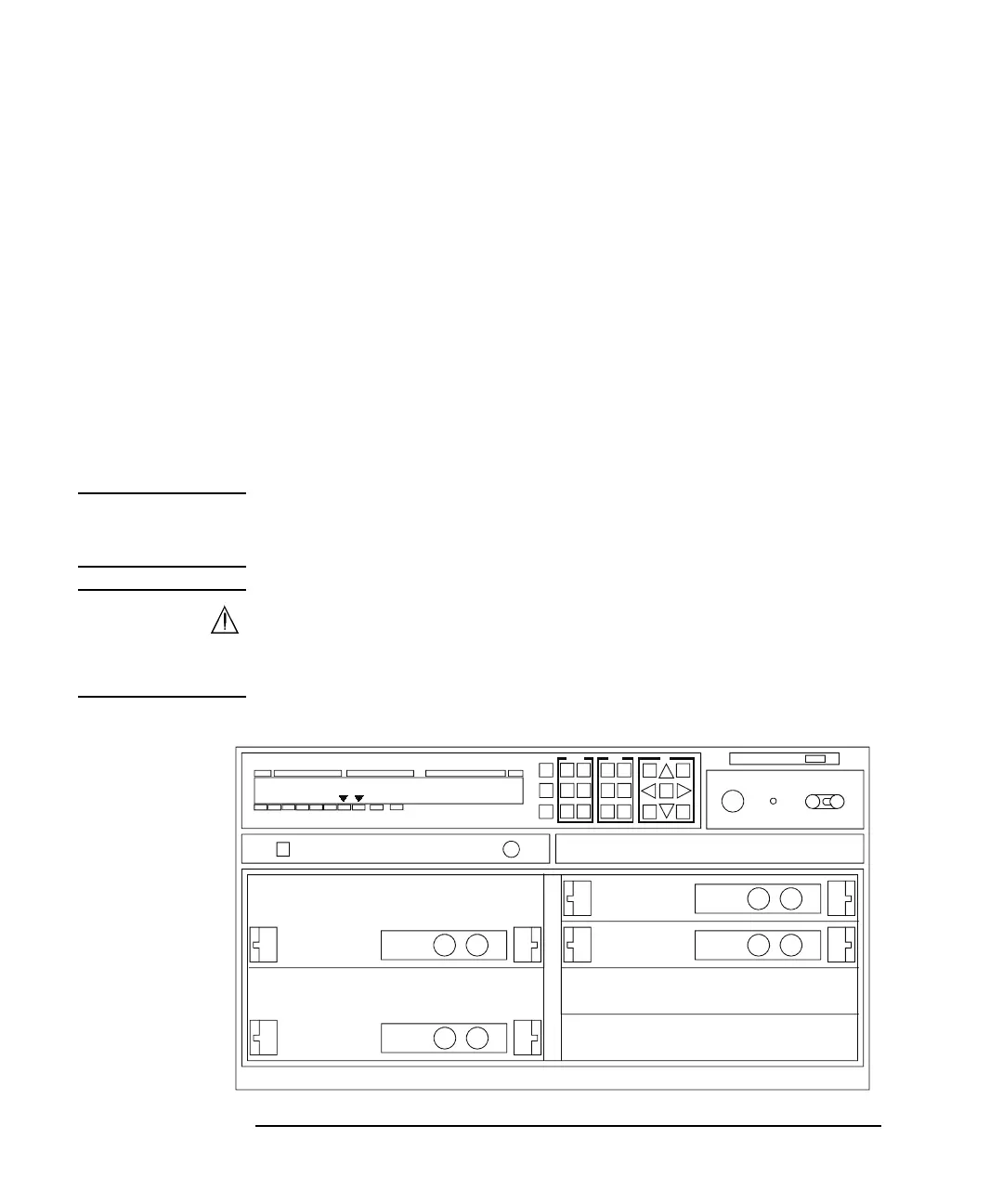

NOTE The Keysight E5270B shown in the following figure installs the HPSMU in the slots
1 to 4, and the MPSMU in the slots 5 to 6. Then the available channel numbers are 2
and 4 for the HPSMU and 5 and 6 for the MPSMU.
WARNING To avoid electrical shock and instrument damage, turn the instrument off
before connecting or disconnecting measurement cable.
Mettez la machine hors tension pour fixer le connecteur ou pour retirer le
connecteur de l’unité centrale.
Meas Value #1
Meas Value #2 Setting Parameter
Stat
OUT: 1.234mV
CPL: 1.234mA
C 1.23456mA 1.23456mV
Remo t e
A 1 1
Shift
Lock
Meas
Tri gger
Error
Integ
Repe at
Output
S-ch
M-ch
Out
Range
Out
Ch
On/
Off
OUT
Value
V/I
CPL
Value
Meas
Range
Meas
Ch
Single
Meas
Item
Repeat
Integ
Local
Menu
Zero
Volt
Shift
Fast
Def
Value
Exit
Enter
Reset
Cal/Test
Restore
AD
Abort
IntegTime
SerRes
Filter
Measure
Output
Edit
HIGH VOLTAGE
Interlocck
Line
GNDU
Zero
Check
Circuit
Common
E5280B
E5270B
E5280B
E5281B
E5281B
AUX On/Off
To Next Page
