Keysight E5260/E5270 User’s Guide, Edition 6 3-25
Installation
Mounting Connectors

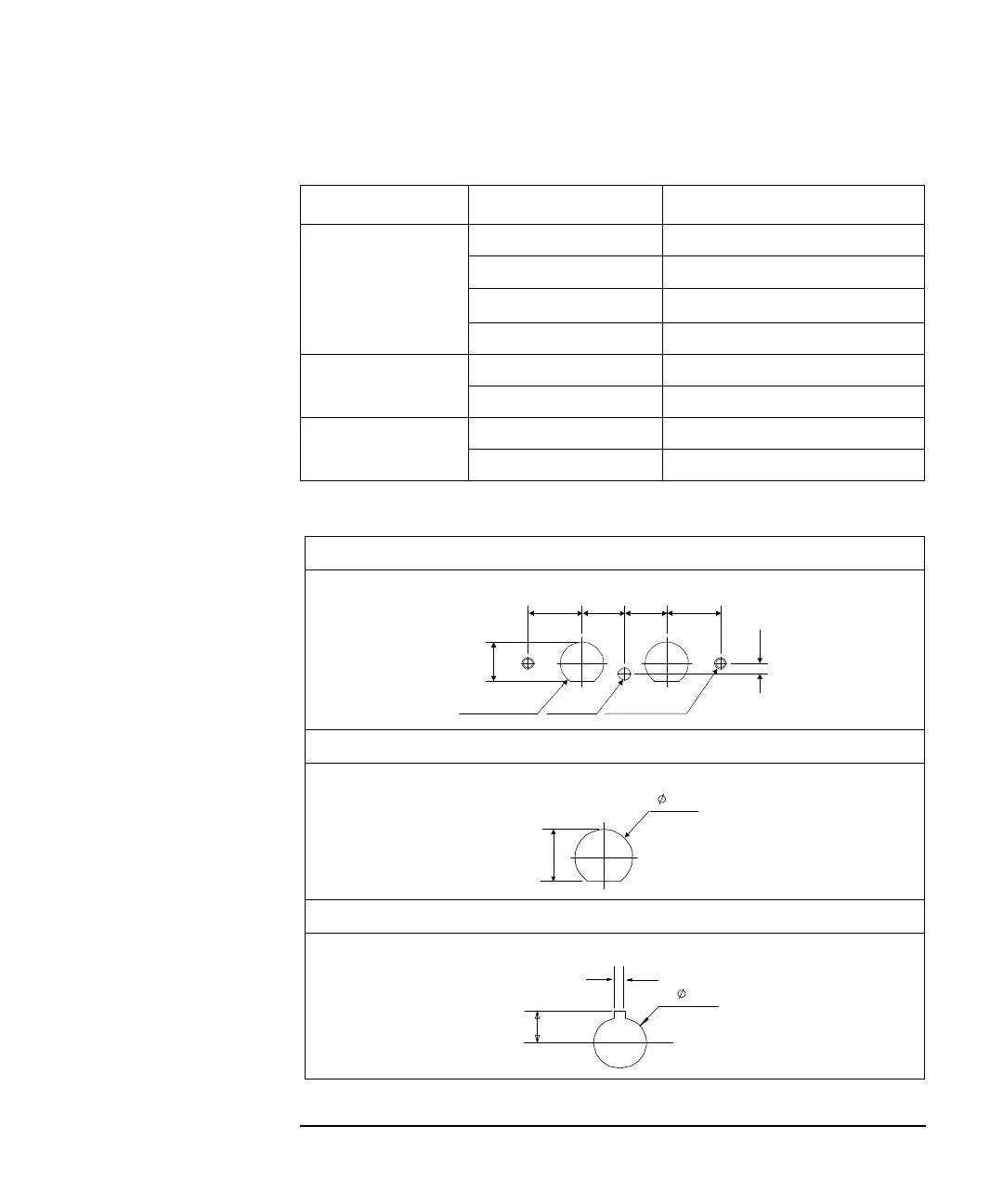

Table 3-3 Recommended Parts
Table 3-4 Dimensions of Connector Holes
Usage Keysight Part No. Description
Making an interlock
circuit
1252-1419 Interlock Connector (6 pin, female)
N1254A-402 Switch
1450-0641 LED (V
F
≅ 2.1 V @ I
F
= 10 mA)
8150-5680 Wire (24 AWG, 600 V, 150 °C)
Connecting GNDU
to DUT
1250-2457 Triaxial Connector (female)
8121-1189 or 8150-2639 Coaxial Cable or Wire
Connecting SMU to
DUT
1250-2457 Triaxial Connector (female)
8121-1191 Low Noise Coaxial Cable
Kelvin Triaxial Connector (in mm)
Triaxial Connector (in mm)
Interlock Connector (in mm)
2 − ∅11.3 ∅3.2 2 − M3 x 0.5
14 11 11 14
2.8
10.3
11.3
10.3
1.8
8.2
5
.
1
