Mounting Connectors
NOTE Low-Noise Coaxial Cable
For the extended measurement paths over the connector plate, use low-noise coaxial
cable (Keysight part number 8121-1191). This cable can maximize the guard effects
and minimize the impression of the external noise.

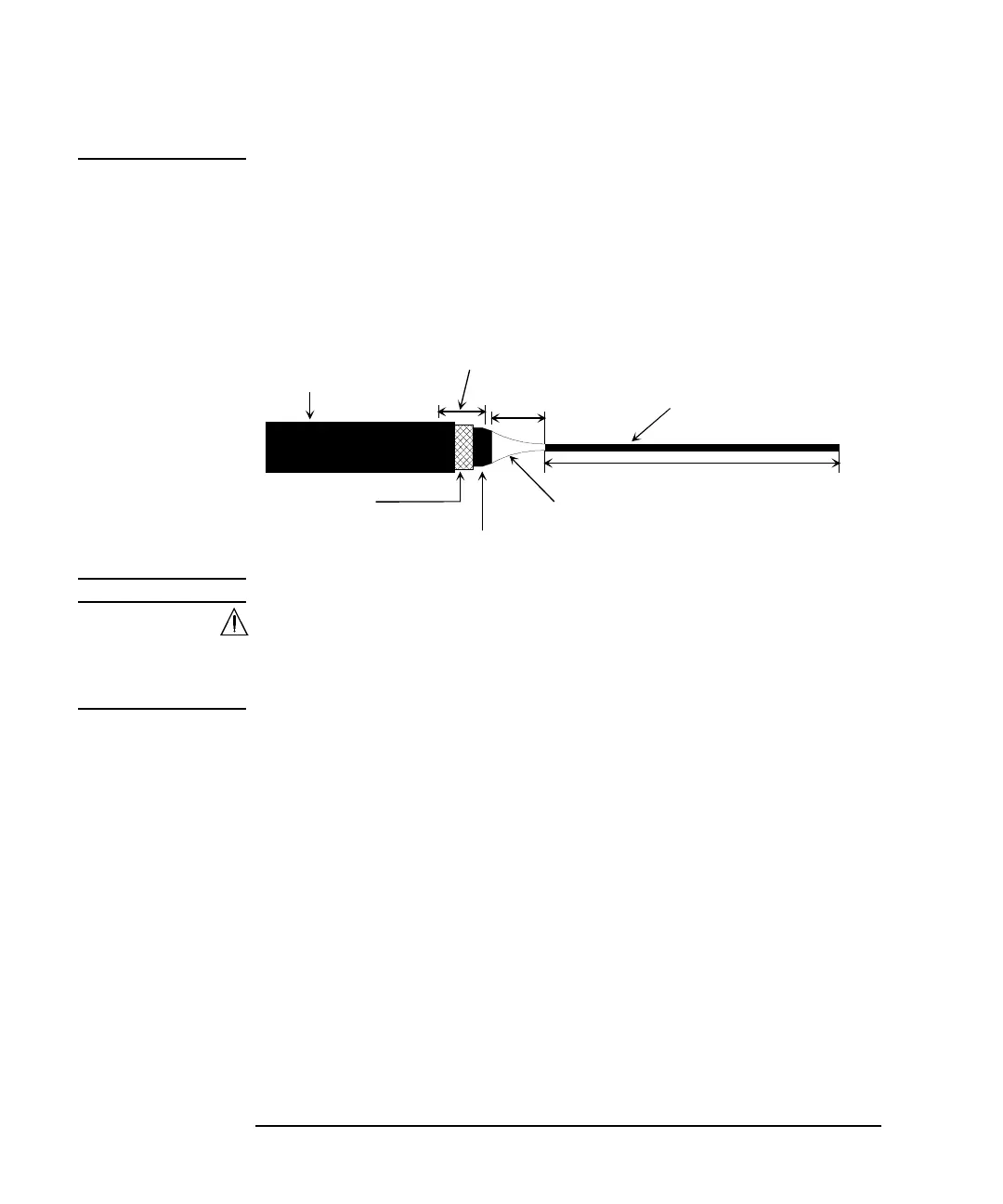

Following figure shows the cutting example of this cable. Key point is the isolation
between the conductive layer and the center conductor. So, cut and trim the end of
the cable as shown in this figure by using a cutter and so on.
WARNING Wrap an insulator around the naked conductors of coaxial cable to avoid
touching it.
Enroulez un isolant autour des conducteurs dénudés du câble coaxial afin
d'éviter de les toucher.
Insulator (black)
Outer conductor
(for Guard signal)
Insulator (clear)
Conductive layer (black)
Center conductor
(forForce/Sense signal)
approx. 10to 15 mm
min 2 mm
Coverhere using sleeve
