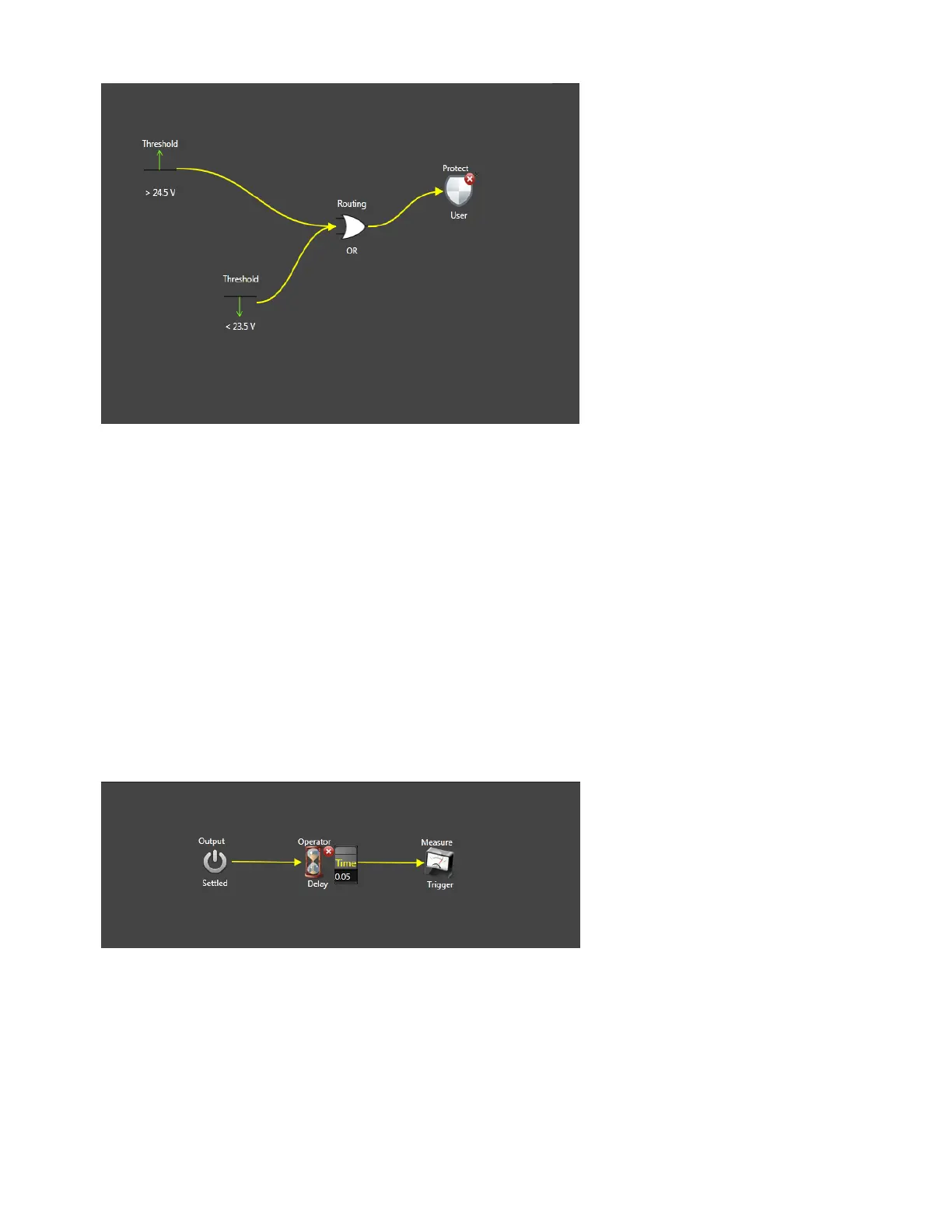

Example 4 Create a trigger source that triggers a measurement 50 milliseconds after the output has
settled.
1. Select the Output icon from the Source list to place it onto the work area. Select Settled from the
Output dropdown list.
2. Select the Delay operator from the Operator list to place it onto the work area. Enter a 0.05
second delay time in the Time field of the dropdown list.
3. Move the Output icon toward the input of the Operator icon until the yellow connection line
appears.
4. Select the Measure icon from the Target list to place it onto the work area.
5. Move the Measure icon toward the output of the Operator icon until the solid yellow connection
line appears.
Keysight N6900/N7900 Series Operating and Service Guide 197
5 Using the Power Assistant Software
