Ch.3 Sequence of Examination
< 43 >
REGIUS Console CS-3 OPERATION MANUAL Ver. 1.10 2005.2

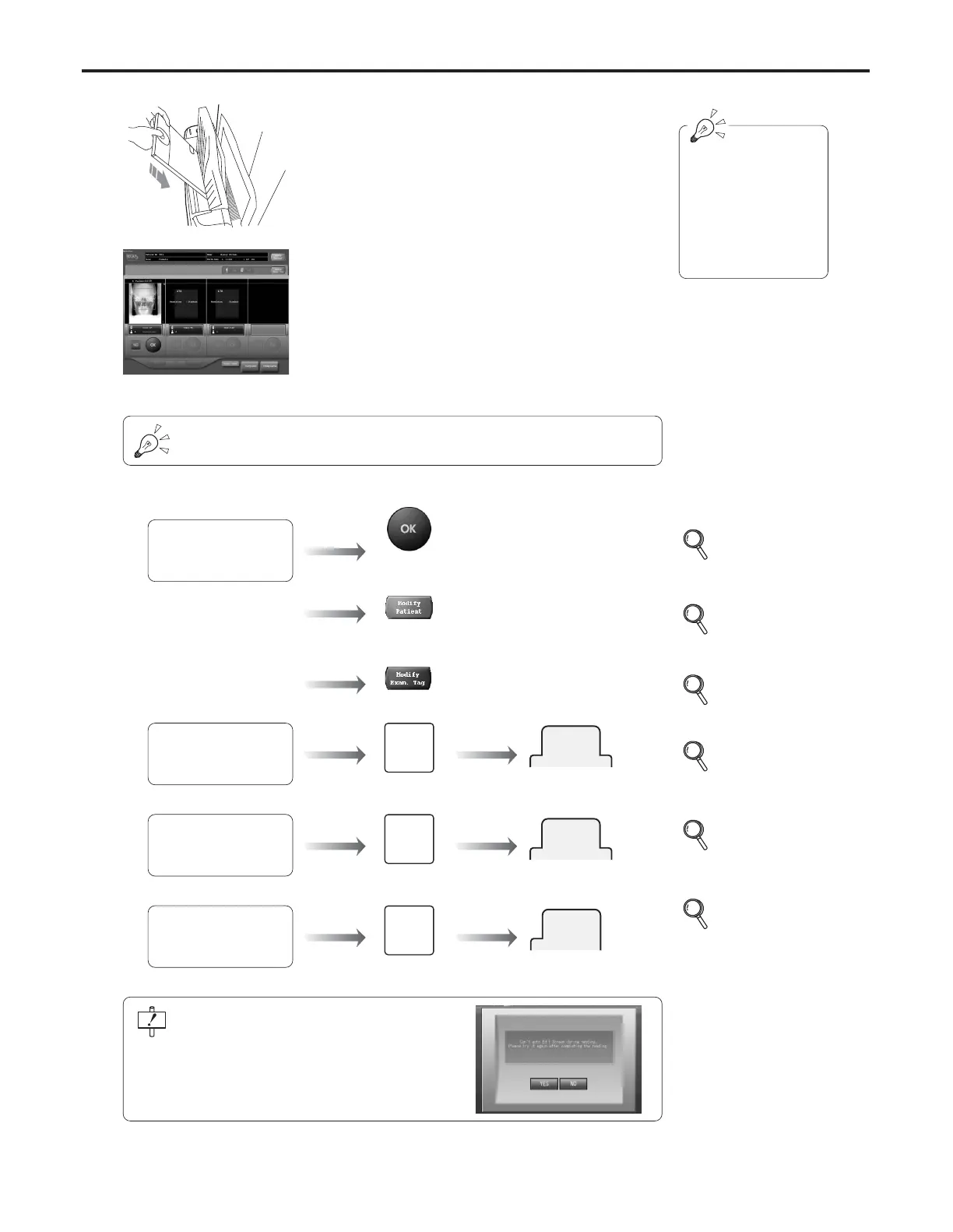

4 Insert the cassettes which have completed the
exposure process into the insertion slot of the
cassette reader.
• Cassettes may be inserted in any order.
• The image read will be displayed above the order
with bar code registration.
• The S-value of the image read will be displayed
above the image display field.
The description for the
use of bar code reader
in the left is an example
for a single bar code
reader. However, it can
be also applied to a
multi-bar code reader.
The automatic confirmation function cannot be used in the multiple-image format.
Once the cassette is inserted into the reader, no
operation may be carried out for the image.
When the message shown right is displayed, touch
[YES] to close the message.
p.45, 46
Image Output
(Single-Image Format)
p.95
Patient Data
Amendment Screen
p.98
Body Part/ Parameter
Selection Screen
p.103
Detailed Data
Setting Screen
(Image Processing)
p.111
Detailed Data
Setting Screen
(Print Format)
p.118
Detailed Data
Setting Screen
(Overlay)
Following this screen:
Select the target
order from the
order list.
Amending patient data
Amending exposure parameters/
Adding or deleting the order
Amending image processing
Select the target
order from the
order list.
Select the target
order from the
order list.
Amending print format
Amending overlay
