2. Front and Rear Panels

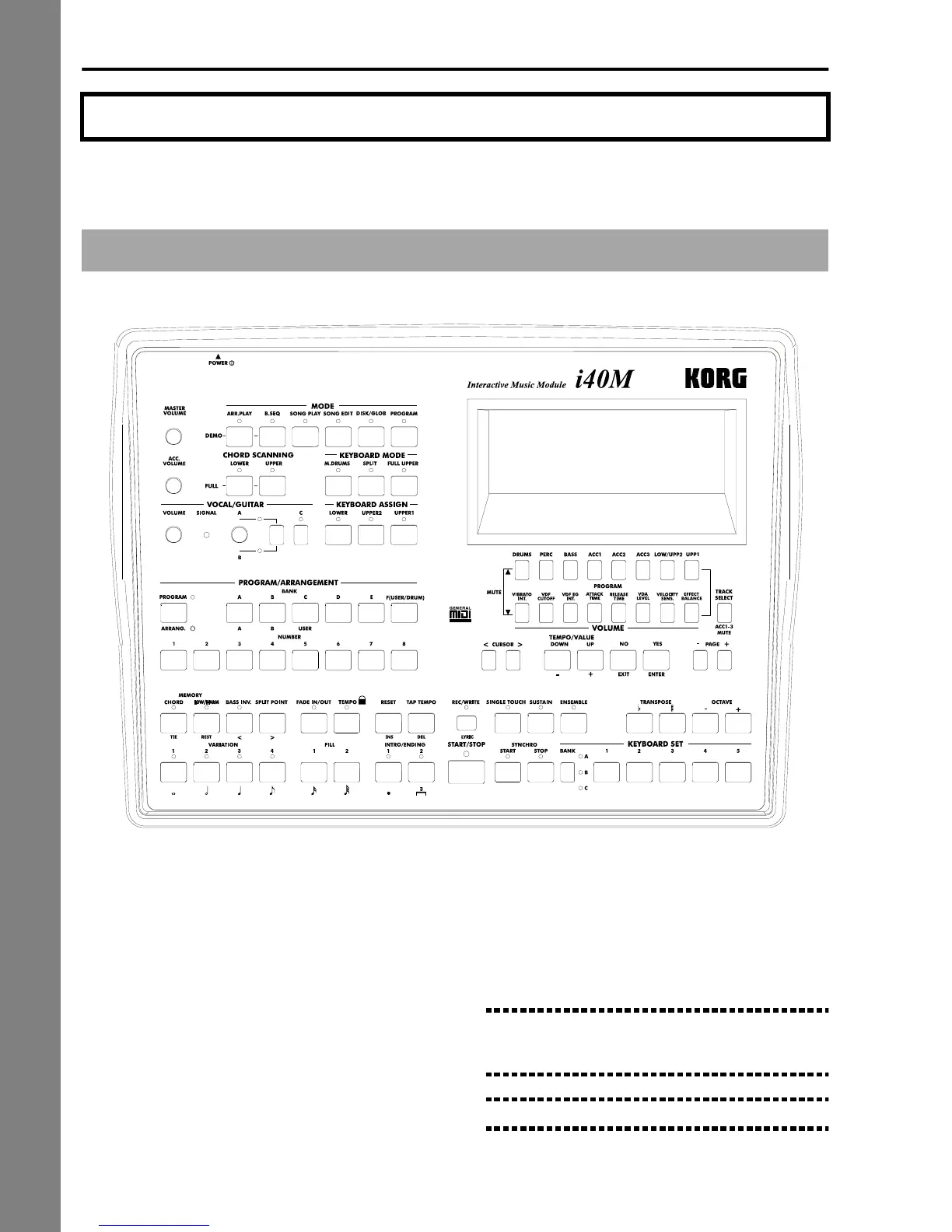

Front Panel
1 Display
The editing pages, parameters and messages for the
user will appear in this display.
2 Floppy disk drive slot
3.5 inch double-sided double density (2DD) or dou-
ble-sided high density (HD) floppy disks can be
inserted in this drive. You can use Korg i-series for-
matted floppy disks and standard Ms-Dos® format-
ted floppy disks.
The i40M incorporates a disk drive without auditory
feedback (i.e. the “click” when the disk has been
pressed all the way in).
3 Disk eject button
Press this button to remove a floppy disk from the
drive. If pressing this button does not eject the disk,
do not try to force it out. Contact your dealer or
nearest Korg Service Station.
4 MASTER VOLUME knob
Output level of internal sound generation (OUTPUT
outlets and headphones).
This control does not adjust the level of the VOCAL/
GUITAR section (input signal through INPUT-IN).
Warning: Volume that is too high can cause serious
harm to your hearing. Keep the volume at a moderate
level.
Note: At higher volumes the sound can be distorted.
