3. Remove the screw.
4. Remove the drum unit by pulling it for-
ward.
*: Be careful to not touch a drum or not to
hit.
5. Check or replace the drum unit and refit
all the removed parts.
6. When replacing the new unit,proceed
as follows:
1)Performs maintenance mode U110
(Drum Cnt) (see page 1-3-47).

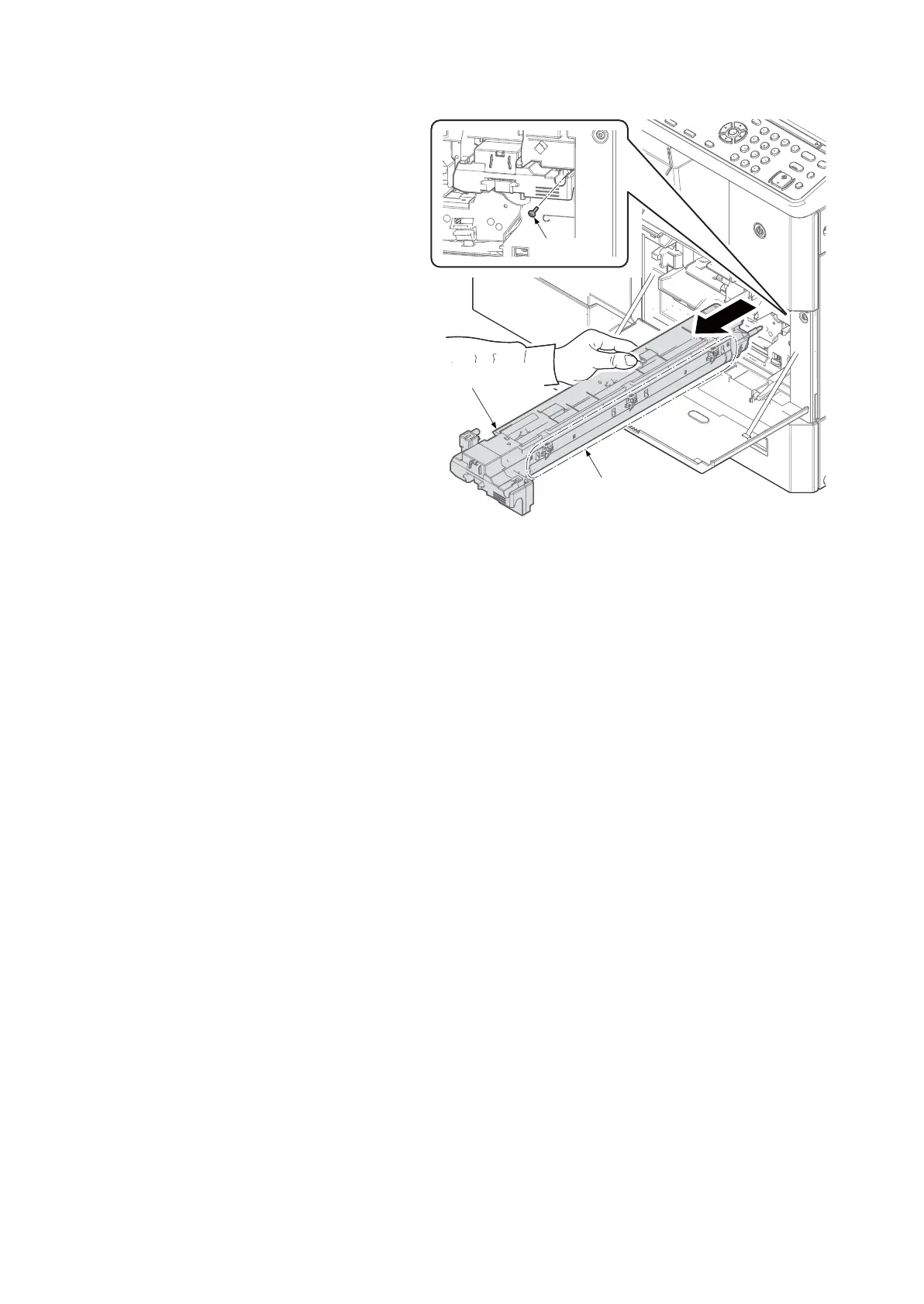

Figure 1-5-70
Screw
Drum unit
Drum
