(1-2) Detaching and refitting the DP paper feed roller and DP separation pulley
Procedure
1. Open the DP top cover.

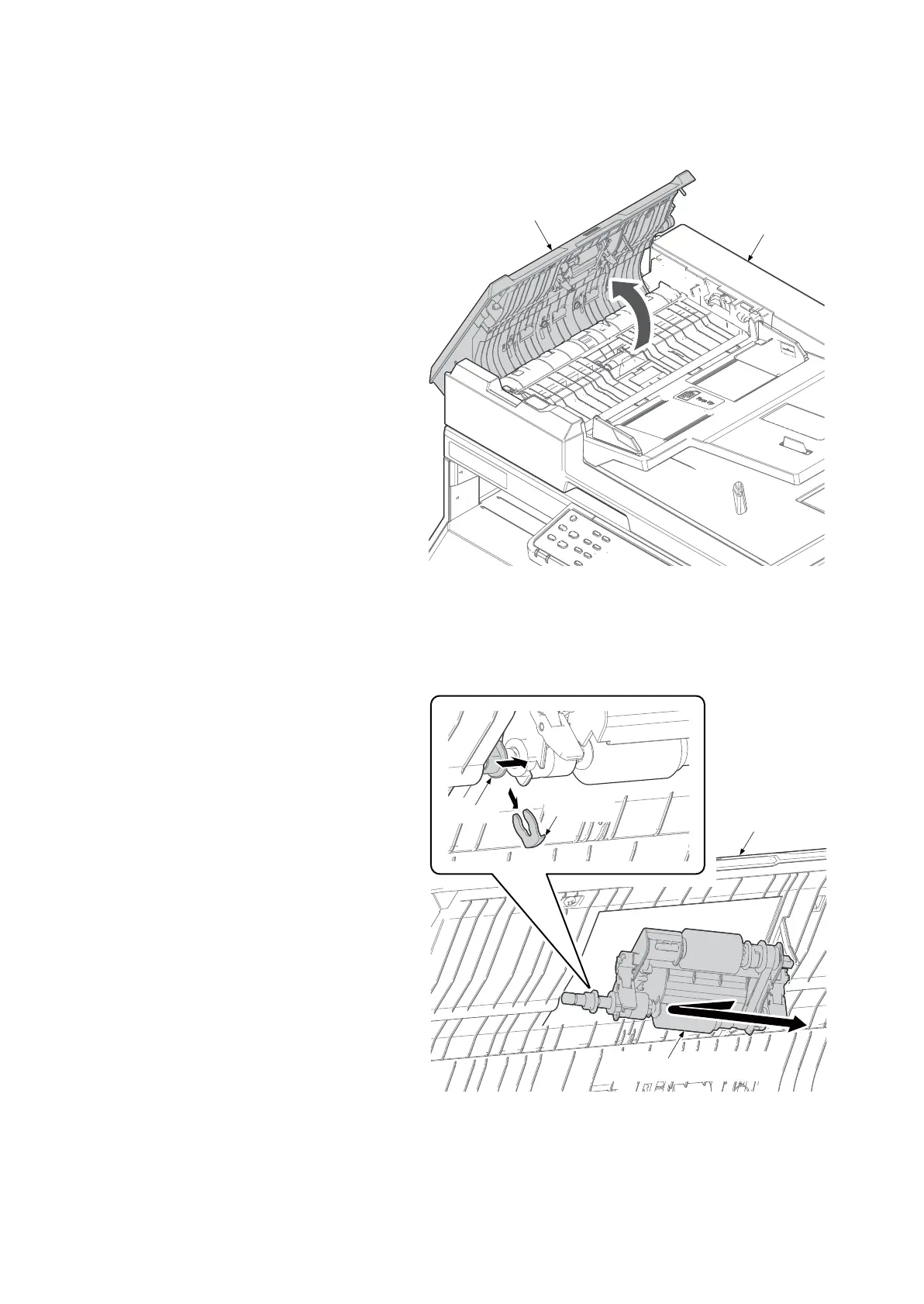

Figure 1-5-153
2. Remove the stop ring and then slide the
bushing.
3. Remove the paper feed assembly by
sliding it from the DP top cover.
Figure 1-5-154
DP
DP top cover
Stop ring
Bushing
Paper feed assembly
DP top cover
