(12)Detaching and refitting the language sheets
Procedure
1. Raise the operation panel cover using a
flat screw driver and then remove it by
sliding.

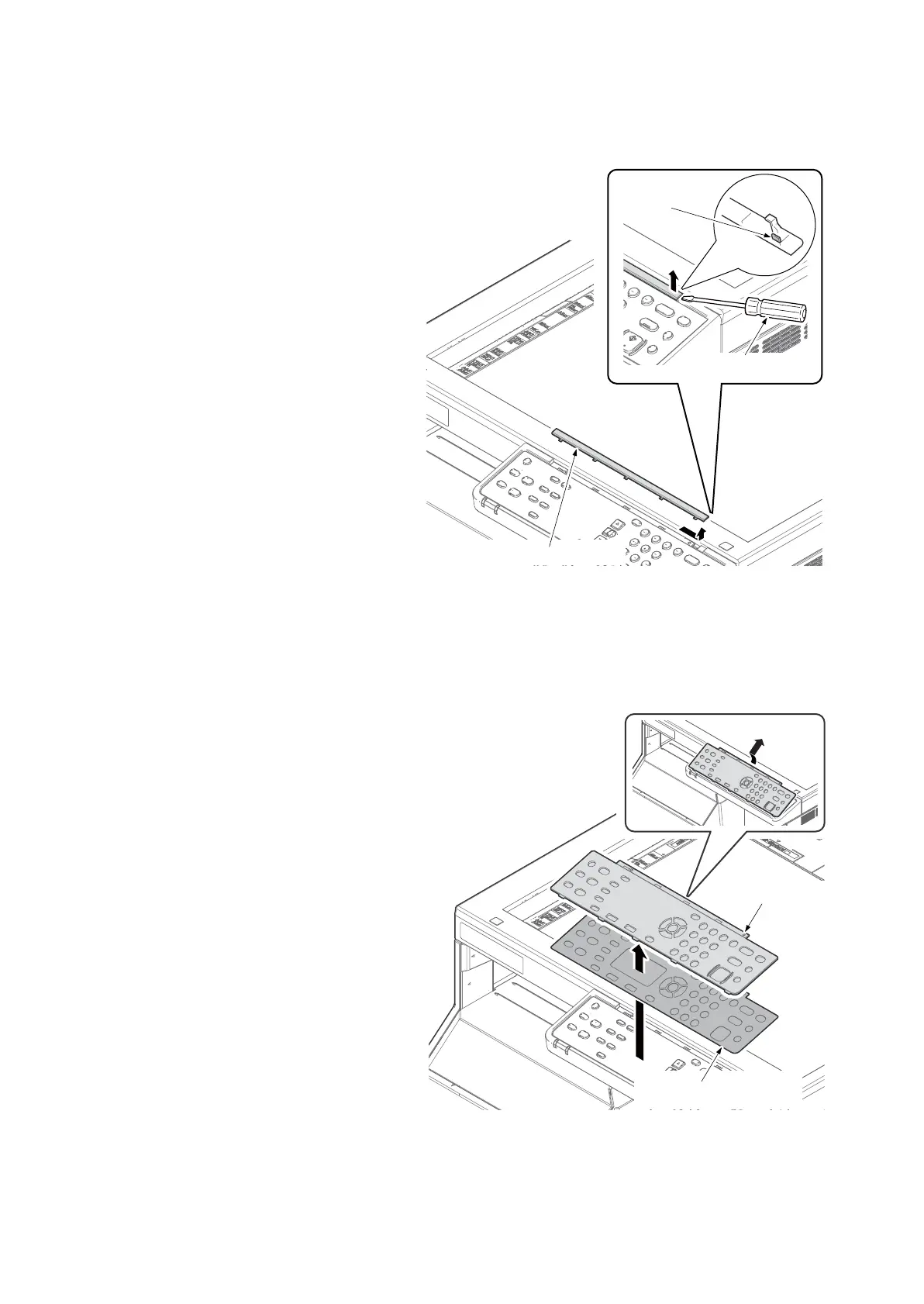

Figure 1-5-143
2. Remove the clear panel.
3. Remove the operation panel sheet.
4. Check or replace the operation panel
sheet and refit all the removed parts.
Figure 1-5-144
Flat screwdriver
Projection
portion
Operation panel cover
Clear panel
Operation panel sheet
