Kyocera DP-480

2NC/2NF/2NG/2NN/3P7/3P8/3P9
1-5-84
1-5-11 Document processer (option)
(1) Original feed section
The original feed section consists of the parts shown in figure. An original placed on the original tray is con-
veyed to the original conveying section. Original is fed by the rotation of the DP forwarding pulley and DP
paper feed roller.

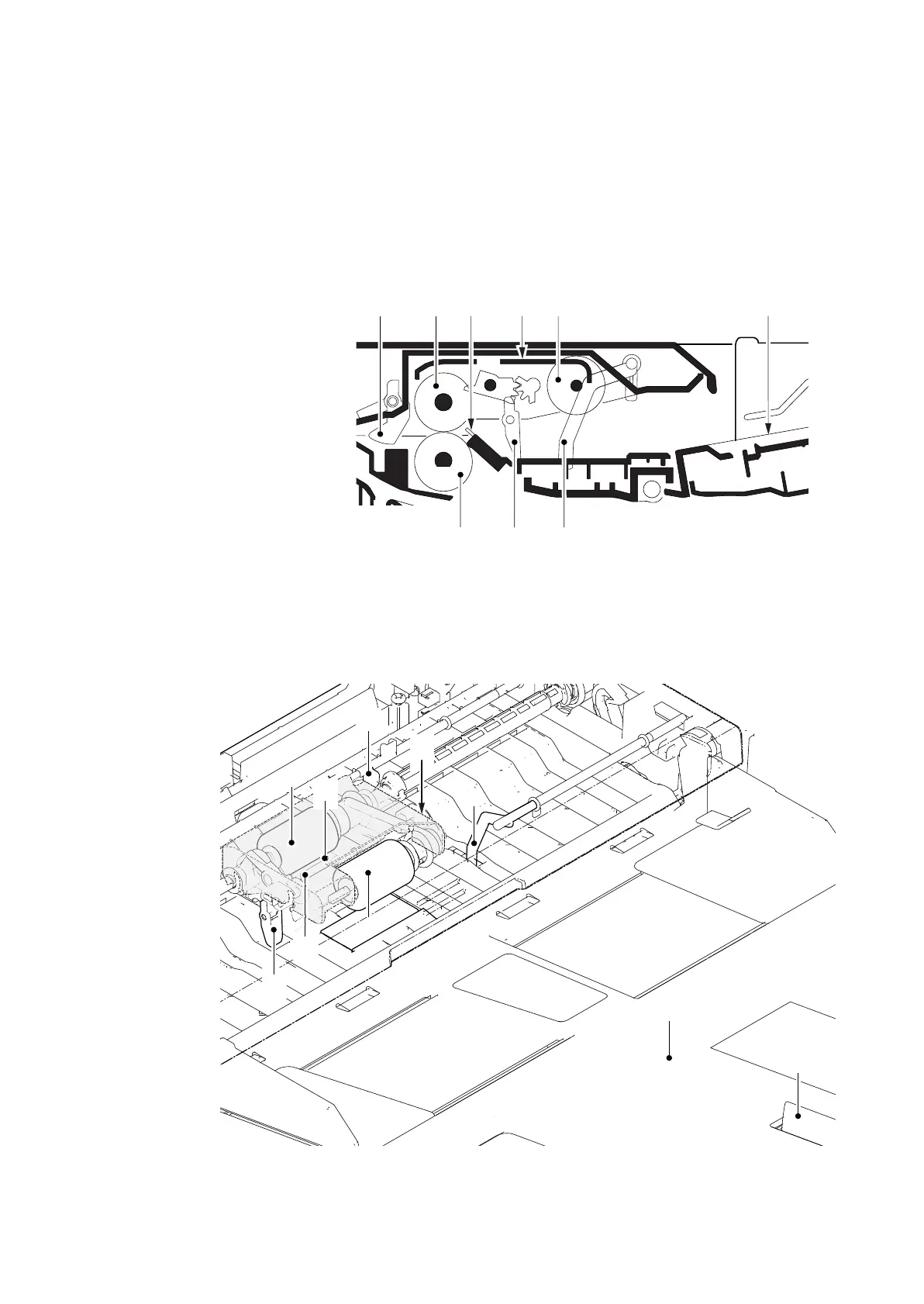

Figure 1-5-148
Figure 1-5-149
35
8
29
4 67
1
[Component formation]
1. DP pickup pulley
2. DP paper feed roller
3. DP feed holder
4. DP separation pulley
5. Pre separation pad
6. Acutuator
(DP original sensor)
7. PF stopper
8. Original tray
9. Acutuator
(DP original feed sensor)
10. Acutuator
(DP original length switch)
6
9
7
5
2
4
1
3
8
10
