(3) Detaching and refitting the paper feed holder
Procedure
1. Pull out the cassette forward.

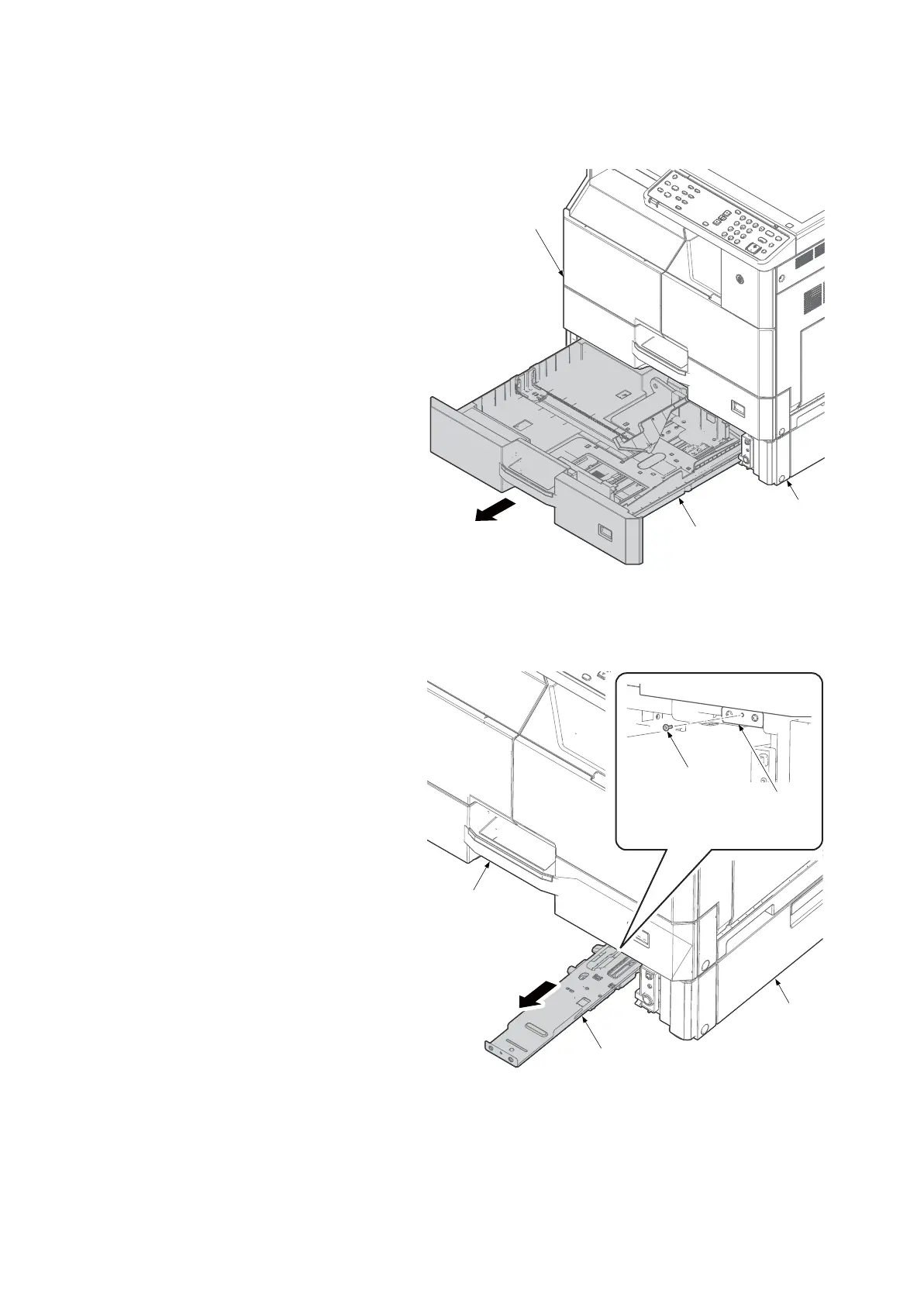

Figure 1-5-176
2. Remove the screw of fixing the top PF
paper feed assembly.
3. Pull out the top PF paper feed assembly
forward from the main unit.
Figure 1-5-177
Cassette
Main unit
PF unit
Top PF peper feed assembly
Main unit
PF unit
Screw
Top PF paper
feed assembly
