2NC/2NF/2NG/2NN/3P7/3P8/3P9
2-2-24
3. Remove the connector from the high
voltage PWB.
4. Remove three screws and unhook the
hook and then remove the high voltage
PWB.
5. Check or replace the high voltage PWB
and refit all the removed parts.

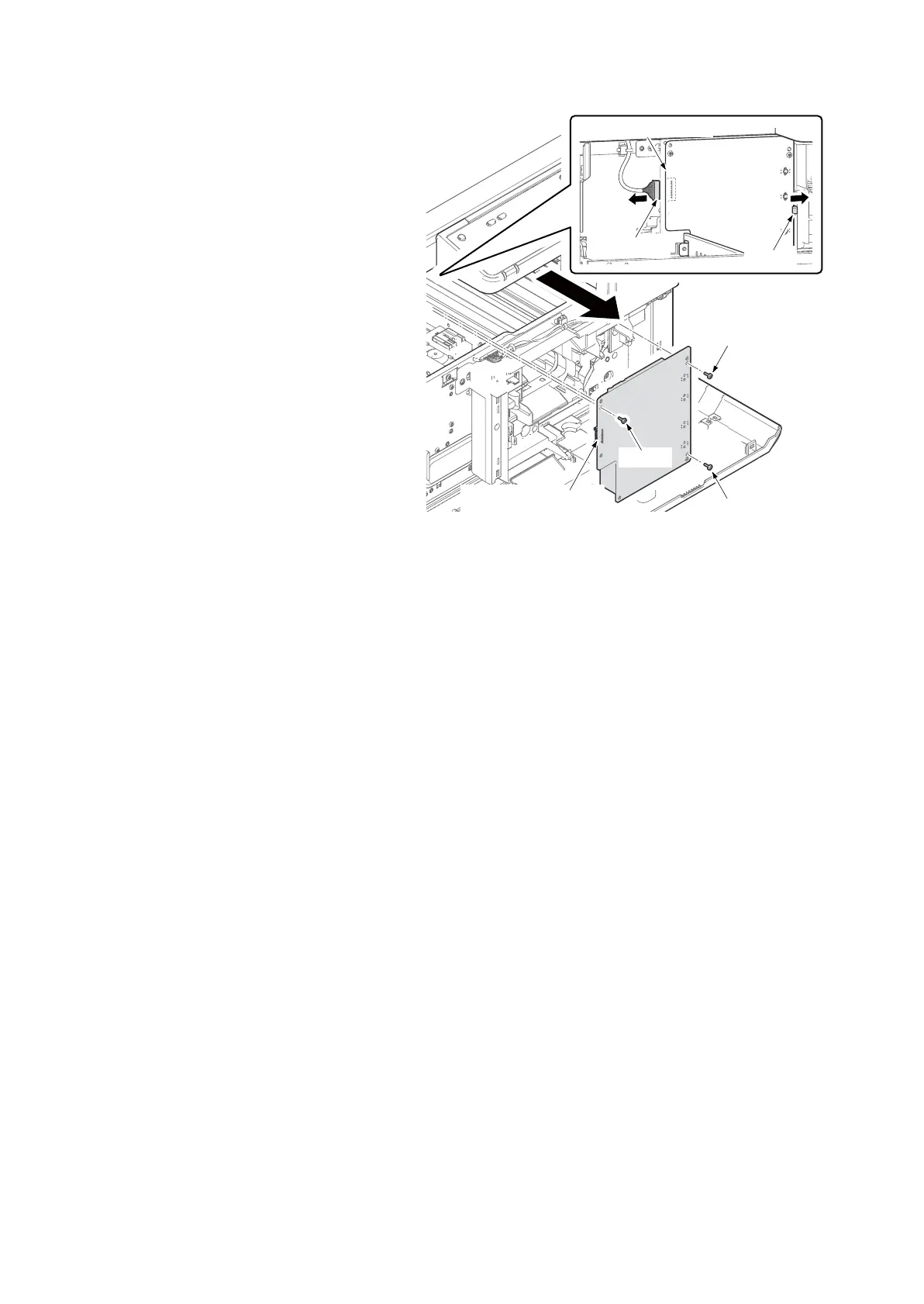

Figure 2-2-25
Connector
Screw
Screw
Screw
High voltage PWB
High voltage PWB
Hook
