Labrie EXPERT - Wear Pads and Sliding Shoes

General Maintenance 103

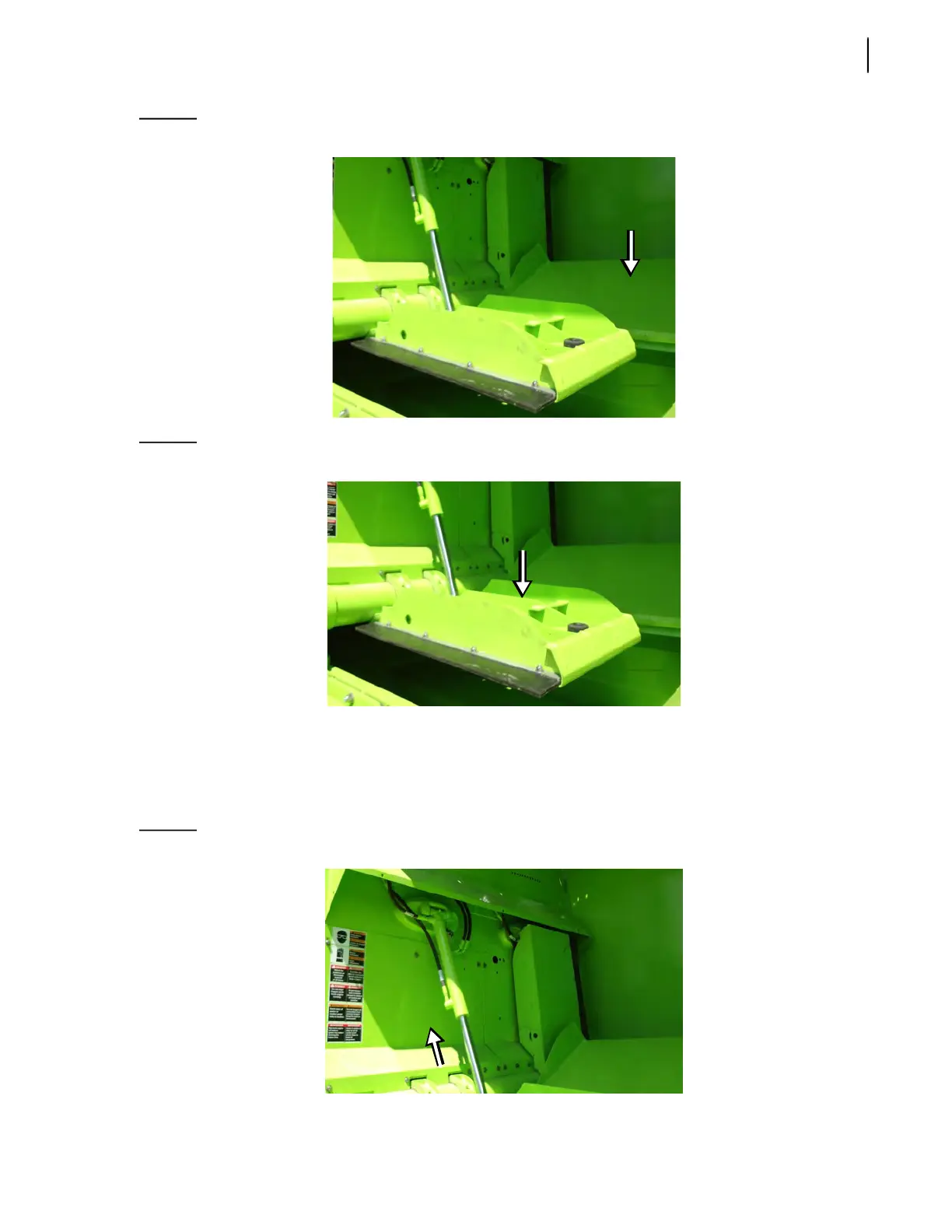

Figure 3-124 Chute tilted towards streetside
Figure 3-125 Crusher panel in lowered position
4. Turn OFF the hydraulic pump and the engine.
5. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
6. Remove the right-hand side protective panel that is fixed to the rear hopper wall (see Figure
3-126).
Figure 3-126 RHS protective panel
