126 General Maintenance
2. Slide the cylinder into position behind the packer through the clean-out trap.
3. Align the cylinder with the front pin hole.

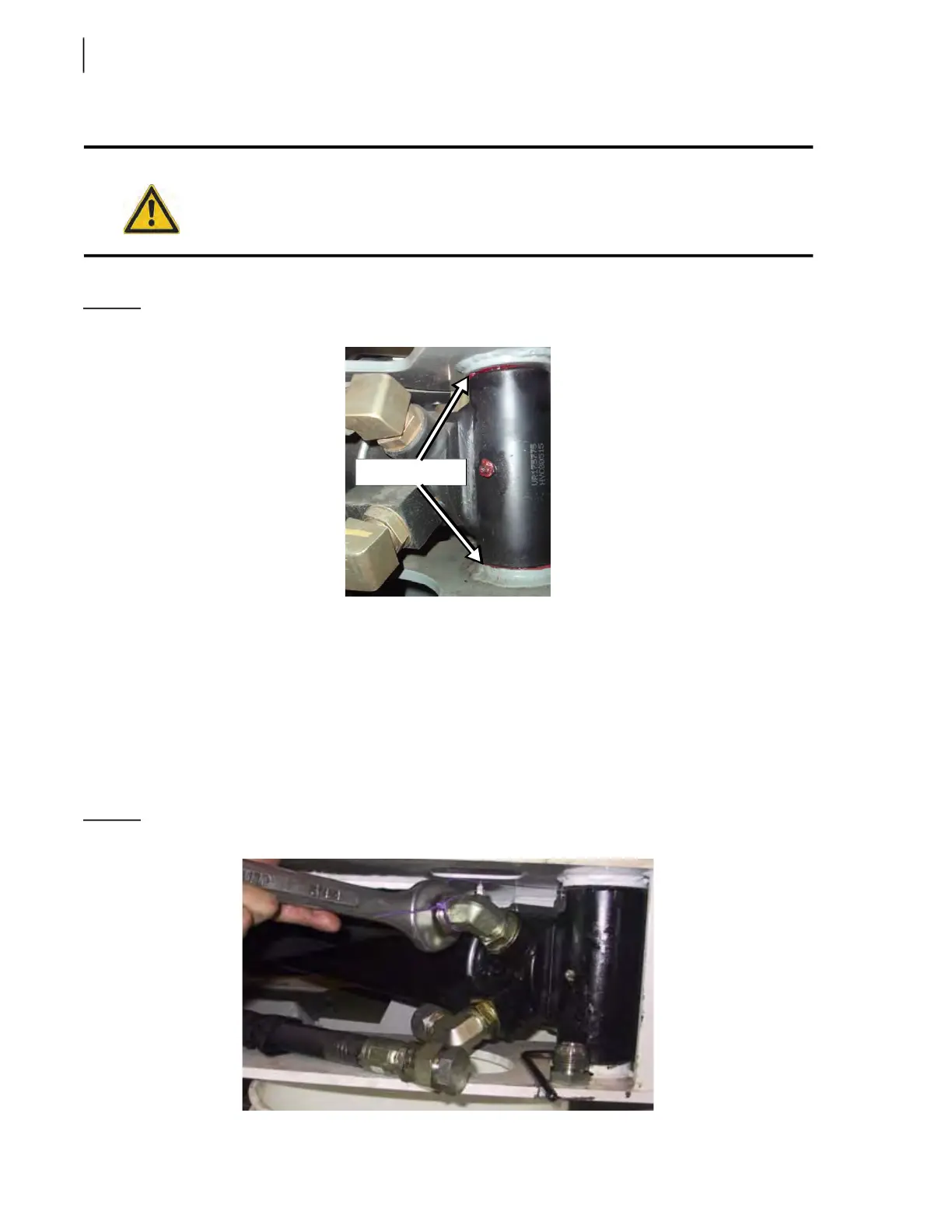

Figure 3-166
Cylinder aligned with front pin hole
4. Reinstall the front cylinder pin and its 4 bolts (see Figure 3-162).
5. Tighten all 4 bolts.
6. Reconnect both hoses to the cylinder fittings. To do so:
6 a. Place a bucket under the hoses to collect oil that may spill out.
6 b. Remove the caps from the hoses and connect the hoses to the appropriate fittings.
Be careful to reconnect hoses to proper fittings. Use the identification method from Step 7
of the preceding procedure to help you with this task.
6 c. Tighten both cylinder hose fittings.
Figure 3-167
Tightening hose fittings
Caution!
This task must be performed by 2 people.
Front pin hole
