130 General Maintenance
9. Turn OFF the hydraulic pump and the engine.
10. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).

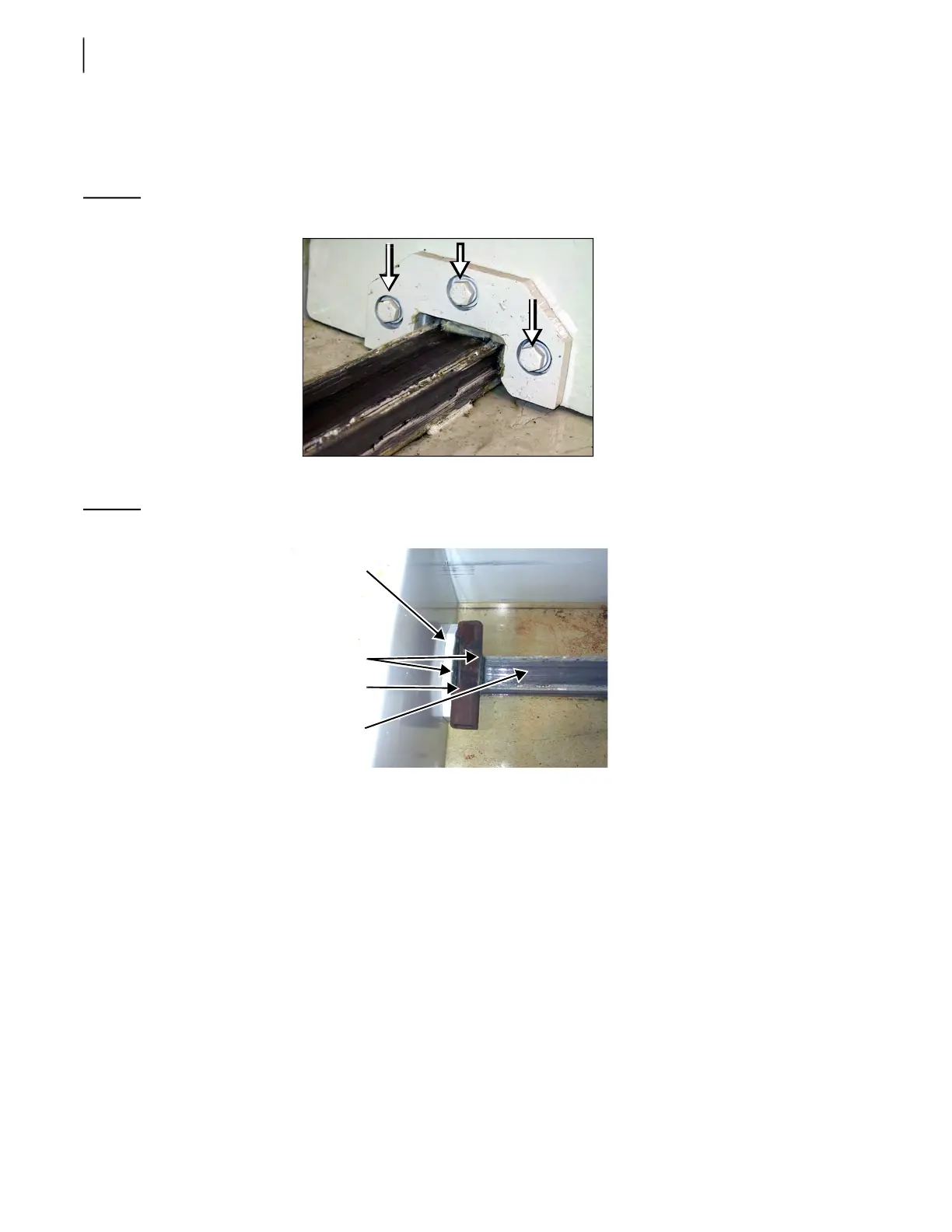

11. Remove all 3 bolts retaining each sliding shoe (see Figure 3-171).
Figure 3-171
Retaining bolts
12. Tack weld a piece of steel tubing to the floor rail and to the front of both sliding shoes.
Figure 3-172
Tack welding
13. Start the engine, engage the hydraulic pump, and press the yellow button to slowly retract the
packer.
The sliding shoes will come out under the packer as it is retracting (see Figure 3-173).
Sliding shoe
Floor guide
Steel tubing
Welds
