144 General Maintenance
15. Remove the lower part of both side rails (one on each side of the hopper) by using a 5/16-inch
Allen wrench and a 3/4-inch wrench (see Figure 3-194).
There are 6 bolts in total on each side.

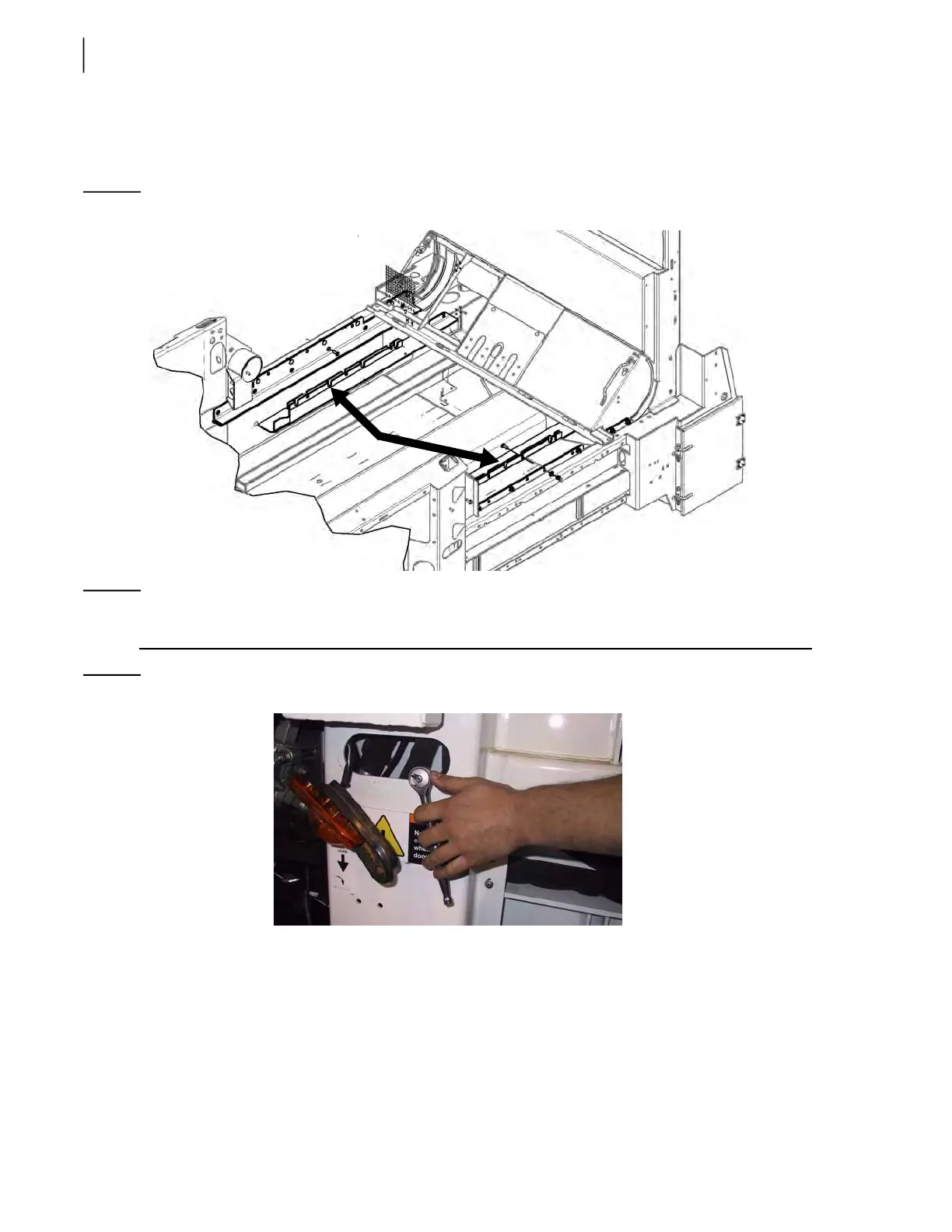

Figure 3-194
Lower part of side rail
NOTE: In order to get access to the last of the 6 bolts that hold the lower part of the side rail in place,
remove the midway flashing lights located on each side of the truck.
Figure 3-195
Flashing light removed
NEXT: REPLACING AND ADJUSTING UPPER WEAR PADS: see Replacing and Adjusting
Upper Wear Pads on page 163.
C: Co-Mingle Units W/ Loading Arm
Make sure you go through the following steps:
1. Start the engine and engage the hydraulic pump.
To Next Page
