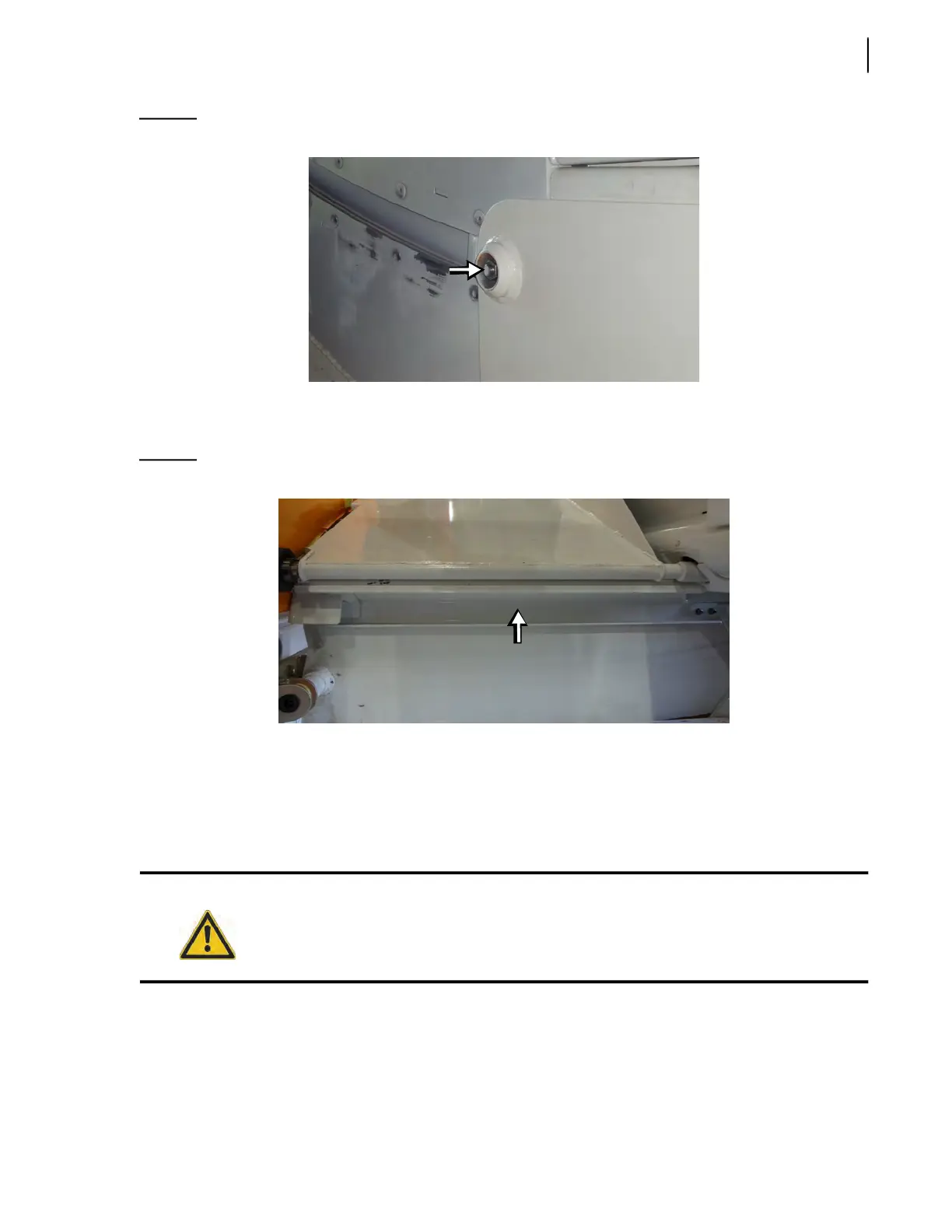

General Maintenance 147
Figure 3-200
5/8” nut
9. Remove the divider guard.
4 bolts are to be taken out to remove the divider guard (2 on each end).
Figure 3-201
Divider guard
10. Remove the chute (see Figure 3-202). To perform this task, apply the following steps:
10 a. Use a suitable lifting device (e.g. sling or cable) to hold the chute in place.
10 b. Start the truck and engage the hydraulic pump.
10 c. Lower the crusher panel(s), if installed, using the CRUSHER PANEL DOWN switch on the in-
cab control panel.
Danger!
Never enter the hopper while the hydraulic system is engaged.
