General Maintenance 149

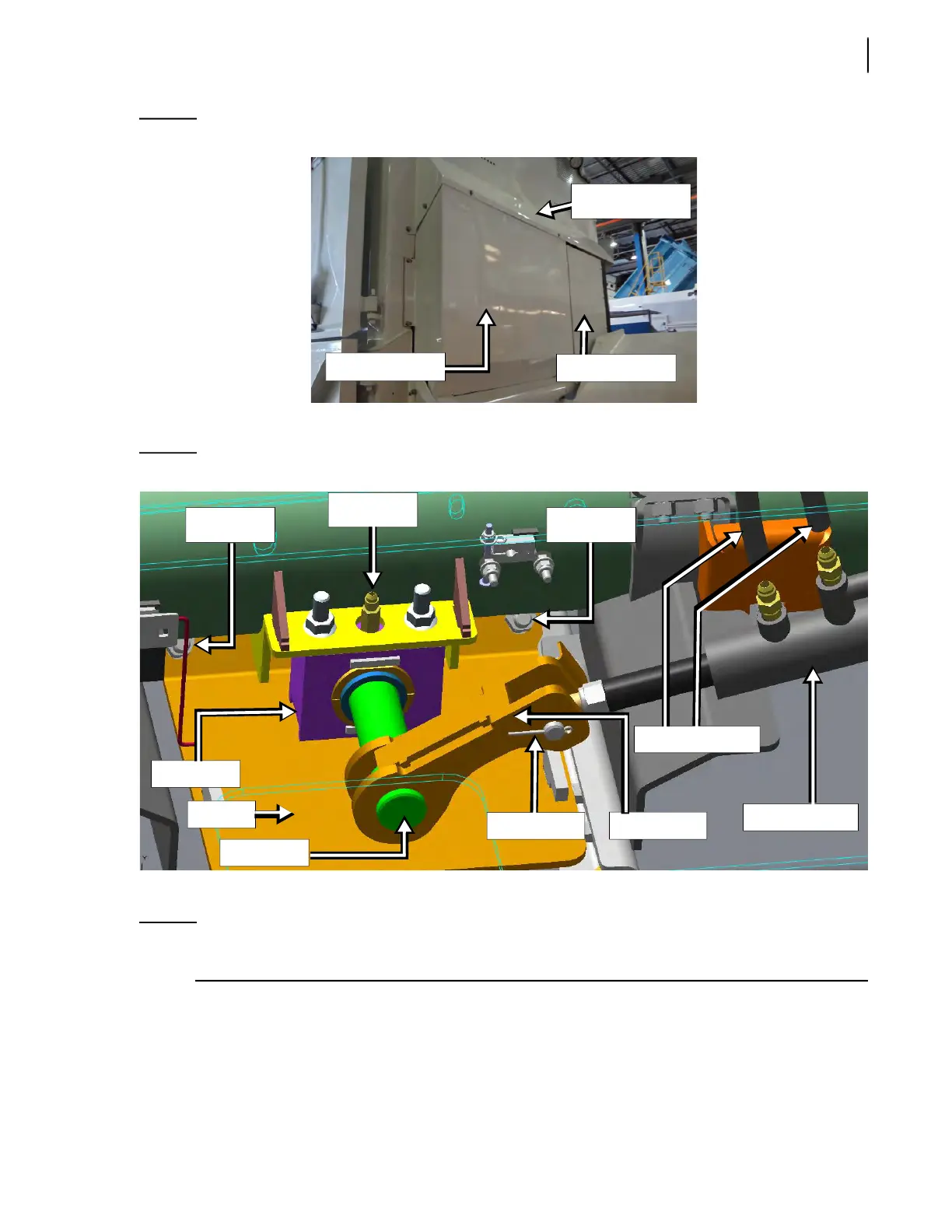

Figure 3-204
Hopper rear side
10 g. Remove the cotter pin (see Figure 3-205) that holds the cylinder pin in.
Figure 3-205
Chute cylinder and related parts
10 h. Remove the cylinder pin that secures the cylinder rod to the chute lever (see Figure 3-205).
NOTE: Take care not to cause misalignment of the limit switch when disconnecting the chute-
operating cylinder.
10 i. If needed, retract the chute-operating cylinder. To do so:
Protective cover
Crusher panel
Crusher panel
deflector
Hydraulic hoses
Chute cylinder
Cotter pin
Chute shaft
Pillow block
Grease
fitting
Plate
holding bolt
Plate
holding bolt
Chute lever
Plate
To Next Page
