General Maintenance 151

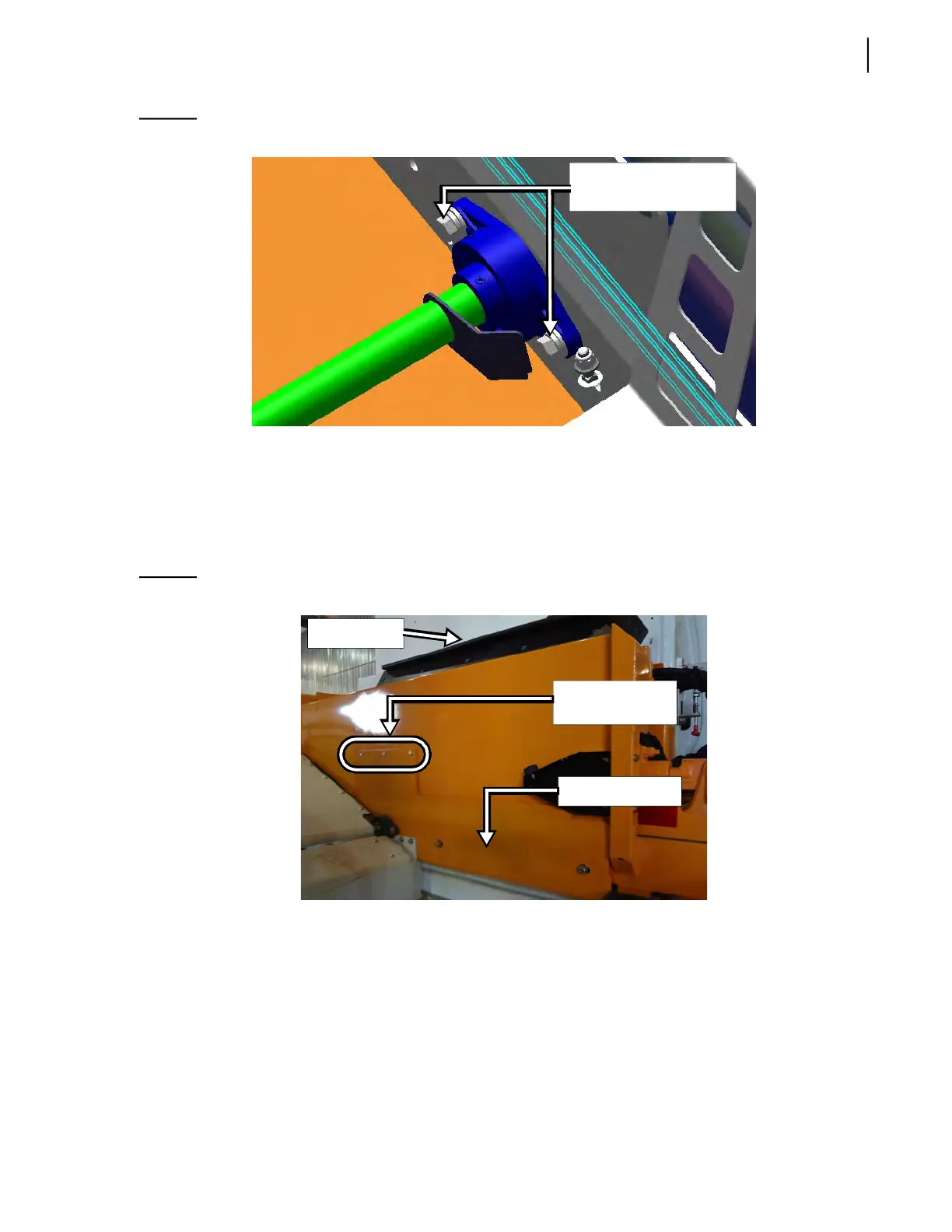

Figure 3-207
Flange bearing
11. Remove the deflector panel on the automated arm assembly (see Figure 3-208).
Use a ¾-inch wrench to remove the 4 lower bolts that hold the panel.
Also remove the 3 carriage bolts located at the center of the automated arm assembly (see Figure
3-208).
In order to access these bolts and remove them, lift the arm cover open.
Figure 3-208
Deflector panel
12. Remove the transversal beam by taking out the 4 bolts (2 on each side) that retain it.
Remove these 2 bolts to
free the flange bearing
Remove these 3
carriage bolts
Deflector panel
Arm cover
