Labrie EXPERT Service Manual

162 General Maintenance
6 bolts are to be taken out including 2 carriage bolts to remove the beam and unloose the central
cover (see Figure 3-228).

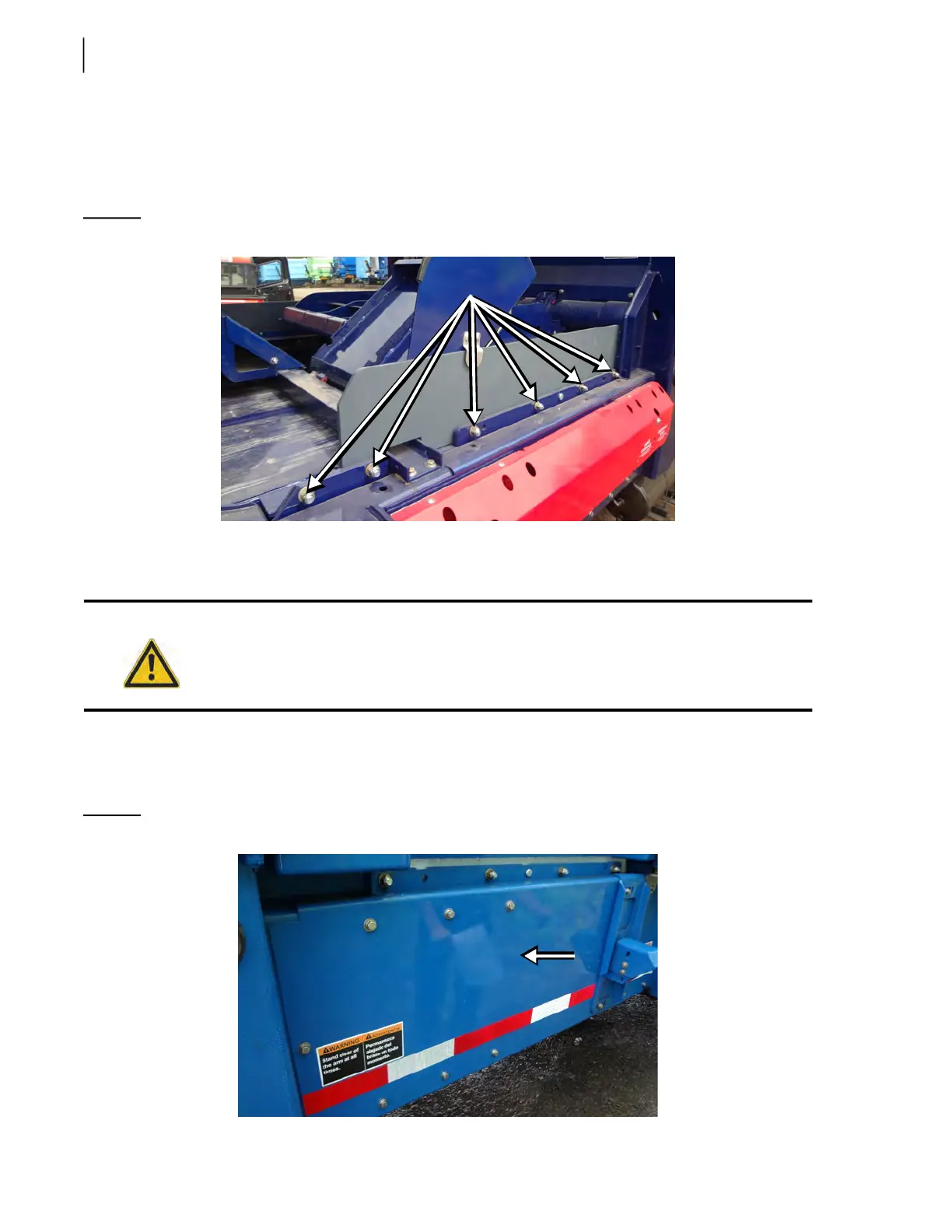

15. Remove the upper part of both side rails (one on each side of the hopper).
6 bolts are to be taken out to remove this section of the side rail (see Figure 3-229).
Figure 3-229 Bolts to be taken out to remove upper part of side rail
16. Start the engine and engage the hydraulic pump.
17. Retract the packer to mid-stroke position.
18. Turn OFF the hydraulic pump and the engine.
19. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
20. Remove both side panels (one on each side of the hopper).
Figure 3-230 Side panel
Danger!
Do not enter the hopper while the packer is moving.
