General Maintenance 167

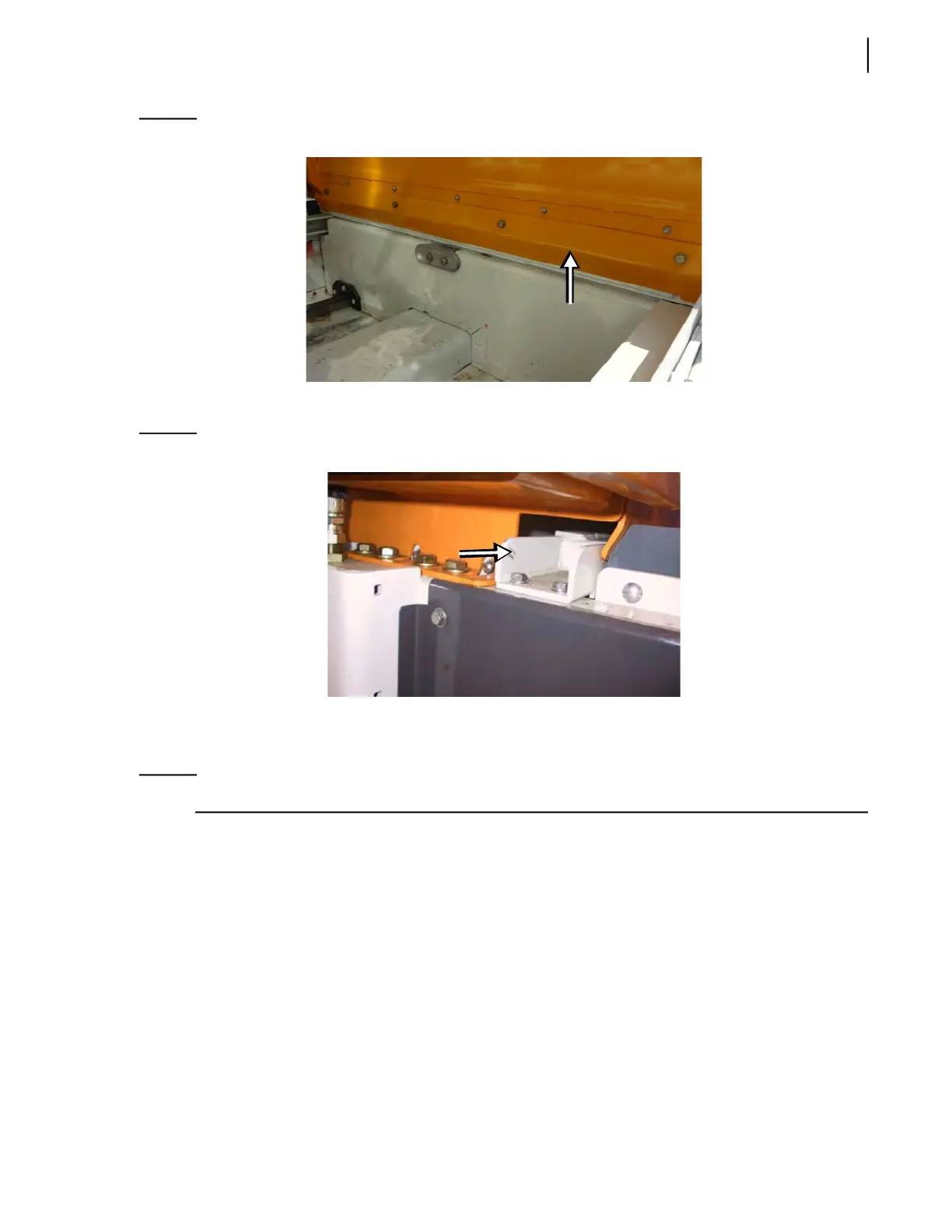

Figure 3-236 Deflector panel
8. Unscrew the 4 bolts that hold the transversal beam in place (2 on each side).
Figure 3-237 Transversal beam
9. Remove the transversal beam by sliding it out.
10. Remove the worn-out wear pad.
NOTE: The wear pad is not bolted to the transversal beam.
11. Check the compression rubber inside the beam (under the scraper). Replace if needed.
12. Install a new wear pad.
13. Put the transversal beam back in place.
14. Reinstall the transversal beam retaining bolts (2 on each side).
15. Check for even contact between the new wear pad and the packer/follower panels.
16. Put back the deflector panel (see Figure 3-236).
17. Reinstall both anti-spill guards.
B. Standard Units W/O Loading Arm
To replace a worn-out lower wear pad, apply the following procedure:
1. Start the engine and engage the hydraulic pump.
