180 General Maintenance

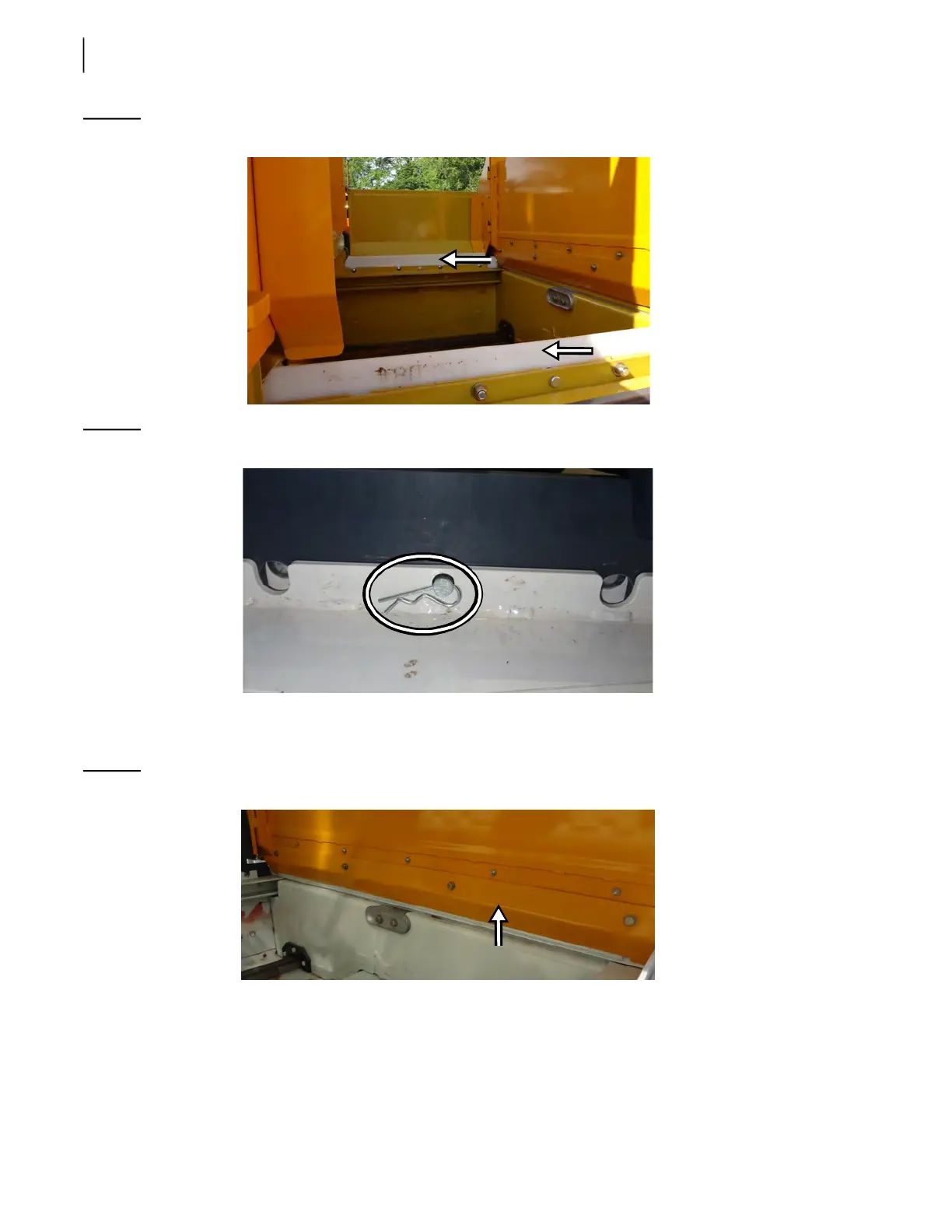

Figure 3-258
Anti-spill guards
Figure 3-259
R-pin holding anti-spill guard in place
7. Remove the deflector panel.
Use a ¾-inch wrench to remove the 4 bolts that hold the panel.
Figure 3-260
Deflector panel
8. Remove the transversal beam by taking out the 4 bolts (2 on each side) that retain it.
