General Maintenance 181
Figure 3-261
Transversal beam

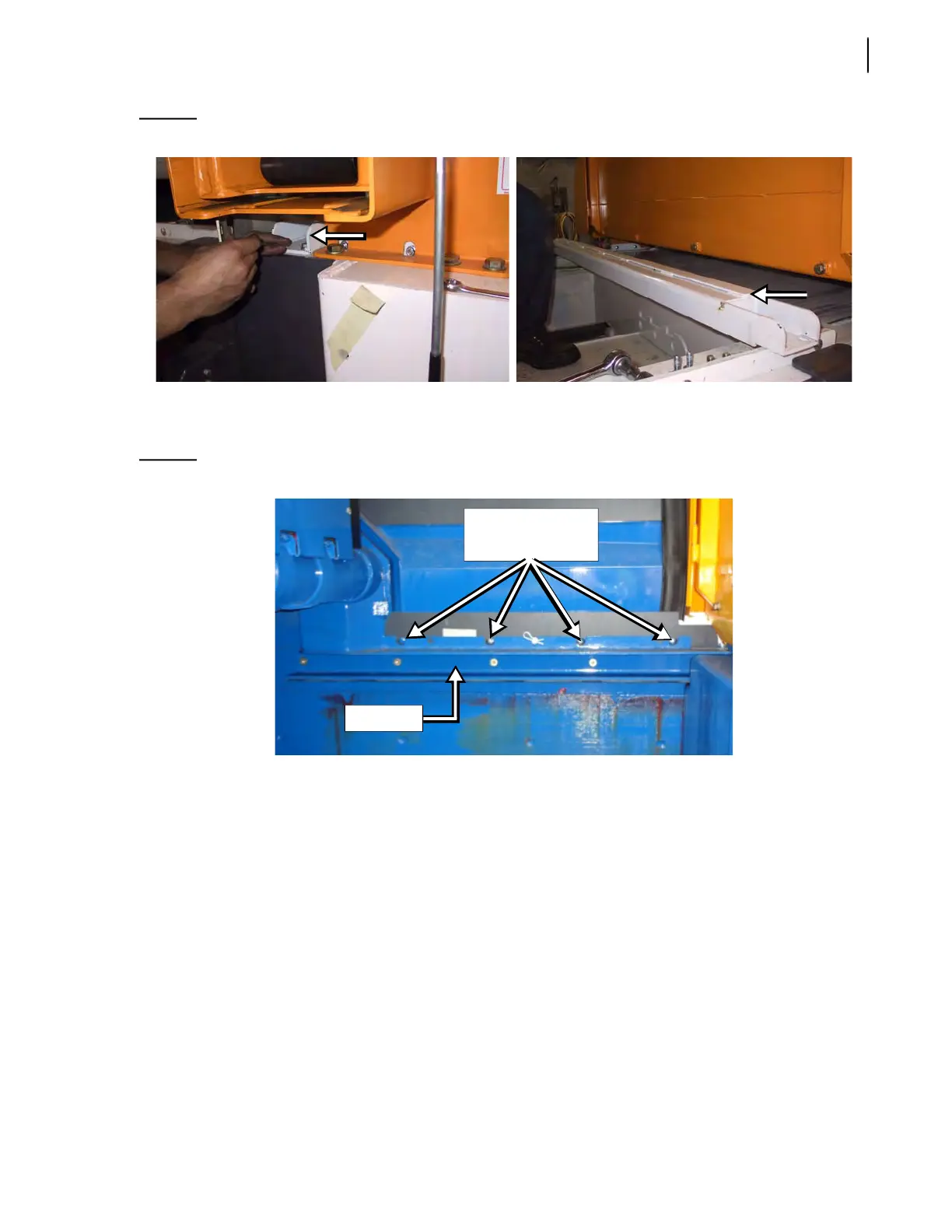

9. Remove the upper part of both side rails (one on each side of the hopper) [see Figure 3-262].
4 bolts are to be taken out to remove this section of the side rail.
Figure 3-262
Side rail
10. Remove all panel rollers from the follower panels and replace them with new ones. To do so:
10 a. Flip the top follower panel backward (panel nearest the arm) [see Figure 3-263].
Side rail
Bolts that hold the
upper part of the
side rail in place
