188 General Maintenance

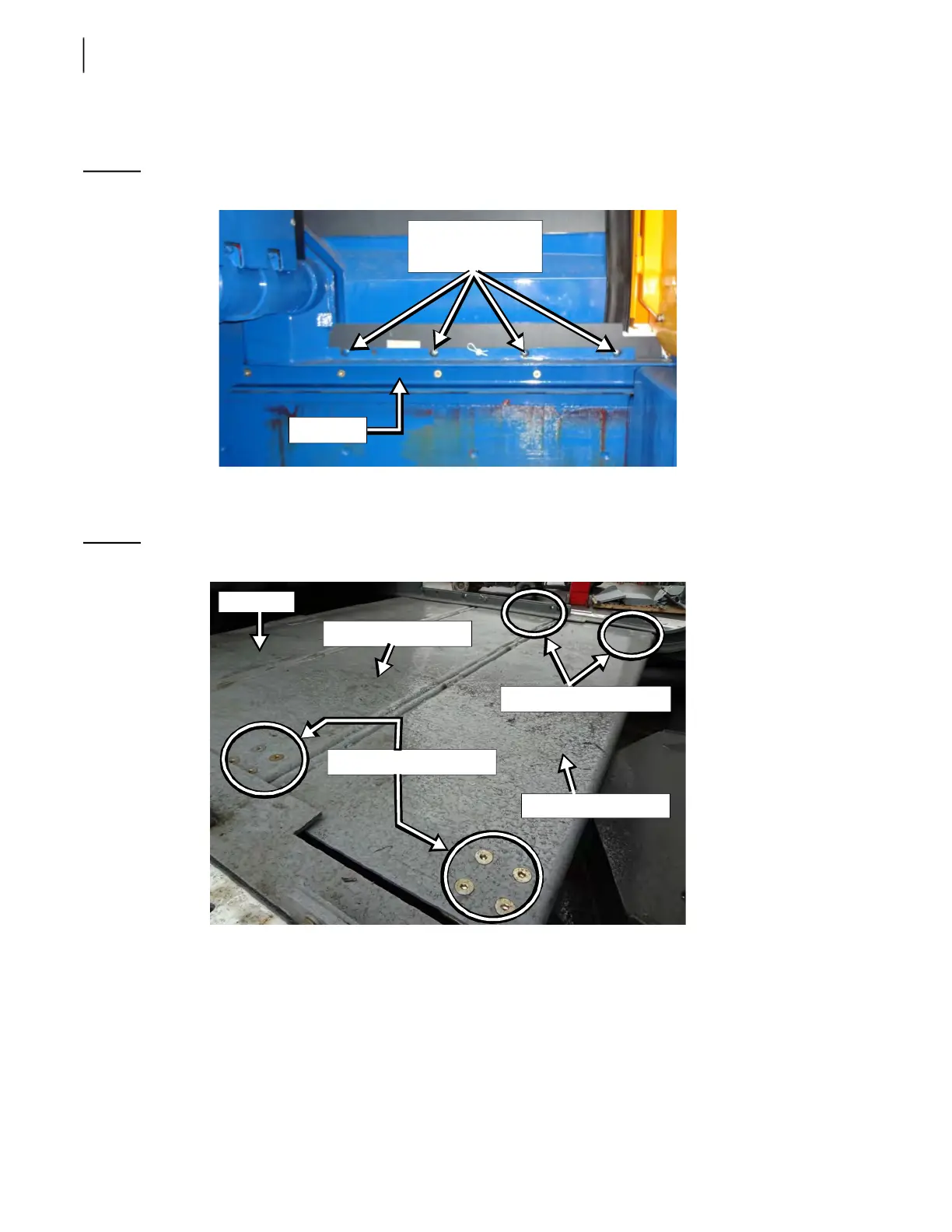

15. Remove the upper part of both side rails (one on each side of the hopper) [see Figure 3-273].
4 bolts are to be taken out to remove this section of the side rail.
Figure 3-273
Side rail
16. Remove all panel rollers from the follower panels and replace them with new ones. To do so:
16 a. Flip the top follower panel backward (panel nearest the arm) [see Figure 3-274].
Figure 3-274
Packer and follower panels
16 b. Remove both rollers (one on each side of the top follower panel).
Using a 516-inch Allen wrench and a 34-inch box, remove all 4 bolts that keep the roller in
place (see Figure 3-275).
Side rail
Bolts that hold the
upper part of the
side rail in place
Top follower panel
Bottom follower panel
Packer
RHS roller retaining bolts
LHS roller retaining bolts
