198 General Maintenance
Figure 3-290
Securing cylinder to support

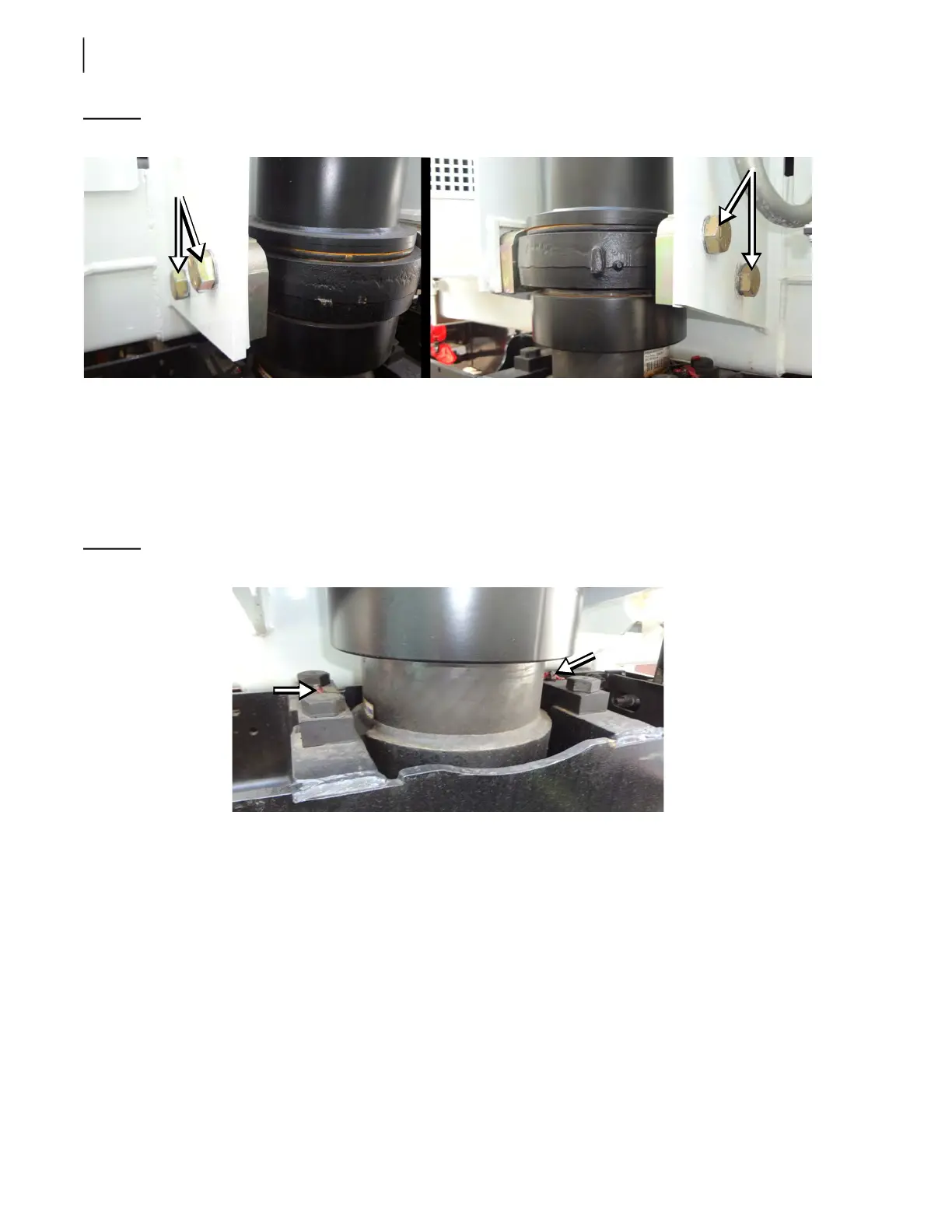

The pillow blocks that are attached to the cylinder must be correctly positioned to allow insertion
of the bolts through the support threaded holes (see Figure 3-290).
13. Put back the 4 bolts and tighten them up to properly secure the cylinder to the support on the
body front.
14. Reconnect the hydraulic hose atop the cylinder (see Figure 3-287).
15. Lubricate all cylinder grease fittings.
Figure 3-291
Grease fittings
16. Start the truck and engage the pump.
17. Slowly operate the body raise function.
Raise the body just enough to be able to move the safety prop.
18. Move the safety prop back to its storage position.
19. Check for proper operation.
Cycle the cylinder approximately 5 times to remove air.
