264 Hydraulic System

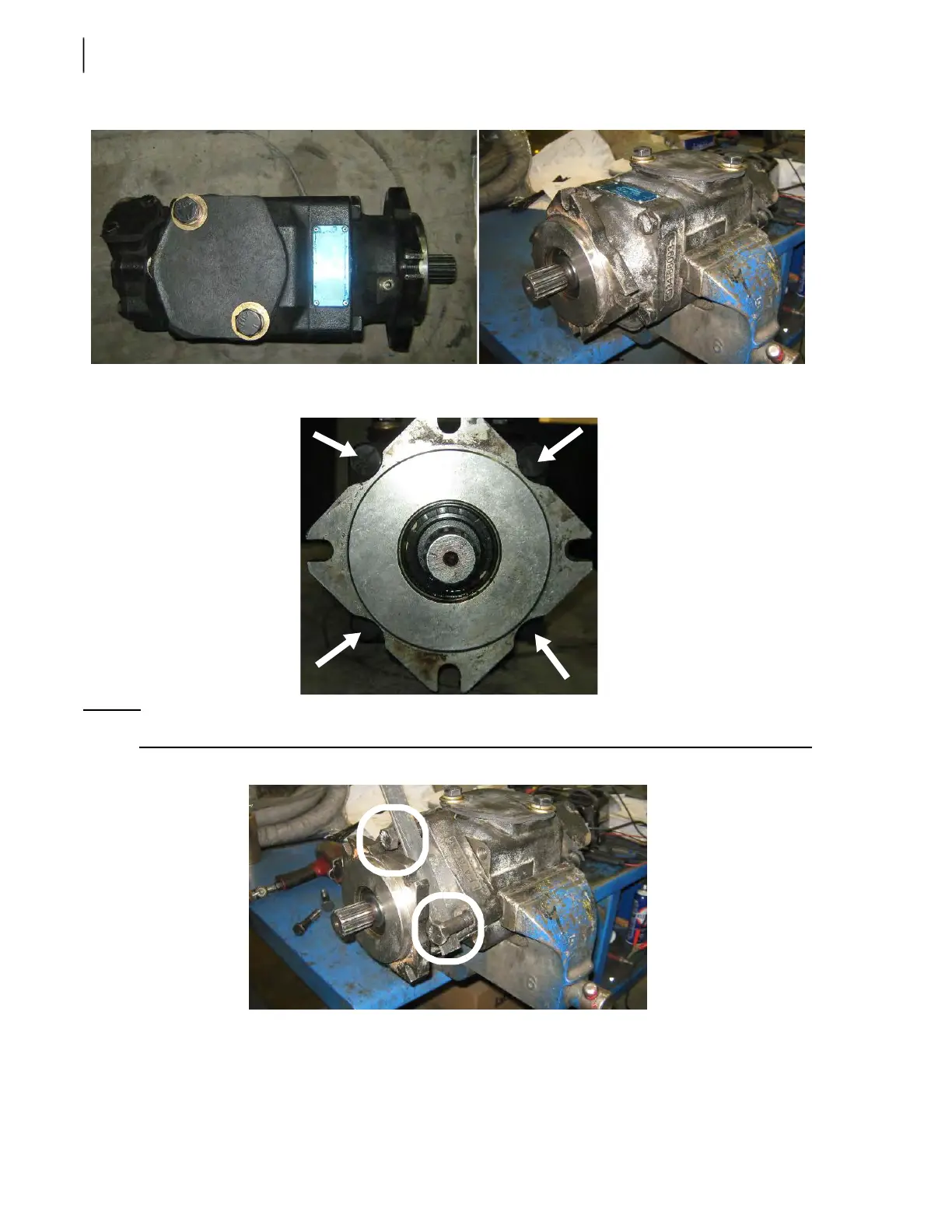

13 b. Remove all 4 retaining bolts that hold the mounting cap in place.

NOTE: You may leave two retaining bolts partially unscrewed to facilitate rotation with a metallic bar.

13 c. Rotate the mounting cap accordingly.
