314 Electrical System

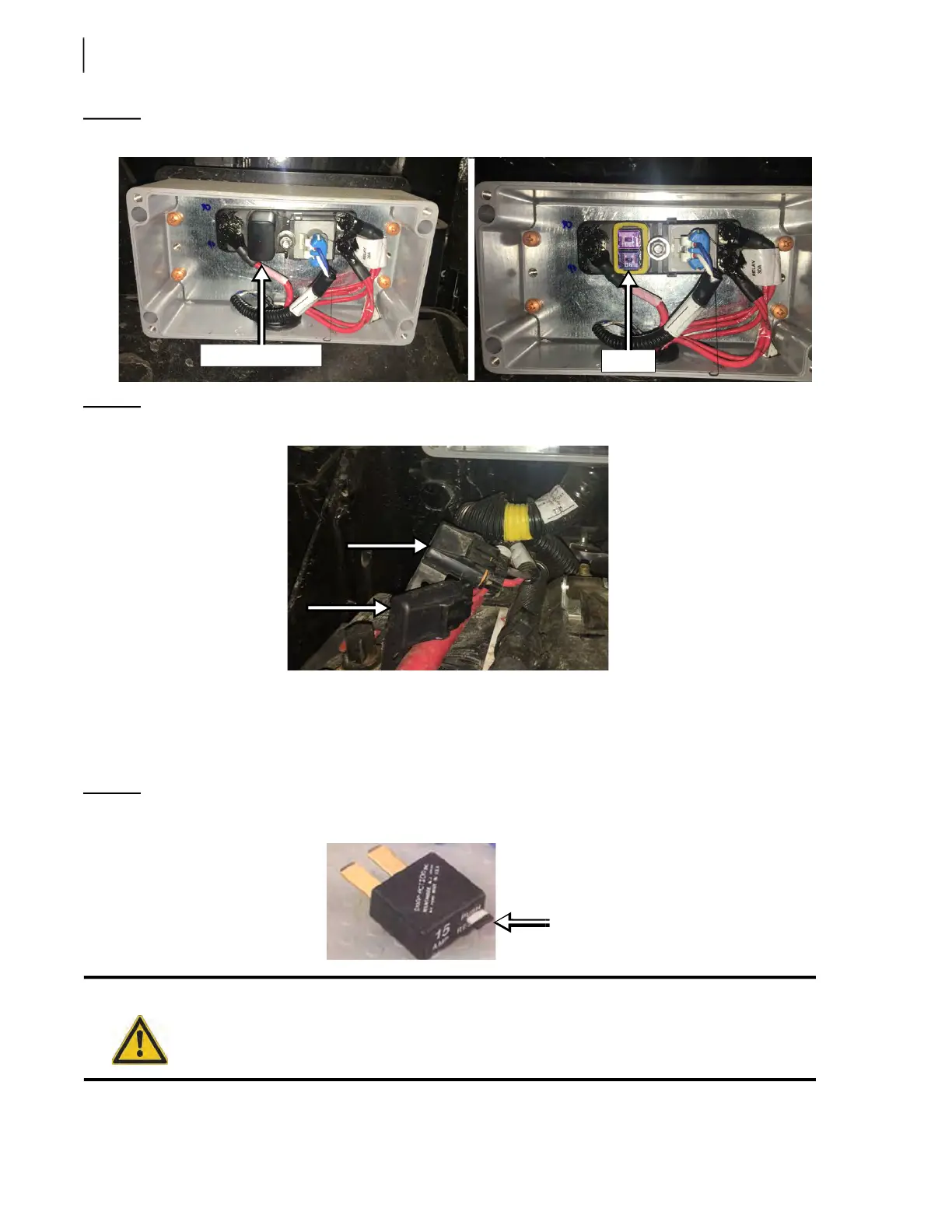

Figure 6-3
Fuses inside relay box
Figure 6-4
Fuses outside relay box
Circuit breakers
The EXPERT™ may have up to 6 manual reset circuit breakers, depending on the options installed.
These breakers are located within the in-cab control box.
Mounted on each circuit breaker is a button which, once pushed, resets the breaker (see Figure 6-5).
Figure 6-5
Circuit breaker
Caution!
Never hold down the reset button when the reset operation fails. This may result in severe
electrical damage. Report this problem to your supervisor and maintenance department.
Plastic cover
Fuses
