General Maintenance 49
D. Preparing Packer for Removal - Co-Mingle - W/O Loading Arm
Follow these steps before proceeding with the removal of the packer panel:
1. Start the engine and engage the hydraulic pump.
2. Fully raise both crusher panels (if installed).
NOTE: The EXPERT™ may be equipped with a dual split crusher panel, or a single split crusher panel
which would be located either on the right-hand side or on the left-hand side of the hopper
(see Figure 3-23). One important thing is to place the chute on the opposite side of the crusher
panel that you intend to lower. Normally, a lockout feature prevents a crusher panel from
hitting the chute.
3. Fully retract the packer by pressing the yellow button on the packer control station.
4. Rotate the chute so that its upper edge is in the middle of the hopper or at its highest position.
5. Turn OFF the hydraulic pump and the engine.
6. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).

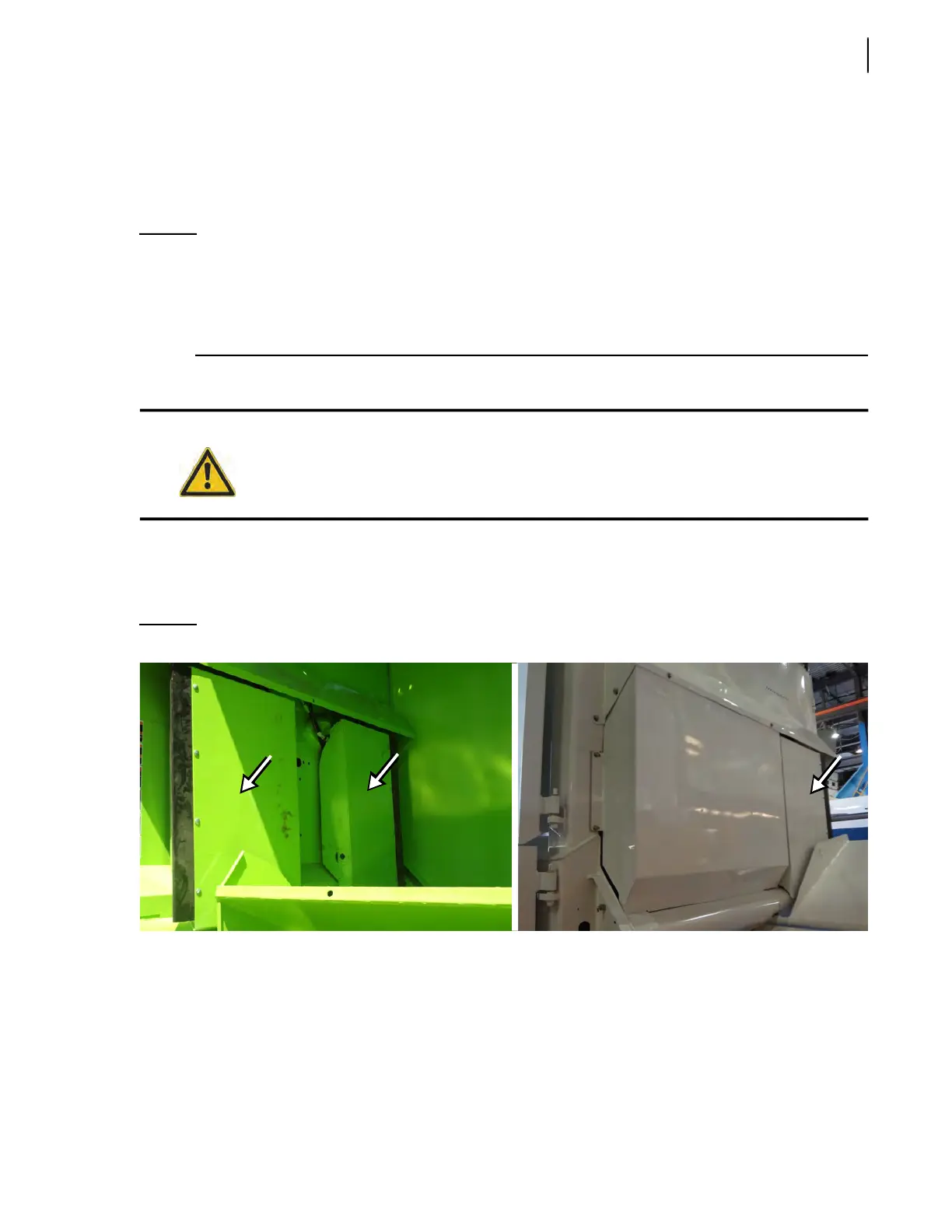

Figure 3-23
Dual split crusher panel (left), single split panel (right)
NEXT: ACCESSING PACKER: See “D. Accessing Packer - Co-Mingle Units W/O Loading Arm”
on page 62.
E. Preparing Packer for Removal - Dual HELPING-HAND™ Units
Follow these steps before proceeding with the removal of the packer panel:
1. Start the engine and engage the hydraulic pump.
Danger!
Do not enter the hopper while the packer is moving.
