Labrie EXPERT - Page 81

General Maintenance 71

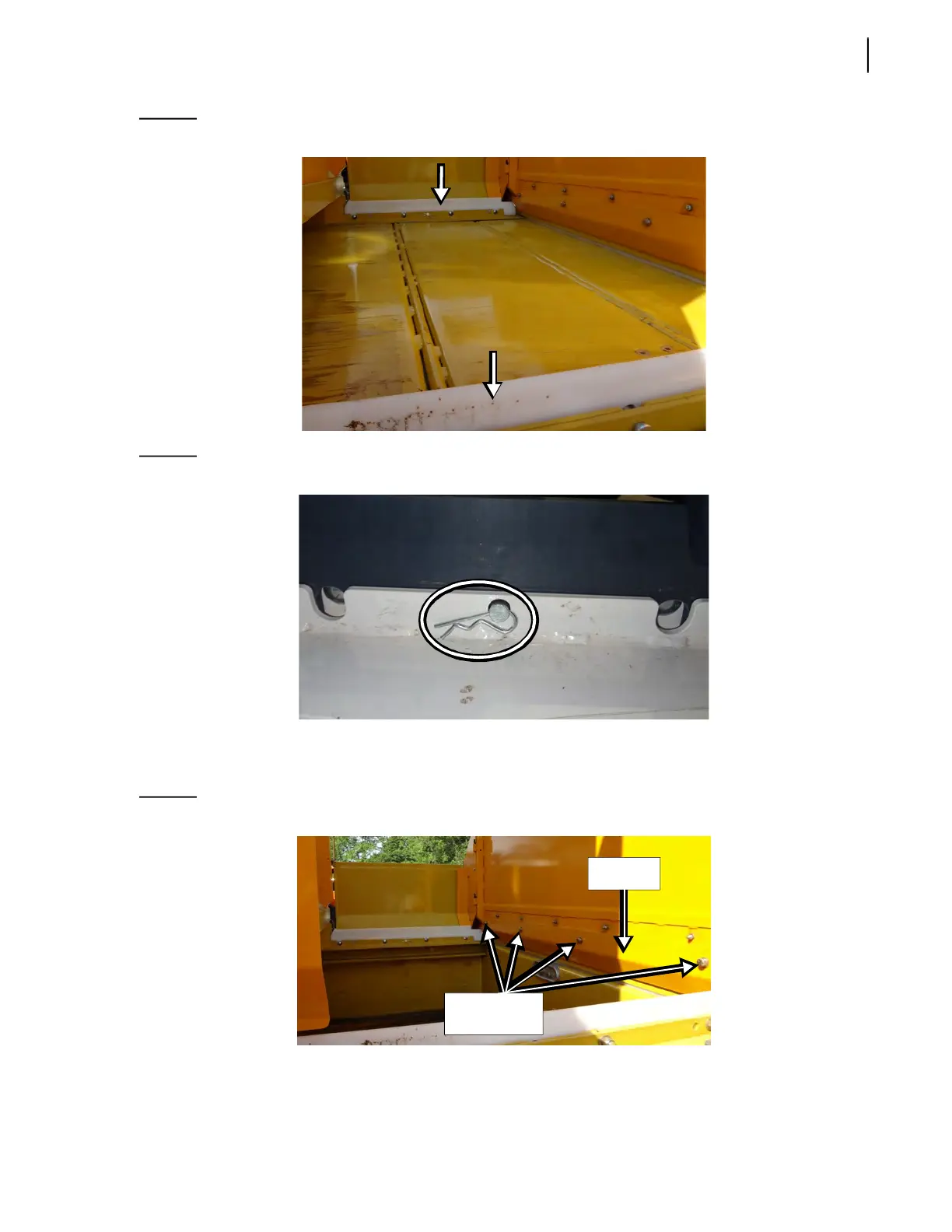

Figure 3-65 Anti-spill guards
Figure 3-66 R-pin holding anti-spill guard in place
2. Remove the deflector panel.
Use a ¾-inch wrench to remove the 4 bolts that hold the panel.
Figure 3-67 Deflector panel
3. Remove the transversal beam by taking out the 4 bolts (2 on each side) that retain it.
Bolts to be
removed (4)
Deflector
panel
