72 General Maintenance

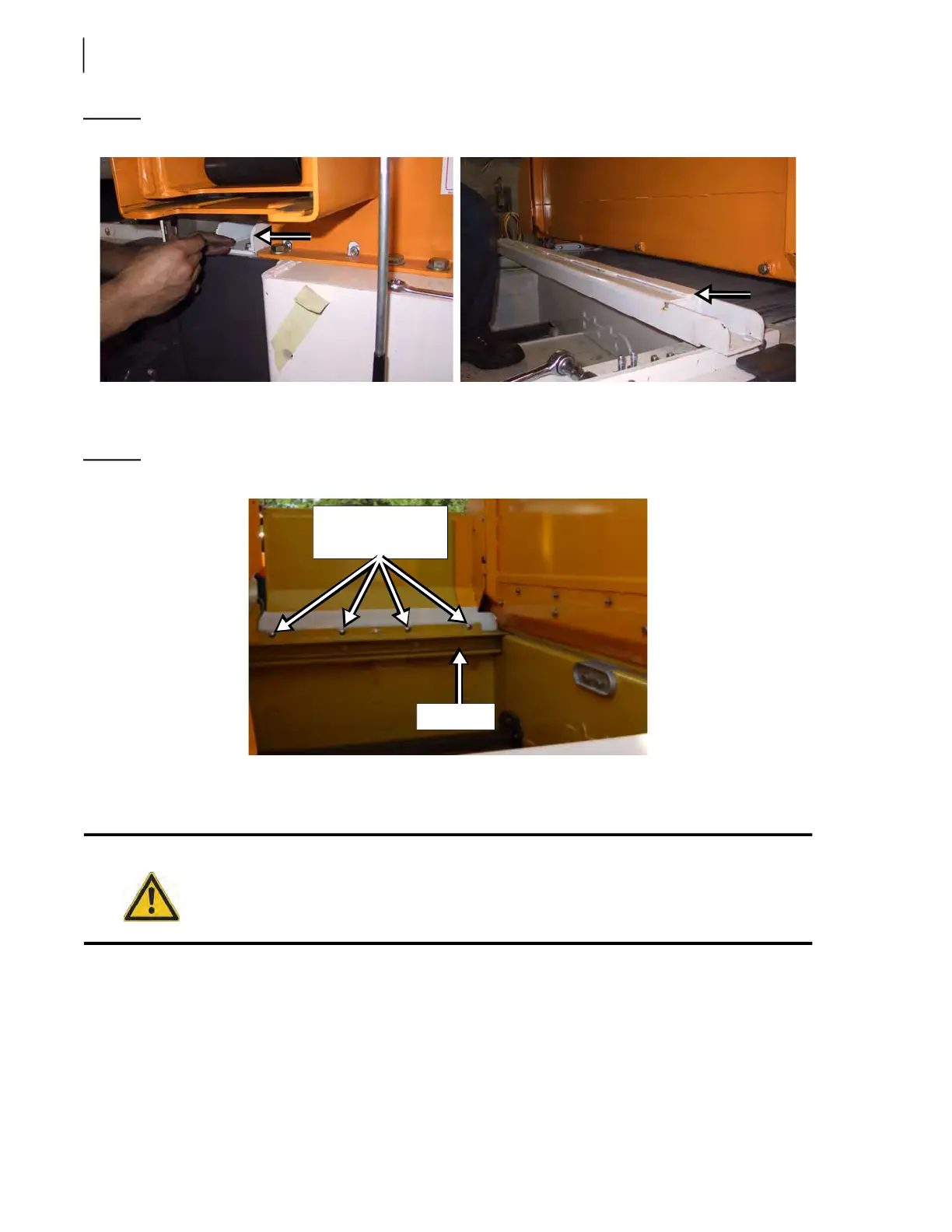

Figure 3-68
Transversal beam
4. Remove the upper part of both side rails (one on each side of the hopper) [see Figure 3-69].
4 carriage bolts are to be taken out to remove this section of the side rail.
Figure 3-69
Side rail
5. Start the engine and engage the hydraulic pump.
6. Extend packer to mid-stroke position.
7. Turn OFF the hydraulic pump and the engine.
8. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
NEXT‘: DISCONNECTING PACKER: See “E. Disconnecting Packer - Dual H
ELPING-HAND
Units” on page 79.
Danger!
Do not enter the hopper while the packer is moving.
Bolts that hold the
upper part of the
side rail in place
Side rail
