CFF 16i RAID/HBA adapter
The following shows the cable connections for the 16 x 2.5-inch SAS/SATA configuration with one CFF 16i
RAID/HBA adapter.
From To
Backplane 1: SAS CFF 16i RAID/HBA adapter: C0, C1
Backplane 2: SAS CFF 16i RAID/HBA adapter: C2, C3
CFF 16i RAID/HBA adapter: MB Onboard: PCIe 3
CFF 16i RAID/HBA adapter: PWR Onboard: RAID PWR
Connections between connectors:
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n

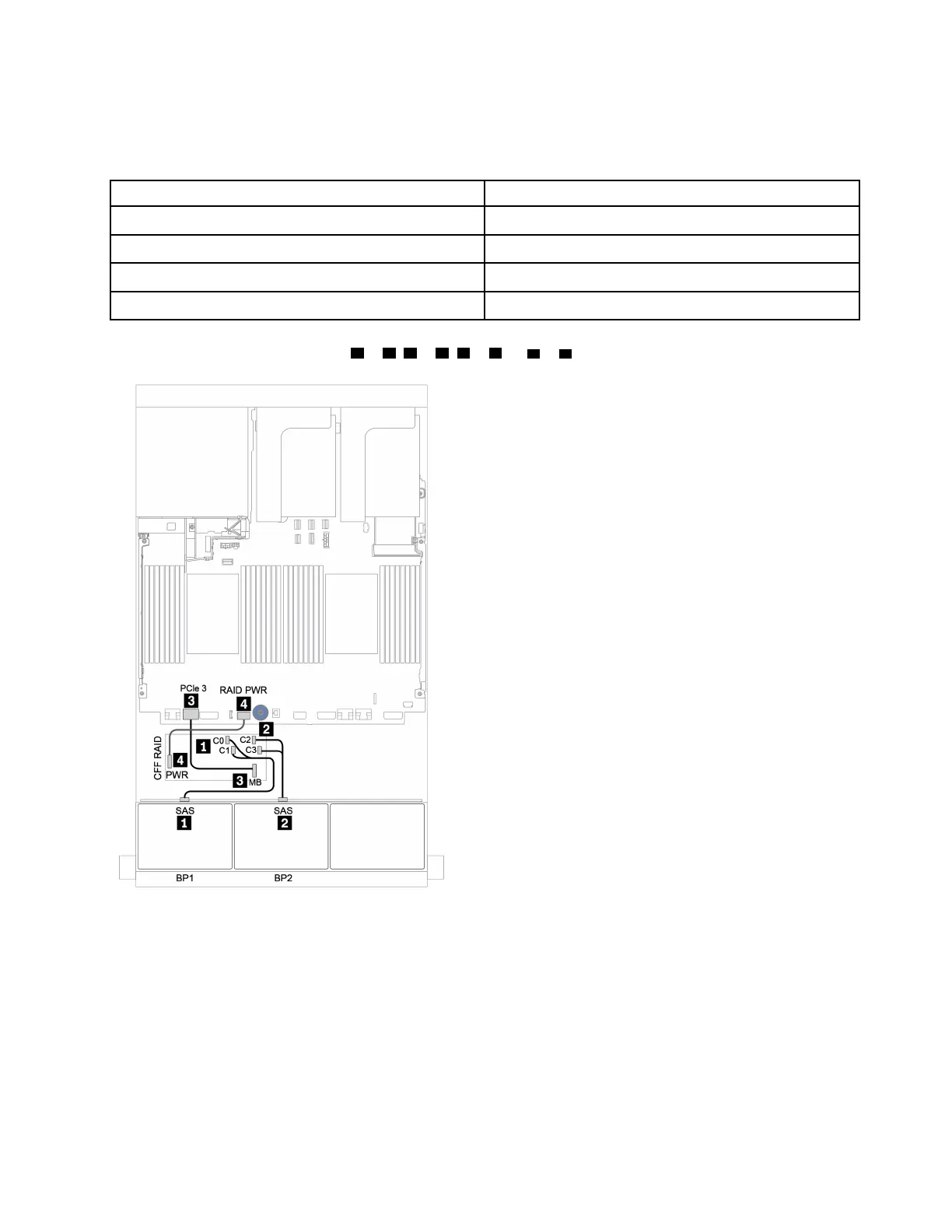

Figure 40. Cable routing for 16 x 2.5-inch SAS/SATA configuration with one CFF 16i RAID/HBA adapter
Chapter 3. Internal cable routing 95
