Lenovo ThinkSystem SR650 V2 User Manual

8 x SAS/SATA front drive bays
This section provides cable routing information for the server model with 8 x 2.5-inch SAS/SATA front drive
bays.
• “Onboard connectors” on page 89
• “8i/16i RAID/HBA adapter” on page 90
• “CFF 16i RAID/HBA adapter” on page 91
Onboard connectors
The following shows the cable connections for the 8 x 2.5-inch SAS/SATA configuration with onboard
connectors.
From To
Backplane 1: SAS Onboard: SATA 0, SATA 1
Connections between connectors:
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n

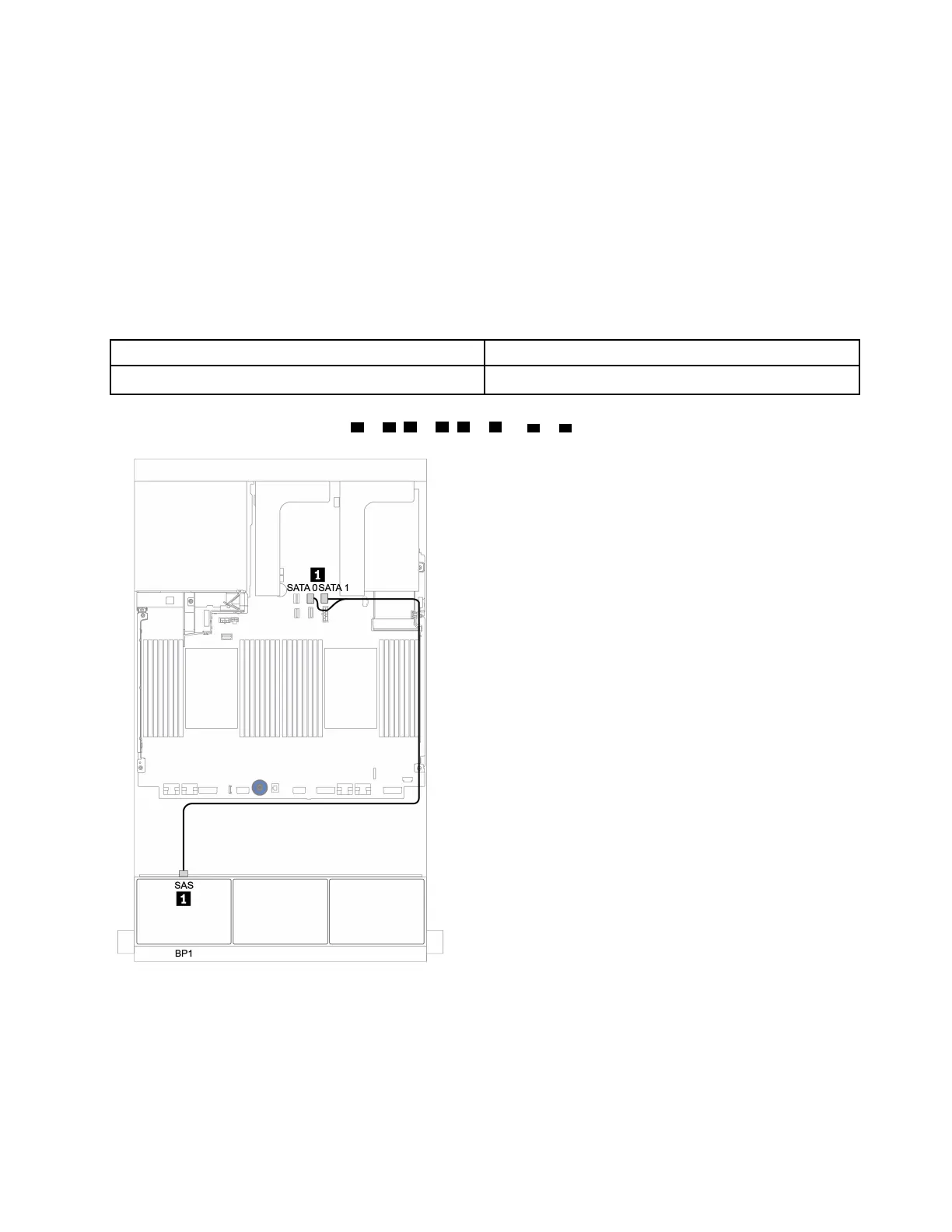

Figure 35. Cable routing for the 8 x 2.5-inch SAS/SATA configuration with onboard connectors
Chapter 3. Internal cable routing 89

Lenovo ThinkSystem SR650 V2 Specifications

General

Expansion Slots	Up to 7x PCIe 4.0 slots
Form Factor	2U rack server
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Processor	Up to 2x 3rd Generation Intel Xeon Scalable processors, up to 40 cores per processor
Memory	Up to 8TB in 32x slots, using 256GB DDR4 3200MHz DIMMs
Drive Bays	Up to 24 x 2.5" or 12 x 3.5"
Power Supply	Up to 2x hot-swap redundant power supplies, 750W Platinum, or 750W Titanium
Memory Slots	32 DIMM slots
Storage Controller	ThinkSystem RAID 930-8i
Operating System	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
