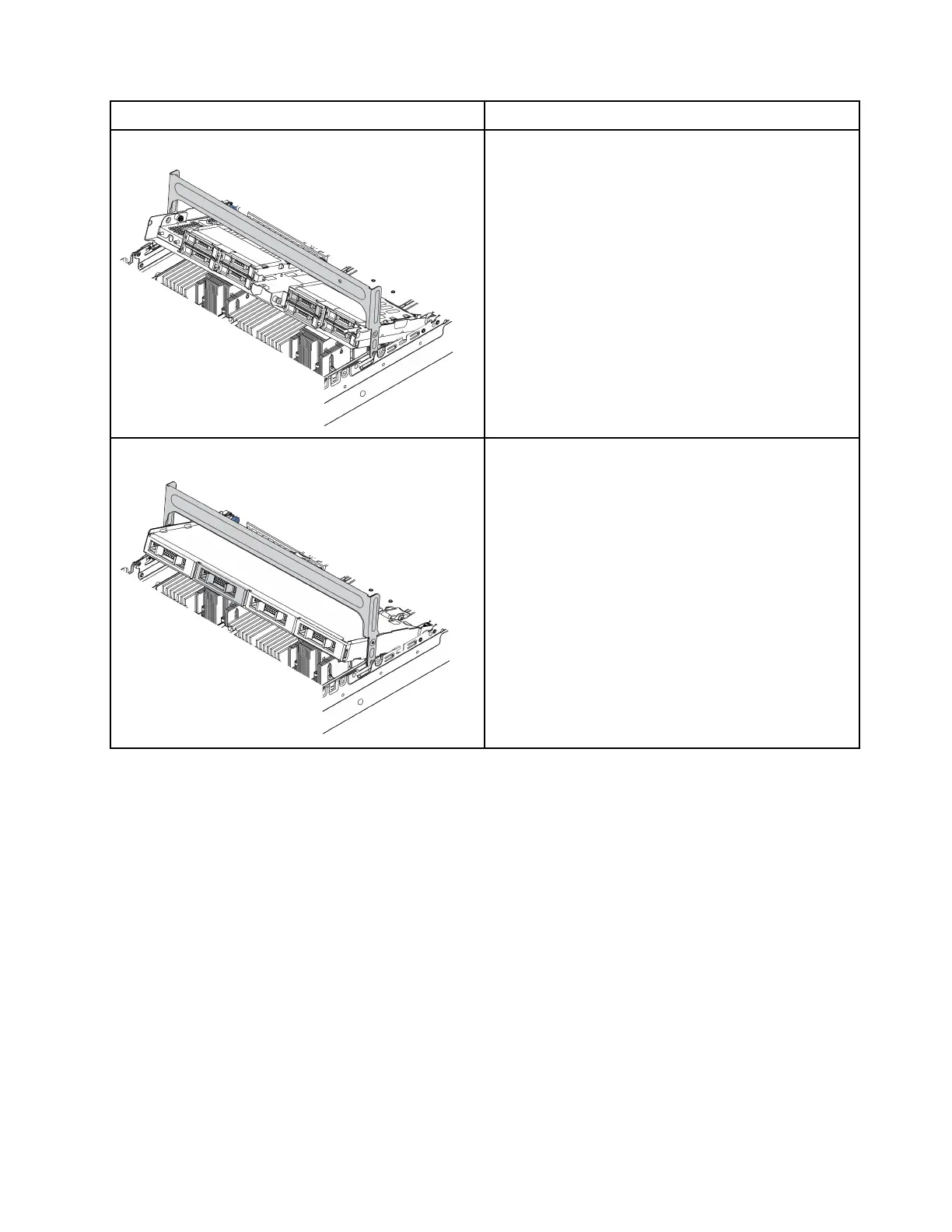

Drive cage type Backplane type
Middle 2.5-inch 8-bay drive cage
Two 2.5-inch SAS/SATA 4-bay backplanes
Two 2.5-inch NVMe 4-bay backplanes
Middle 3.5-inch 4-bay drive cage
One 3.5-inch SAS/SATA 4-bay backplane
“Remove the middle drive cage” on page 271
“Remove the middle drive backplane” on page 274
“Install the middle drive backplane” on page 275
“Install the middle drive cage” on page 276
Remove the middle drive cage
Use this information to remove the middle drive cage.
About this task
Attention:
Read “Installation Guidelines” on page 185 to ensure that you work safely.
Power off the server and disconnect all power cords for this task.
Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
Chapter 4. Hardware replacement procedures 271
