Remove a super capacitor module from the middle 2.5-inch drive cage
Use this information to remove a super capacitor module from the middle 2.5-inch drive cage.
About this task
Attention:
• Read “Installation Guidelines” on page 185 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DqVplE36HIvdM_sq_Auw3U
• Youku: https://list.youku.com/albumlist/show/id_59643657.html
Procedure
Step 1. Remove the top cover. See “Remove the top cover” on page 376.
Step 2. Disconnect the cable of the RAID super capacitor module.
Step 3. Open the drive cage handle.

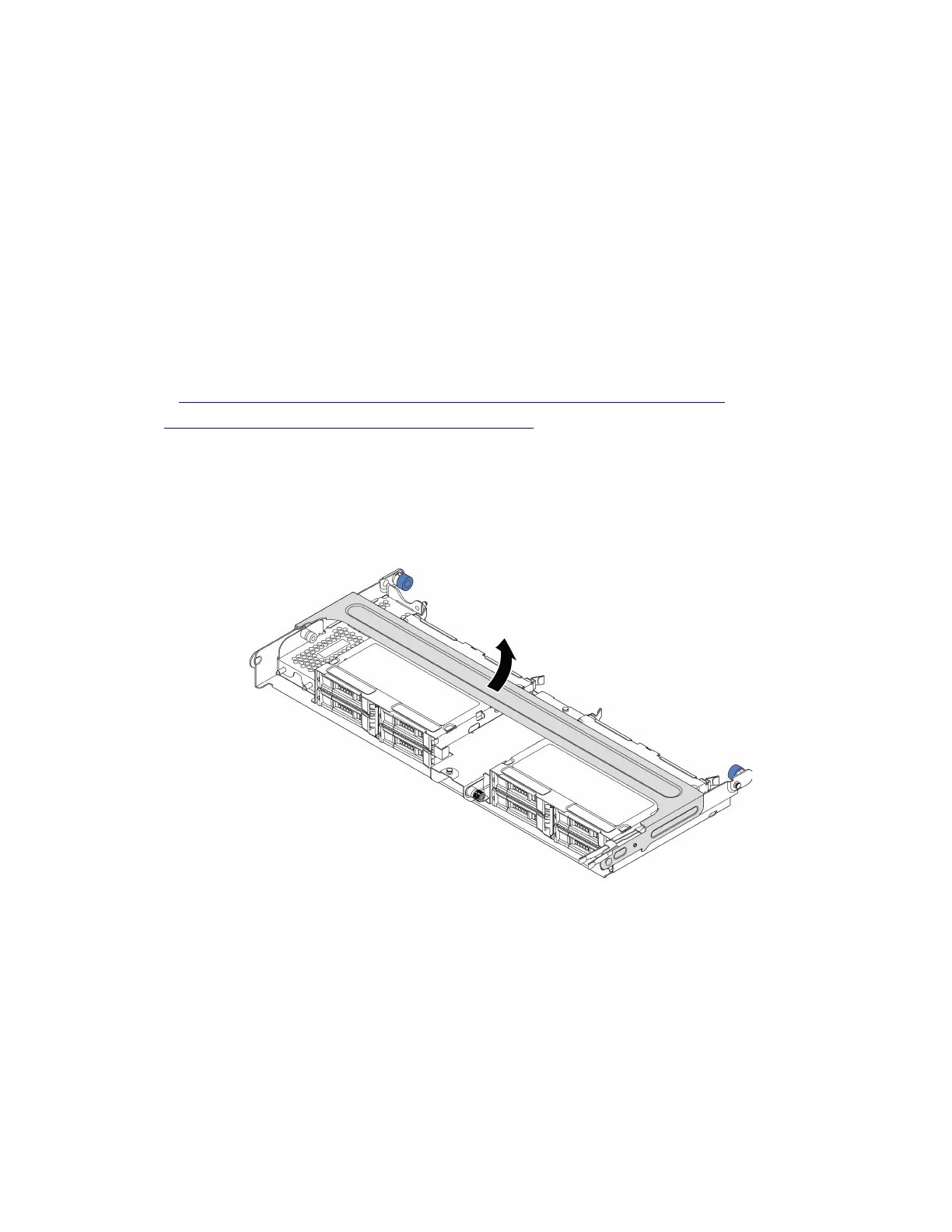

Figure 248. Opening the handle of the middle drive cage
320 ThinkSystem SR650 V2Maintenance Manual
