Front I/O assembly replacement
Use this information to remove and install the front I/O assembly.
The front I/O assembly varies by model. The front I/O assembly for most models is integrated on right rack
latch. The front I/O assembly on media bay is supported only in the following server models:
• Server models with eight 2.5-inch front drive bays
• Server models with sixteen 2.5-inch front drive bays

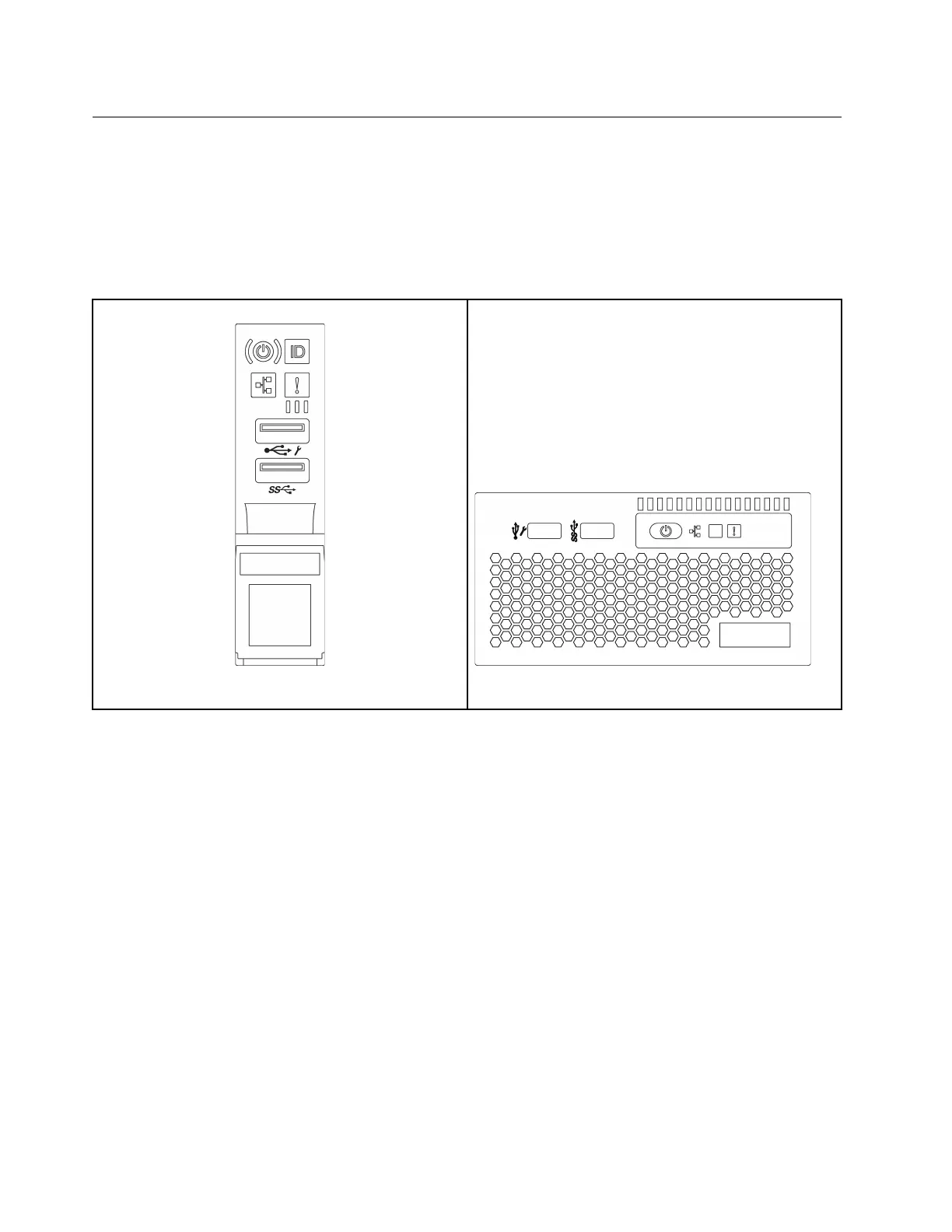

Figure 156. Front I/O assembly (on rack latch) Figure 157. Front I/O assembly (on media bay)
To replace the front I/O assembly on the rack latch, see “Rack latches replacement” on page 306.
To replace the front I/O assembly on the media bay:
• “Remove the front I/O assembly” on page 211
• “Install the front I/O assembly” on page 213
