If you are instructed to return the defective component, follow all packaging instructions and use any
packaging materials that are provided.
Install the rack latches
Use this information to install the rack latches.
About this task
Attention:
• Read “Installation Guidelines” on page 185 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
Note: If the rack latches are not assembled with a VGA connector or the front I/O assembly, you can
install the rack latches without powering off the server.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DqVplE36HIvdM_sq_Auw3U
• Youku: https://list.youku.com/albumlist/show/id_59643657.html
Procedure
Step 1. Touch the static-protective package that contains the new rack latches to any unpainted surface
on the outside of the server. Then, take the new rack latches out of the package and place them on
a static-protective surface.
Step 2. On each side of the server, align the rack latch with the pin on the chassis. Then, press the rack
latch onto the chassis and slightly slide it backward.

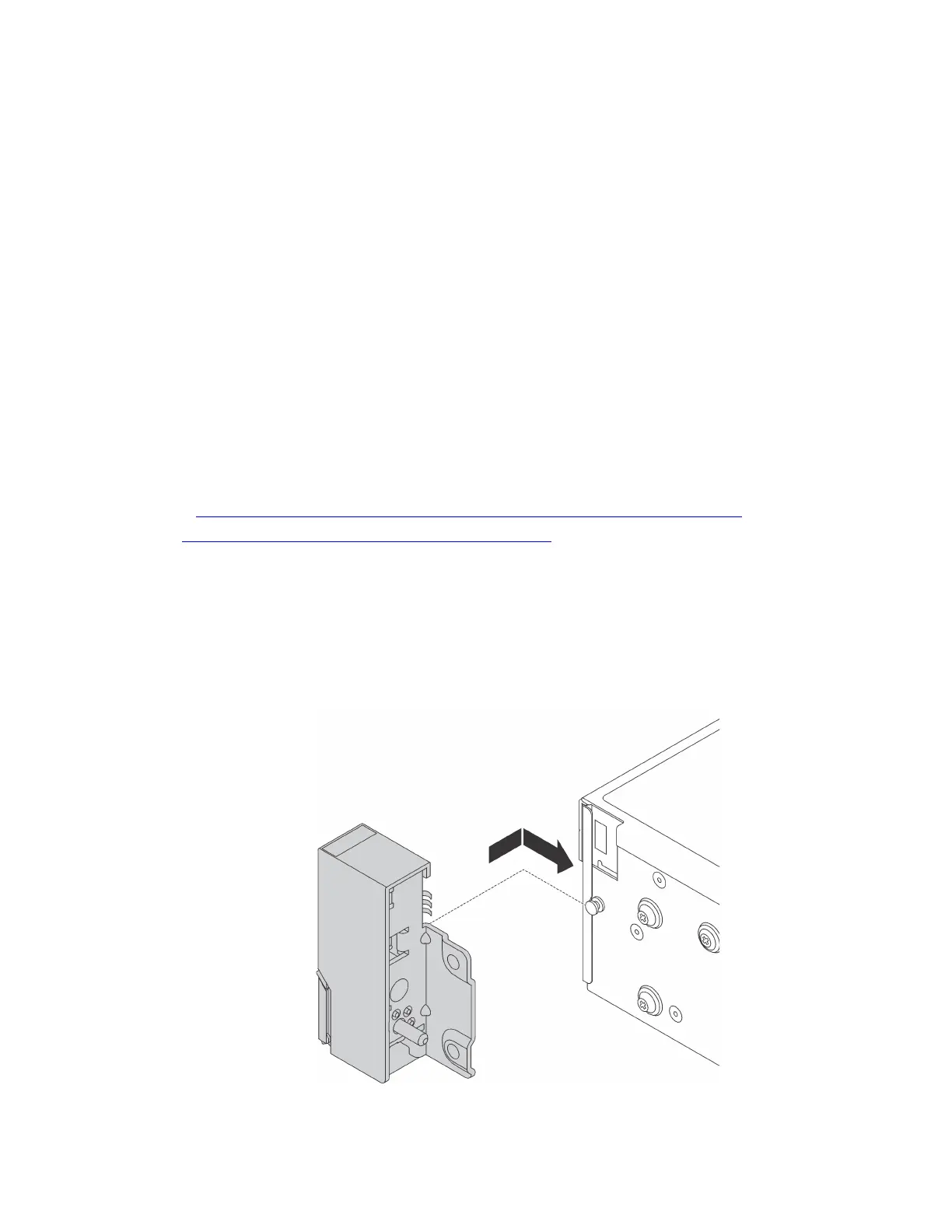

Figure 234. Rack latch installation
Chapter 4. Hardware replacement procedures 309
