8 x 3.5-inch SAS/SATA front drive bays
This section provides cable routing information for the server model with 8 x 3.5-inch SAS/SATA front drive
bays.
“Onboard connectors” on page 162
“8i RAID/HBA adapter” on page 163
Onboard connectors
The following shows the cable connections for the 8 x 3.5-inch SAS/SATA configuration with onboard
connectors.
From To
Backplane 1: SAS 0, SAS 1 Onboard: SATA 0, SATA 1
Connections between connectors:
1 1 , 2 2 , 3 3 , ... n n

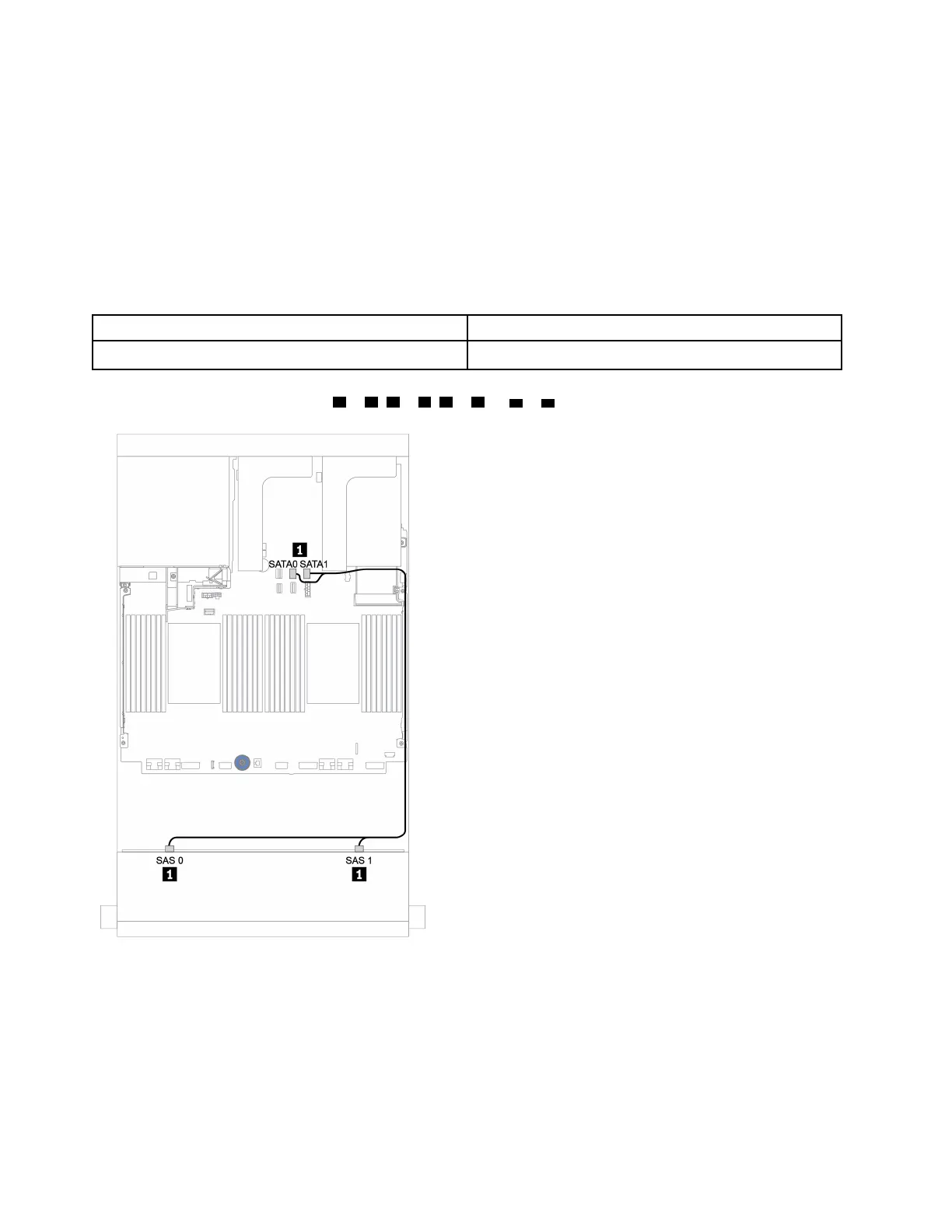

Figure 118. Cable routing for the 8 x 3.5-inch SAS/SATA configuration with onboard connectors
162 ThinkSystem SR650 V2Maintenance Manual
