8i RAID/HBA adapter
The following shows the cable connections for the 8 x 3.5-inch SAS/SATA configuration with one 8i RAID/
HBA adapter.
From To
Backplane 1: SAS 0, SAS 1 8i RAID/HBA adapter on PCIe slot 2:
• Gen 3: C0C1
• Gen 4: C0
Connections between connectors:
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n

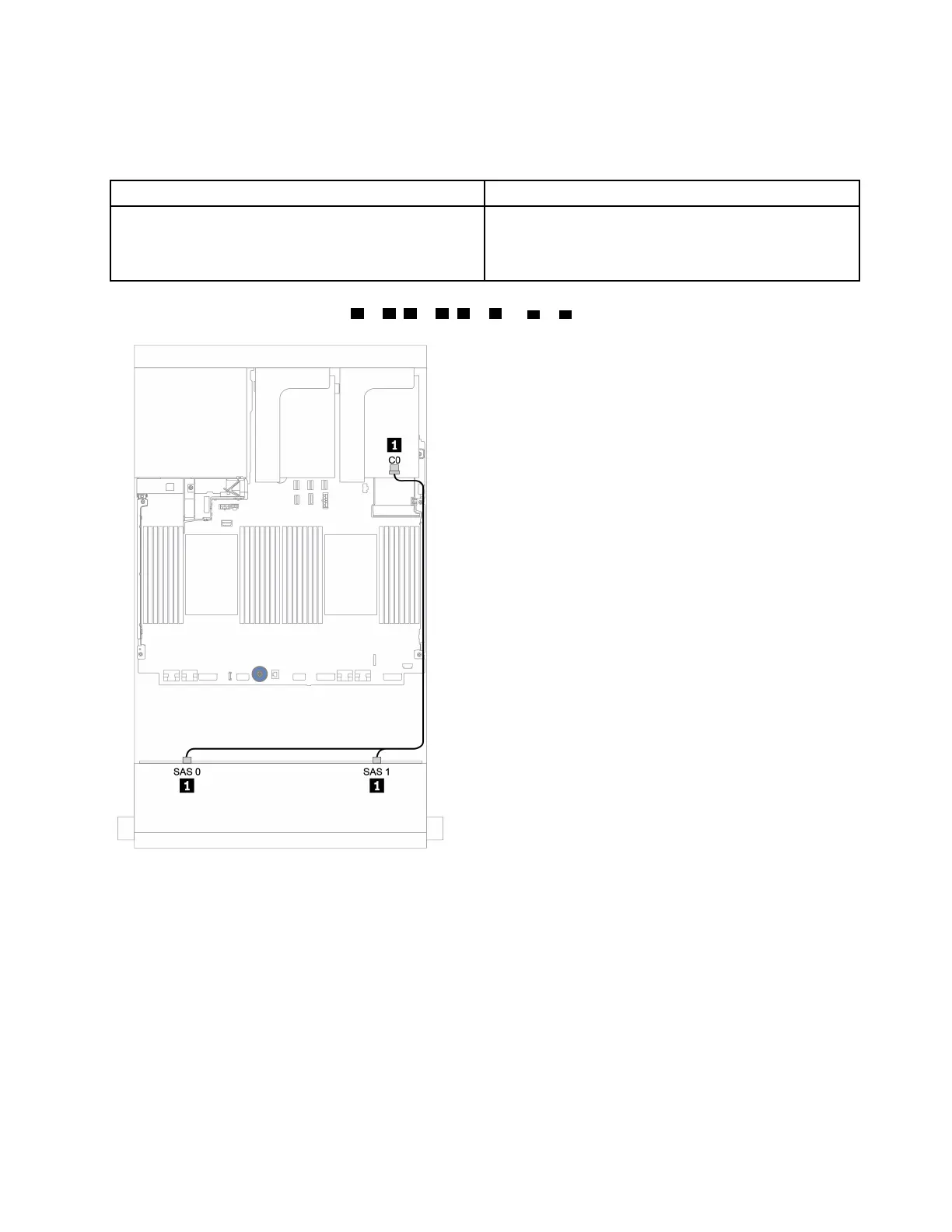

Figure 119. Cable routing for the 8 x 3.5-inch SAS/SATA configuration with one 8i RAID/HBA adapter
Chapter 3. Internal cable routing 163
