Lenovo ThinkSystem SR650 V2 User Manual

Install the 7mm drive backplanes
Use this information to install the 7mm drive backplanes.
About this task
Attention:
• Read “Installation Guidelines” on page 185 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
• Read “PCIe slots and PCIe adapters” on page 189 to ensure that you follow the installation rules for 7mm
drive cages.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DqVplE36HIvdM_sq_Auw3U
• Youku: https://list.youku.com/albumlist/show/id_59643657.html
Procedure
Step 1. Touch the static-protective package that contains the new component to any unpainted surface on
the outside of the server. Then, take the new component out of the package and place it on a
static-protective surface.
Step 2. Connect the cables to the backplanes. See “7mm drives” on page 82.
Step 3. Install the 7mm drive backplane at the bottom.

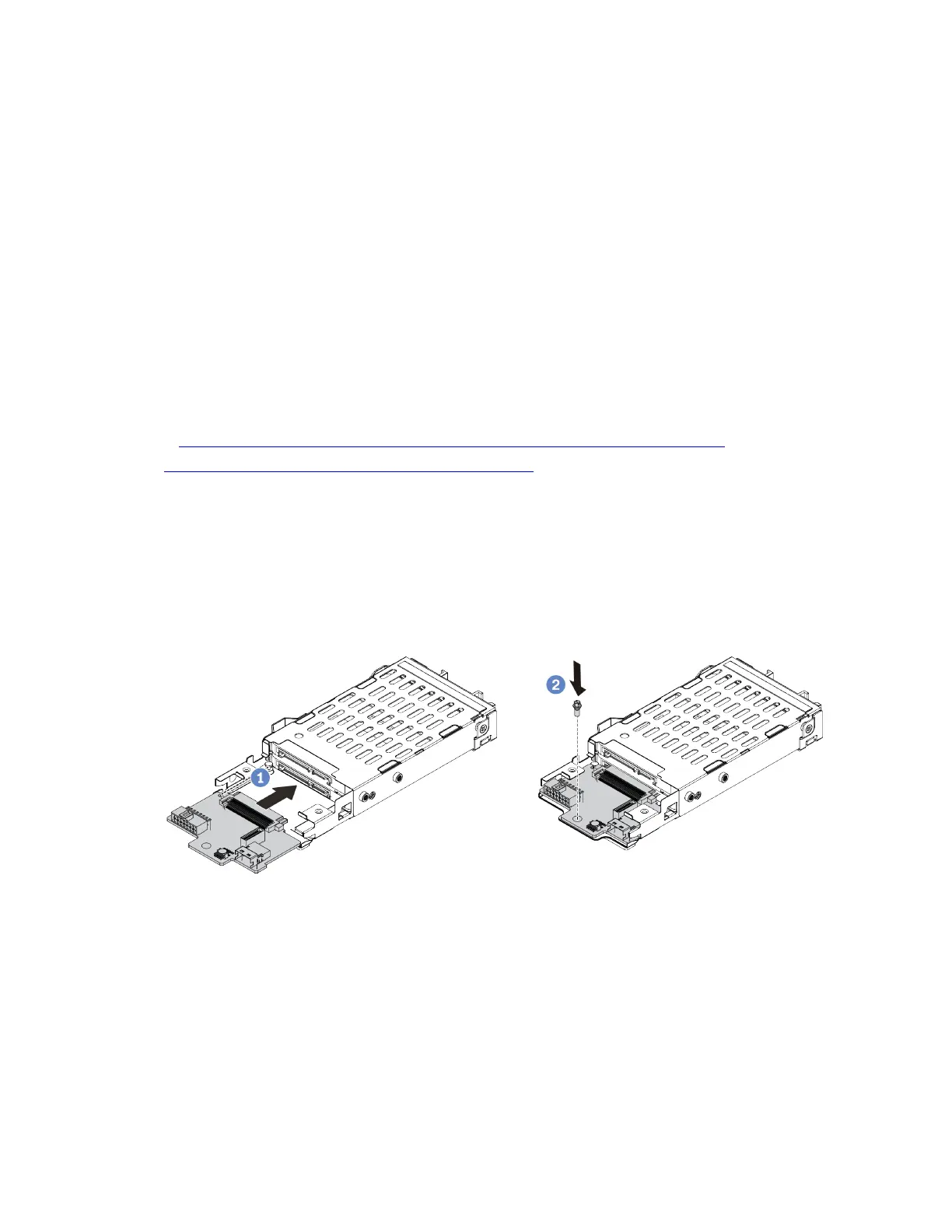

Figure 278. 7mm drive backplane installation (bottom)
a. Align the notch at edge of the backplane with the pin on the cage, and slightly slide the
backplane into the cage until it is fully seated.
b. Install the screw to secure it.
346
ThinkSystem SR650 V2Maintenance Manual

Lenovo ThinkSystem SR650 V2 Specifications

General

Expansion Slots	Up to 7x PCIe 4.0 slots
Form Factor	2U rack server
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Processor	Up to 2x 3rd Generation Intel Xeon Scalable processors, up to 40 cores per processor
Memory	Up to 8TB in 32x slots, using 256GB DDR4 3200MHz DIMMs
Drive Bays	Up to 24 x 2.5" or 12 x 3.5"
Power Supply	Up to 2x hot-swap redundant power supplies, 750W Platinum, or 750W Titanium
Memory Slots	32 DIMM slots
Storage Controller	ThinkSystem RAID 930-8i
Operating System	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
