Lenovo ThinkSystem SR650 V2 User Manual

Step 1. Remove the 7mm drive backplane on the top.

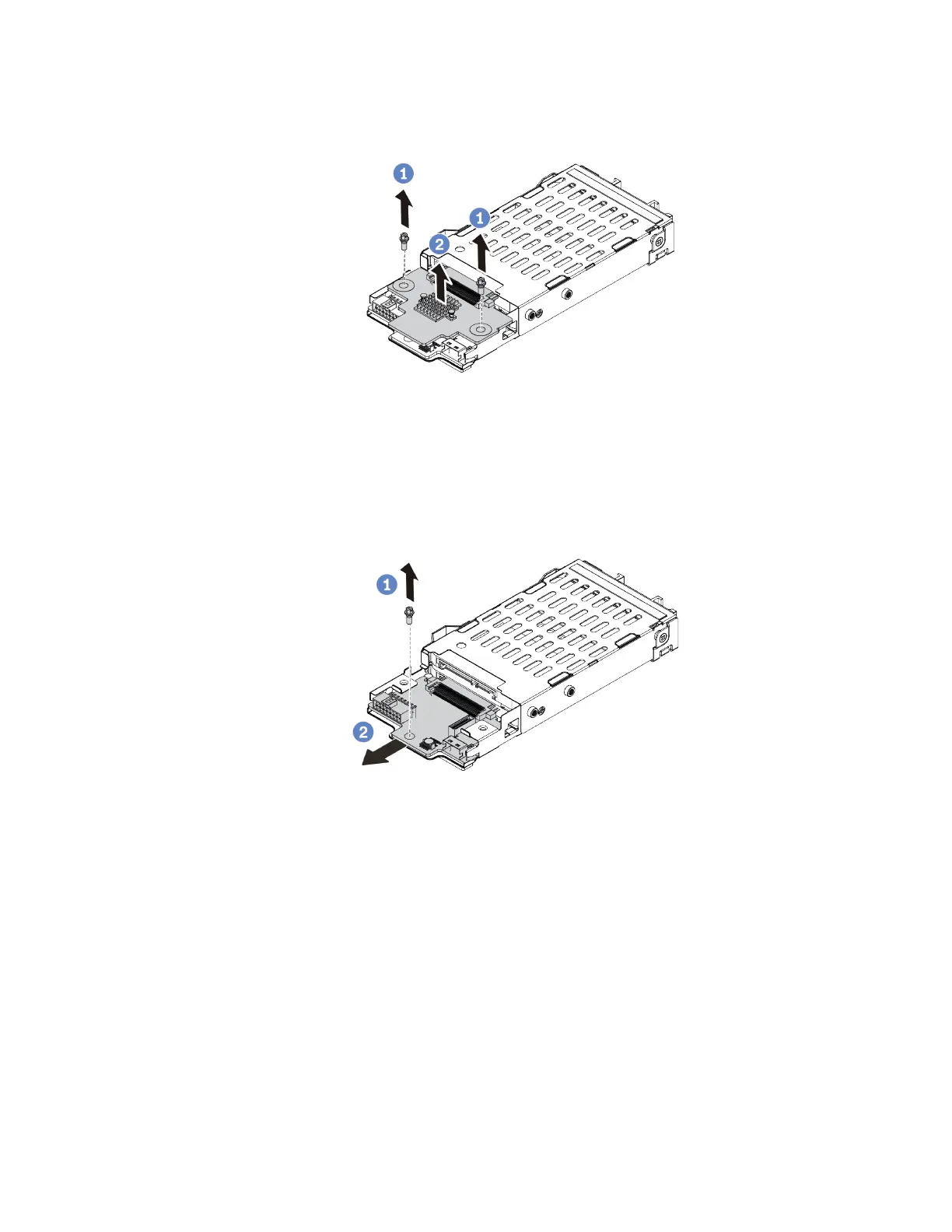

Figure 276. 7mm drive backplane removal (top)
a. Remove the two screws.
b. Vertically lift the backplane up and put it aside.
Step 2. Remove the 7mm drive backplane at the bottom.
Figure 277. 7mm drive backplane removal (bottom)
a. Remove the screw.
b. Remove the backplane horizontally from the cage as shown.
After you finish
1. Do one of the following:
• If you are replacing the backplanes, install new backplanes to the drive cage.
• If you are replacing the drive cage, install the backplanes to a new drive cage.
2. If you are instructed to return the defective component, follow all packaging instructions and use any
packaging materials that are provided.
Chapter 4. Hardware replacement procedures 345

Lenovo ThinkSystem SR650 V2 Specifications

General

Expansion Slots	Up to 7x PCIe 4.0 slots
Form Factor	2U rack server
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Processor	Up to 2x 3rd Generation Intel Xeon Scalable processors, up to 40 cores per processor
Memory	Up to 8TB in 32x slots, using 256GB DDR4 3200MHz DIMMs
Drive Bays	Up to 24 x 2.5" or 12 x 3.5"
Power Supply	Up to 2x hot-swap redundant power supplies, 750W Platinum, or 750W Titanium
Memory Slots	32 DIMM slots
Storage Controller	ThinkSystem RAID 930-8i
Operating System	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
