System board LEDs

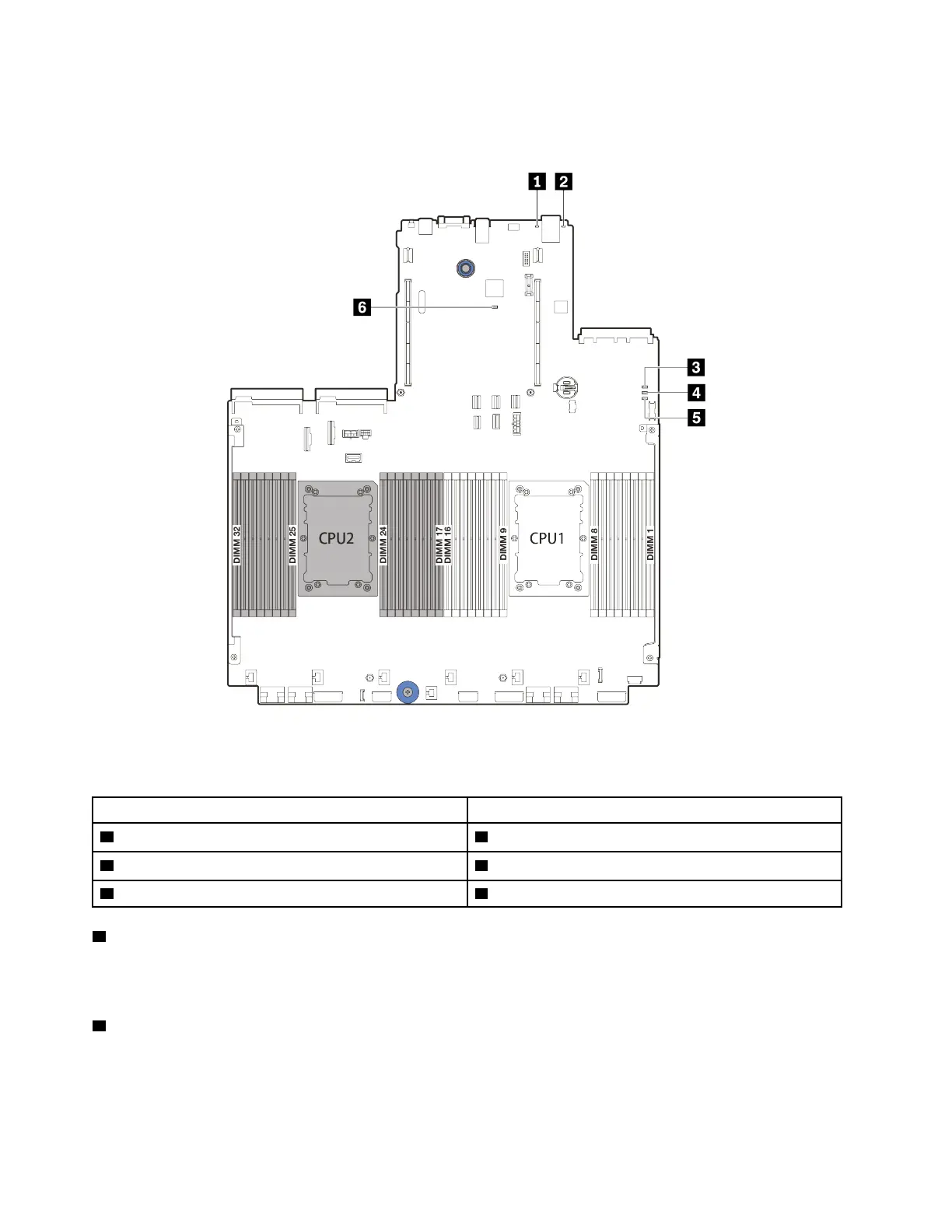

The illustration in this section shows the LEDs on the system board.
Figure 12. System board LEDs
Table 20. LEDs on the system board
Callout Callout
1 System error LED 2 System ID LED
3 FPGA error LED 4 FPGA power LED
5 FPGA heart beat LED 6 BMC heart beat LED
1 System error LED
When this yellow LED is lit, one or more LEDs elsewhere in the server might also be lit to direct you to the
source of the error. For more information, see “Front IO assembly” on page 27.
2 System ID LED
The blue system ID LED helps you to visually locate the server. A system ID LED is also located on the front
of the server. Each time you press the system ID button, the state of both the system ID LEDs changes. The
LEDs can be changed to on, blinking, or off.
56 ThinkSystem SR650 V2Maintenance Manual
