Step 2. Remove the 2.5-inch drive backplane.
Note: Depending on the specific type, your backplane might look different from the illustration.

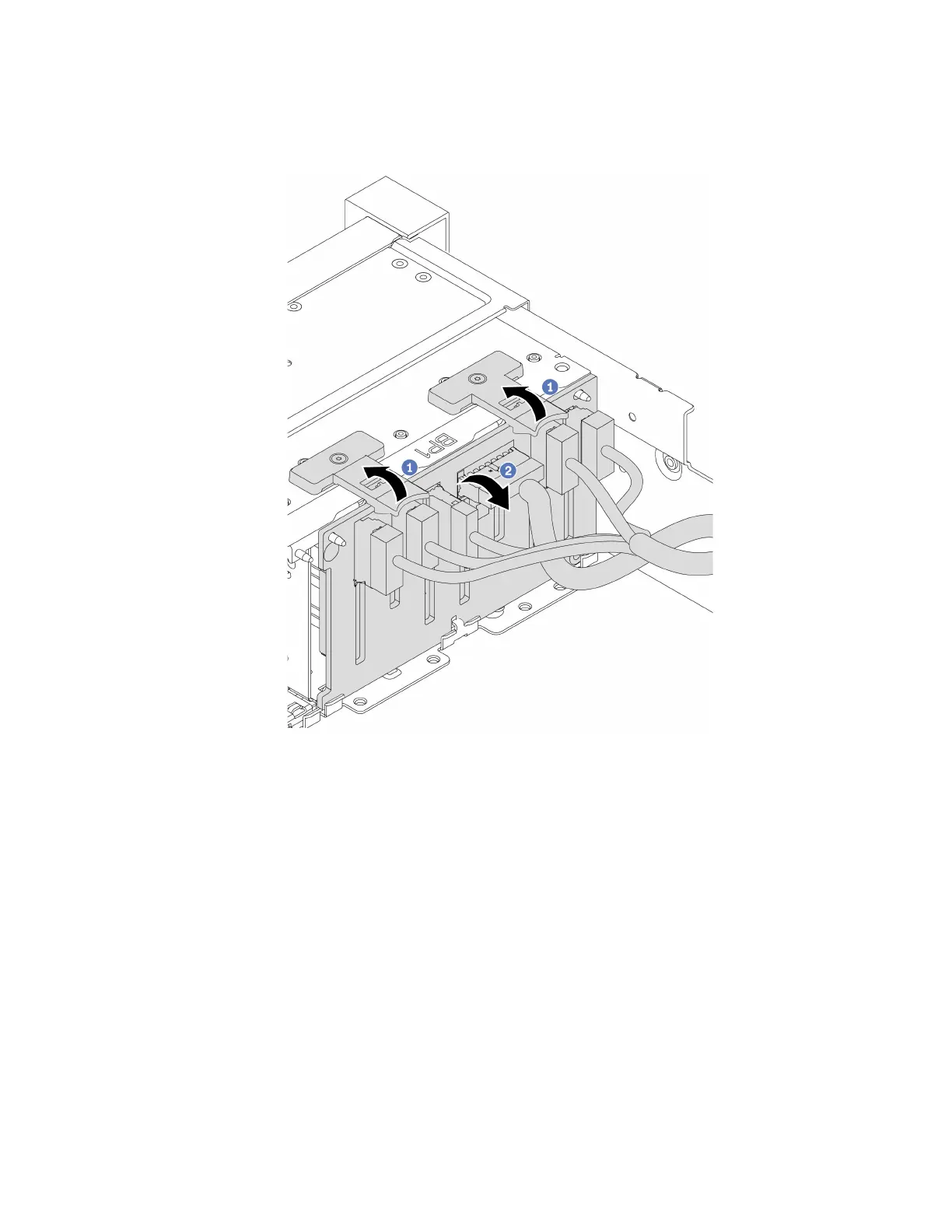

Figure 178. 2.5-inch drive backplane removal
a. Lift the release tabs.
b. Rotate the backplane from the top to disengage it from the two pins on the chassis.
Step 3. Record the cable connections on the backplane and then disconnect all cables from the
backplane.
After you finish
If you are instructed to return the defective component, follow all packaging instructions and use any
packaging materials that are provided.
Install the front 2.5-inch drive backplane
Use this information to install the front 2.5-inch drive backplane.
About this task
230 ThinkSystem SR650 V2Maintenance Manual

Lenovo ThinkSystem SR650 V2 Specifications

General

Expansion Slots	Up to 7x PCIe 4.0 slots
Form Factor	2U rack server
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Processor	Up to 2x 3rd Generation Intel Xeon Scalable processors, up to 40 cores per processor
Memory	Up to 8TB in 32x slots, using 256GB DDR4 3200MHz DIMMs
Drive Bays	Up to 24 x 2.5" or 12 x 3.5"
Power Supply	Up to 2x hot-swap redundant power supplies, 750W Platinum, or 750W Titanium
Memory Slots	32 DIMM slots
Storage Controller	ThinkSystem RAID 930-8i
Operating System	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
