Lenovo ThinkSystem SR650 V2 User Manual

Rear view LEDs

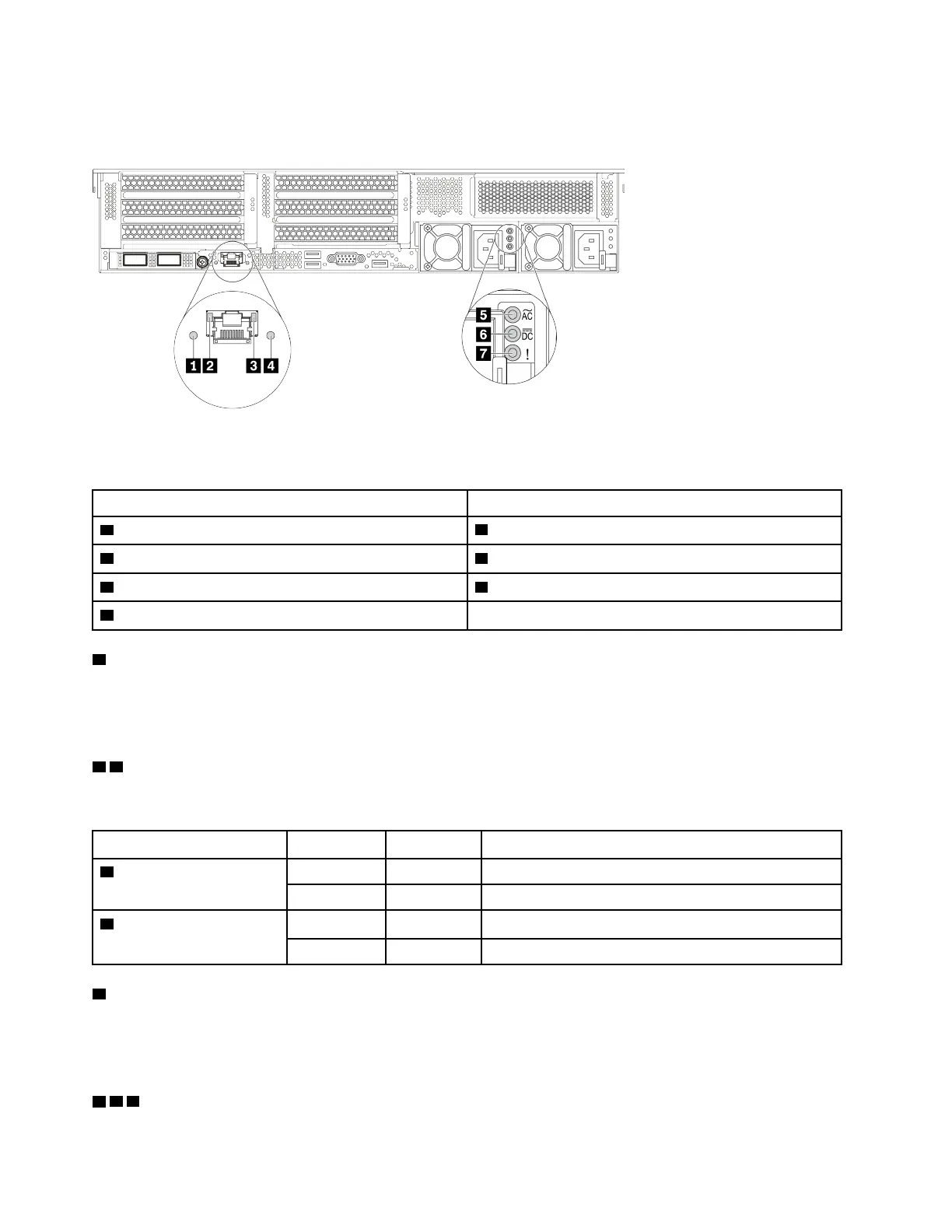

The illustration in this section shows the LEDs on the rear of the server.
Figure 10. Rear view LEDs of the server
Table 19. LEDs on the rear of the server
Callout Callout
1 System ID LED
2 Ethernet link LED
3 Ethernet activity LED
4 System error LED
5 Power input LED 6 Power output LED
7 Power supply error LED
1 System ID LED
The blue system ID LED helps you to visually locate the server. A system ID LED is also located on the front
of the server. Each time you press the system ID button, the state of both the system ID LEDs changes. The
LEDs can be changed to on, blinking, or off.
2 3 Ethernet status LEDs
The BMC management connector has two status LEDs.
Ethernet status LED
Color Status
Description
2 Ethernet link LED Green On Network link is established.
None Off Network link is disconnected.
3 Ethernet activity LED Green Blinking Network link is connected and active.
None
Off The server is disconnected from a LAN.
4 System error LED
The system error LED provides basic diagnostic functions for your server. If the system error LED is lit, one or
more LEDs elsewhere in the server might also be lit to direct you to the source of the error. For more
information, see “Front IO assembly” on page 27.
5 6 7 Power supply LEDs
52
ThinkSystem SR650 V2Maintenance Manual

Lenovo ThinkSystem SR650 V2 Specifications

General

Expansion Slots	Up to 7x PCIe 4.0 slots
Form Factor	2U rack server
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Processor	Up to 2x 3rd Generation Intel Xeon Scalable processors, up to 40 cores per processor
Memory	Up to 8TB in 32x slots, using 256GB DDR4 3200MHz DIMMs
Drive Bays	Up to 24 x 2.5" or 12 x 3.5"
Power Supply	Up to 2x hot-swap redundant power supplies, 750W Platinum, or 750W Titanium
Memory Slots	32 DIMM slots
Storage Controller	ThinkSystem RAID 930-8i
Operating System	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
