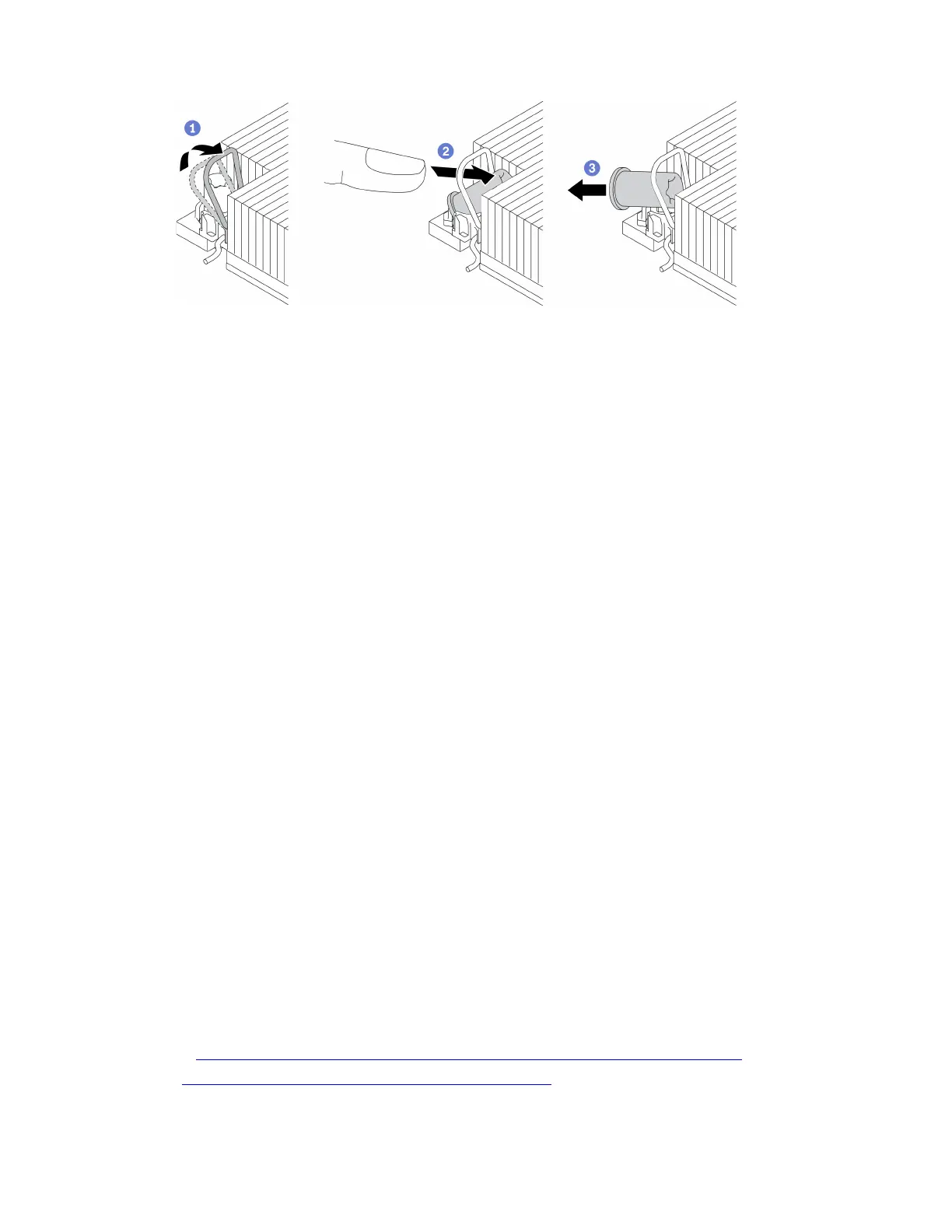

Figure 170. Removing a Torx T30 nut from the heat sink
Note: Do not touch the gold contacts on the bottom of the processor.
a. Rotate the anti-tilt wire bail inwards.
b. Push the upper edge of the Torx T30 nut towards the center of the heat sink until it
disengages.
c. Remove the Torx T30 nut.
Attention: Visually inspect the removed Torx T30 nut, if the nut is cracked or damaged, make
sure no debris or broken pieces are left inside your server.
After you finish
1. Install a new Torx T30 nut. See “Install a heat sink Torx T30 nut” on page 223.
2. If you are instructed to return the defective component, follow all packaging instructions and use any
packaging materials that are provided.
Install a heat sink Torx T30 nut
This task has instructions for installing a PEEK (Polyether ether ketone) Torx T30 nut on the heat sink.
About this task
Attention:
• Read “Installation Guidelines” on page 185 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
• Do not touch the processor contacts. Contaminants on the processor contacts, such as oil from your skin,
can cause connection failures.
Note: The heat sink, processor, and processor carrier for your system might be different from those shown
in the illustrations.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DqVplE36HIvdM_sq_Auw3U
• Youku: https://list.youku.com/albumlist/show/id_59643657.html
Procedure
Chapter 4. Hardware replacement procedures 223
