Lenovo ThinkSystem SR650 V2 User Manual

CFF 16i RAID/HBA adapter + 8i RAID adapter (Trimode)
The following shows the cable connections for the 8 x 2.5-inch SAS/SATA + 8 x 2.5-inch Anybay
configuration with one CFF 16i RAID/HBA adapter and one Trimode 8i RAID adapter for U.3 drives.
From To
Backplane 1: SAS CFF 16i RAID/HBA adapter: C0, C1
CFF 16i RAID/HBA adapter: MB Onboard: PCIe 3
CFF 16i RAID/HBA adapter: PWR Onboard: RAID PWR
Backplane 2: SAS Trimode 8i RAID adapter on PCIe slot 2: C0
Connections between connectors:
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n

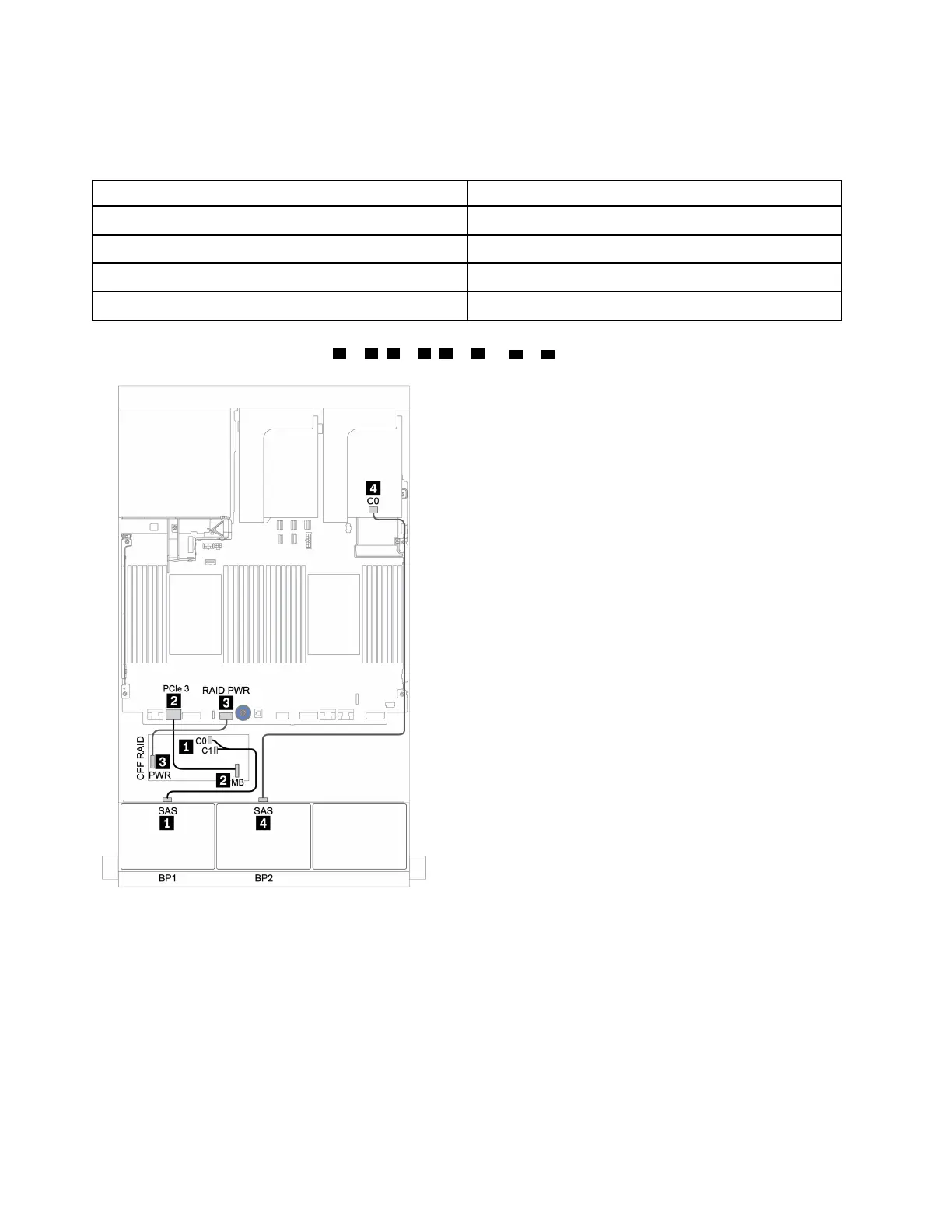

Figure 95. Cable routing for the 8 x 2.5-inch SAS/SATA + 8 x 2.5-inch Anybay configuration with one CFF 16i RAID/HBA
adapter and one Trimode 8i RAID adapter
8 x SAS/SATA and 16 x Anybay front drive bays
This section provides cable routing information for the server model with 8 x SAS/SATA and 16 x Anybay
front drive bays.
• “8i/16i RAID/HBA adapter + 8i RAID adapters (Trimode)” on page 141
• “8i/16i RAID/HBA adapter + 16i RAID adapter (Trimode)” on page 142
140
ThinkSystem SR650 V2Maintenance Manual

Lenovo ThinkSystem SR650 V2 Specifications

General

Expansion Slots	Up to 7x PCIe 4.0 slots
Form Factor	2U rack server
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Processor	Up to 2x 3rd Generation Intel Xeon Scalable processors, up to 40 cores per processor
Memory	Up to 8TB in 32x slots, using 256GB DDR4 3200MHz DIMMs
Drive Bays	Up to 24 x 2.5" or 12 x 3.5"
Power Supply	Up to 2x hot-swap redundant power supplies, 750W Platinum, or 750W Titanium
Memory Slots	32 DIMM slots
Storage Controller	ThinkSystem RAID 930-8i
Operating System	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
