Lenovo ThinkSystem SR650 V2 User Manual

Install the system fan cage
Use this information to install the system fan cage.
About this task
Attention:
• Read “Installation Guidelines” on page 185 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DqVplE36HIvdM_sq_Auw3U
• Youku: https://list.youku.com/albumlist/show/id_59643657.html
Procedure

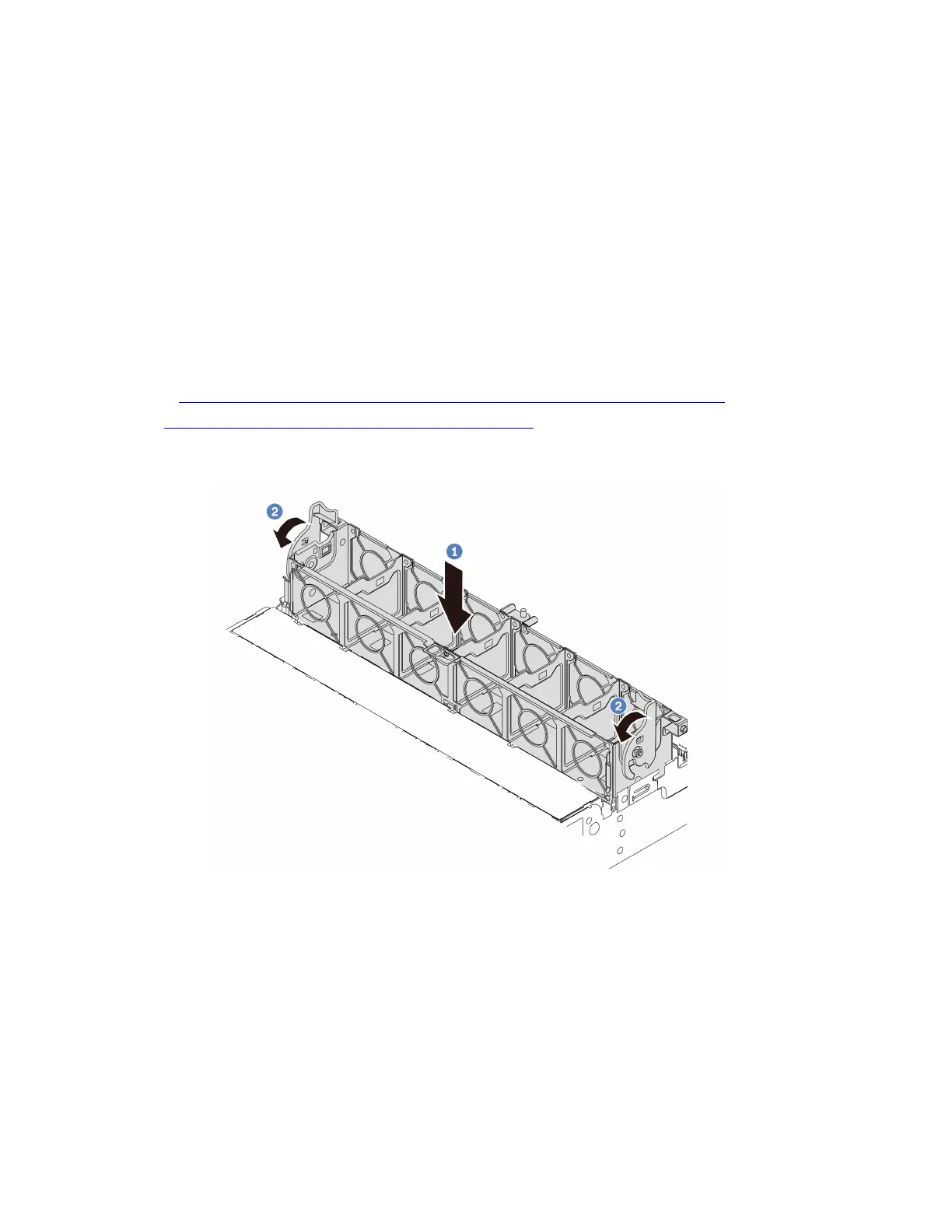

Figure 293. System fan cage installation
Step 1. Align the system fan cage with the mounting guides on both sides of chassis, and lower it into the
chassis.
Step 2. Rotate the fan cage levers down until the fan cage clicks into place.
Note: If there are system fans installed in the system fan cage, ensure that the system fans are
correctly connected to the system fan connectors on the system board.
After you finish
370 ThinkSystem SR650 V2Maintenance Manual

Lenovo ThinkSystem SR650 V2 Specifications

General

Expansion Slots	Up to 7x PCIe 4.0 slots
Form Factor	2U rack server
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Processor	Up to 2x 3rd Generation Intel Xeon Scalable processors, up to 40 cores per processor
Memory	Up to 8TB in 32x slots, using 256GB DDR4 3200MHz DIMMs
Drive Bays	Up to 24 x 2.5" or 12 x 3.5"
Power Supply	Up to 2x hot-swap redundant power supplies, 750W Platinum, or 750W Titanium
Memory Slots	32 DIMM slots
Storage Controller	ThinkSystem RAID 930-8i
Operating System	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
