Lenovo ThinkSystem SR650 V2 User Manual

Install the full-height cable wall brackets
Use this information to install the full-height cable wall brackets.
About this task
Attention:
• Read “Installation Guidelines” on page 185 to ensure that you work safely.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DqVplE36HIvdM_sq_Auw3U
• Youku: https://list.youku.com/albumlist/show/id_59643657.html
Procedure

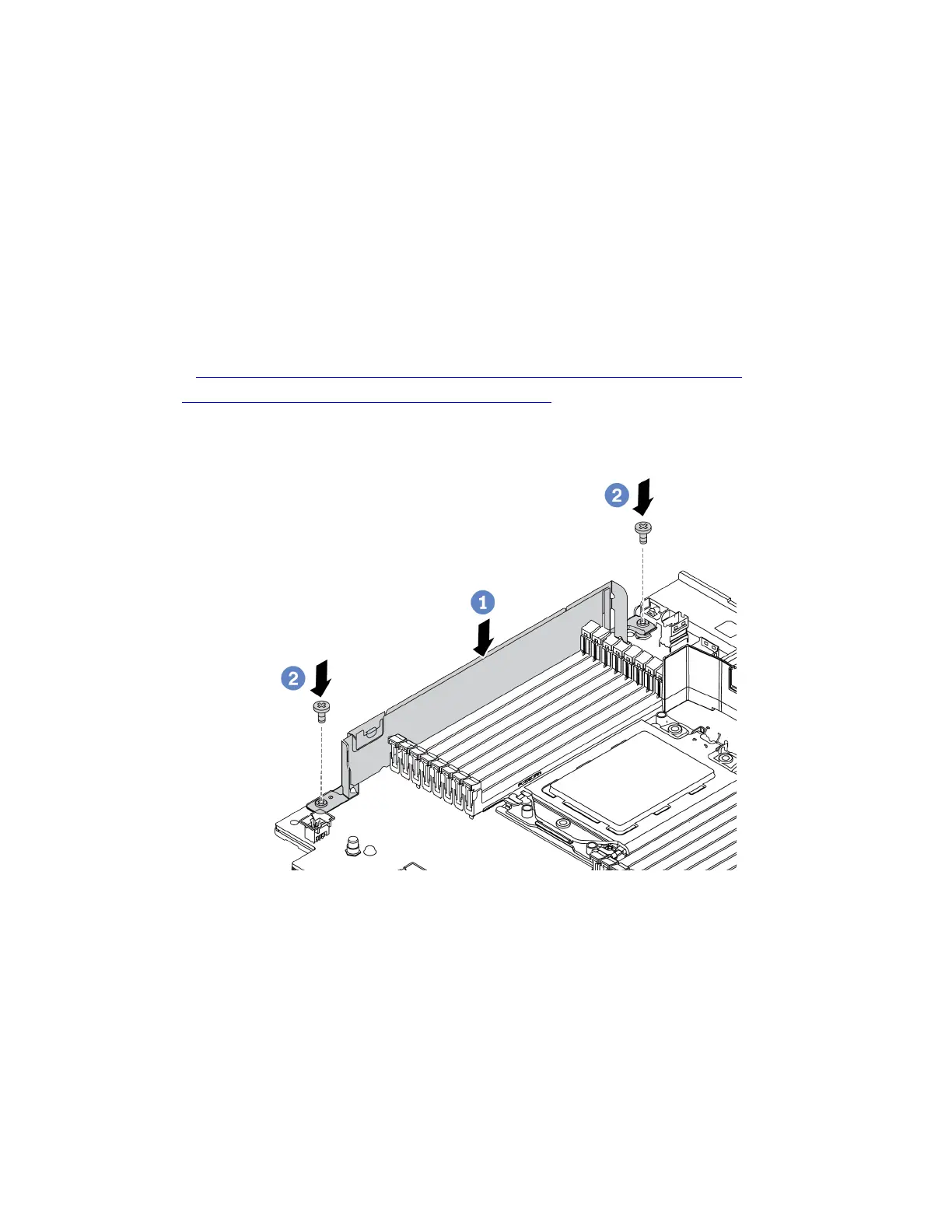

Figure 153. Cable wall brackets installation
Step 1. Align the cable wall brackets with the two holes on the system board. Install the brackets onto the
system board.
Step 2. Install the two screws to secure the brackets.
After you finish
1. Install any parts you have removed. See Chapter 4 “Hardware replacement procedures” on page 185.
2. Connect any cables. See Chapter 3 “Internal cable routing” on page 71.
3. Complete the parts replacement. See “Complete the parts replacement” on page 381.
Chapter 4. Hardware replacement procedures 203

Lenovo ThinkSystem SR650 V2 Specifications

General

Expansion Slots	Up to 7x PCIe 4.0 slots
Form Factor	2U rack server
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Processor	Up to 2x 3rd Generation Intel Xeon Scalable processors, up to 40 cores per processor
Memory	Up to 8TB in 32x slots, using 256GB DDR4 3200MHz DIMMs
Drive Bays	Up to 24 x 2.5" or 12 x 3.5"
Power Supply	Up to 2x hot-swap redundant power supplies, 750W Platinum, or 750W Titanium
Memory Slots	32 DIMM slots
Storage Controller	ThinkSystem RAID 930-8i
Operating System	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
