Step 4. Remove the super capacitor module.

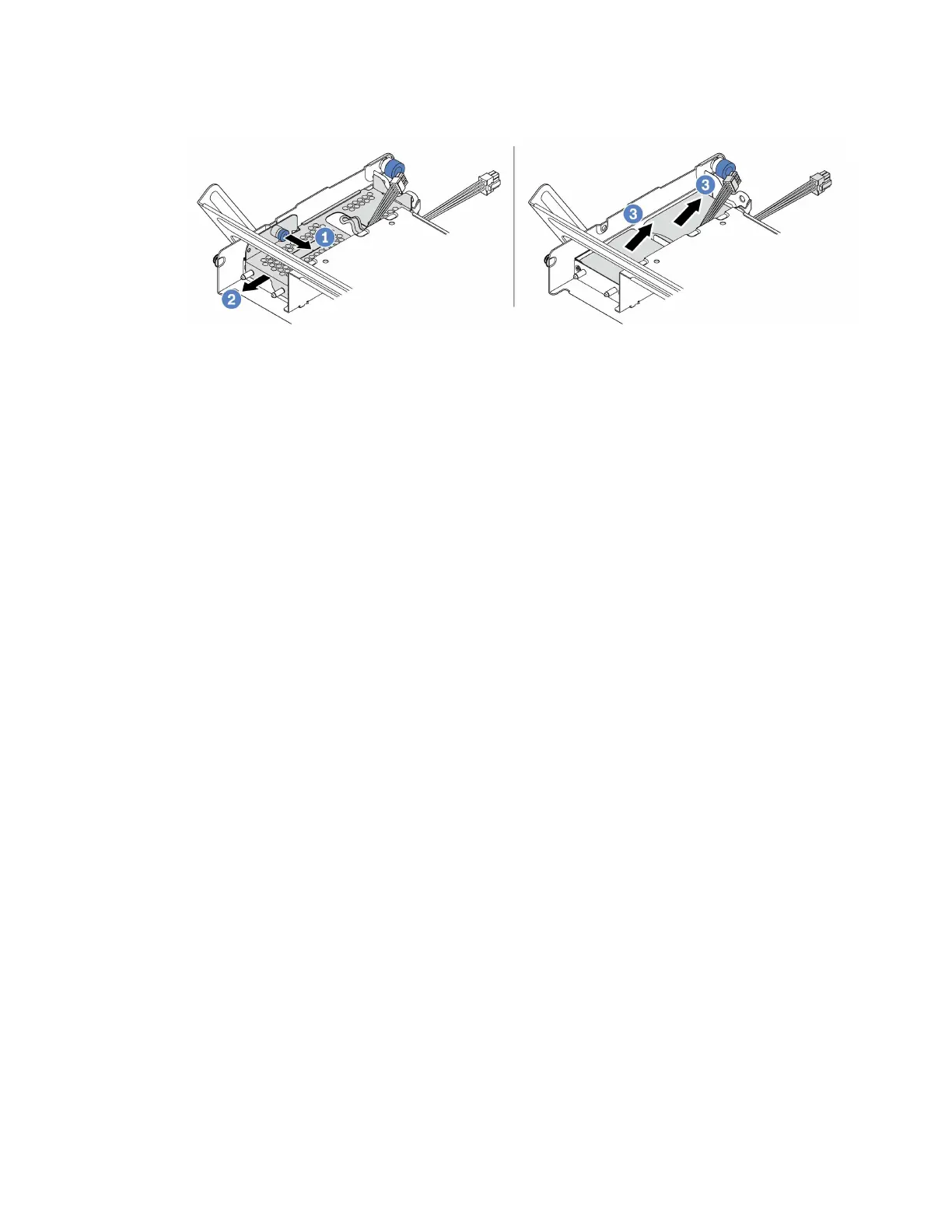

Figure 249. Removing the super capacitor module
a. Pull out the blue latch on the super capacitor cover.
b. Slide the cover out of the holder.
c. Take the super capacitor module out of the holder.
After you finish
If you are instructed to return the defective component, follow all packaging instructions and use any
packaging materials that are provided.
